Crestron X Series Quick Start Manual
Media presentation amplifier
Hide thumbs
Also See for X Series:
- Product manual (48 pages) ,
- Quick start manual (17 pages) ,
- Quick start manual (4 pages)
Table of Contents
Advertisement
Quick Links

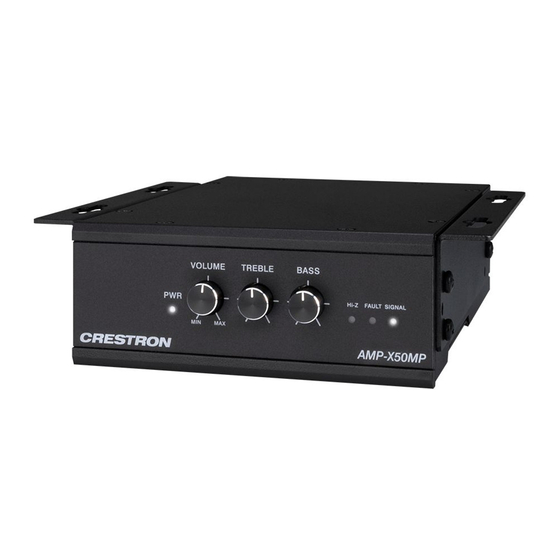

AMP-X50MP
X-Series Media Presentation Amplifier
The Crestron®
AMP-X50MP
amplifier for media presentation systems.
In the Box
1
AMP-X50MP, Media Presentation Audio Amplifier
Additional Items
1
Connector, Speaker, 6-position
1
Connector, Input, 5-position
1
Connector, Remote, 2-position
4
Anchors
4
Screws, Mounting
4
Foot, Adhesive, Black
1
Power Supply
is a compact, efficient stereo
Install

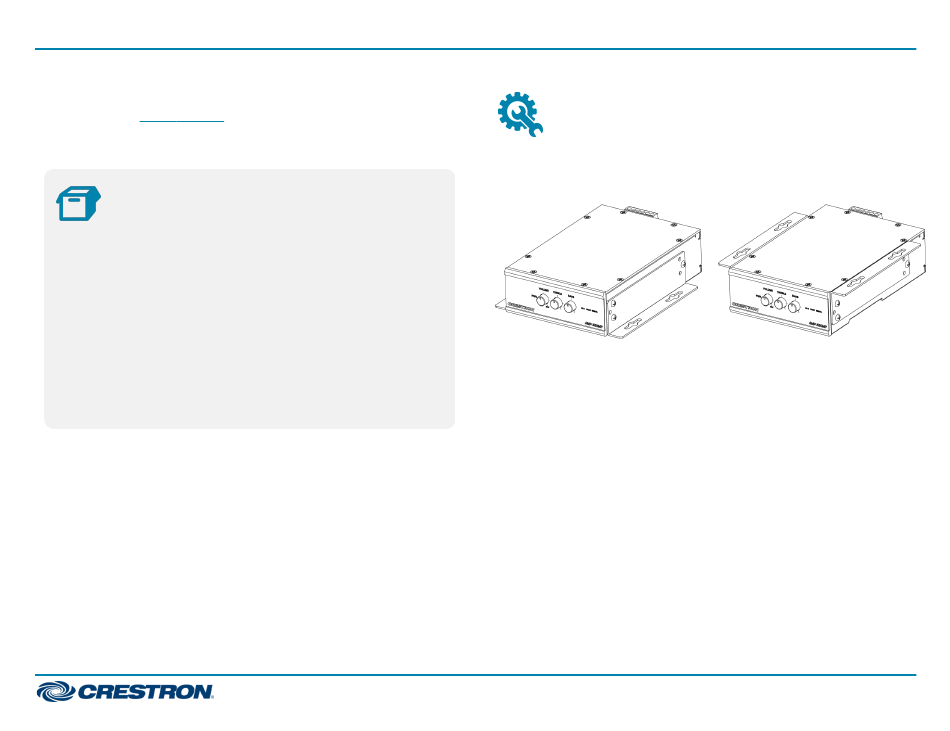

The amplifier can be mounted or placed on a surface. The
attached brackets can be removed or reversed for use in any
installation.
Surface Mount
Use the included mounting screws and anchors to mount the
amplifier on a surface.
Surface Placement
Attach the included feet to the amplifier if it is to be placed
on a flat surface.
Quick Start
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Crestron X Series
Summary of Contents for Crestron X Series
- Page 1 Quick Start AMP-X50MP X-Series Media Presentation Amplifier The Crestron® AMP-X50MP is a compact, efficient stereo Install amplifier for media presentation systems. The amplifier can be mounted or placed on a surface. The attached brackets can be removed or reversed for use in any installation.
- Page 2 Quick Start AMP-X50MP X-Series Media Presentation Amplifier Connect Make the necessary connections as called out in the following diagrams. Connect power last. CAUTIONS: Keep the device unplugged until all of the input and speaker wiring is complete. Check the speaker wires for shorts and frayed wiring around the speaker output connector.
- Page 3 Quick Start AMP-X50MP X-Series Media Presentation Amplifier...
- Page 4 Quick Start AMP-X50MP X-Series Media Presentation Amplifier Input Wiring LoZ Operation When the amplifier is set to LoZ operation (4 ohm or 8 ohm), The amplifier inputs can be wired for stereo or mono audio the MONO/STEREO switch affects the input signals as fol- using balanced and unbalanced connections.
- Page 5 Quick Start AMP-X50MP X-Series Media Presentation Amplifier Speaker Connection High Impedance (70 V, Mono Only) The amplifier can be configured for low impedance (4/8 Ω) or high impedance (70 V or 100 V) operation. Refer to the following diagrams: Low Impedance (4/8 Ω, Mono or Stereo) ALS OUT The ALS OUT port provides a fixed audio output that pre- serves left and right channel separation for use with assisted...
- Page 6 Quick Start AMP-X50MP X-Series Media Presentation Amplifier Block Diagram Refer to the following diagram for details on stereo, summed, LoZ, and Hi-Z signal flows.
- Page 7 Quick Start AMP-X50MP X-Series Media Presentation Amplifier Operate Configure Once the amplifier has been wired and configured, it is ready Hi-Z/LoZ Switch for operation. The amplifier can be configured to work with 4/8 Ω low Apply Power impedance (LoZ) loads or a distributed audio high impedance (Hi-Z) 70/100 V system.
