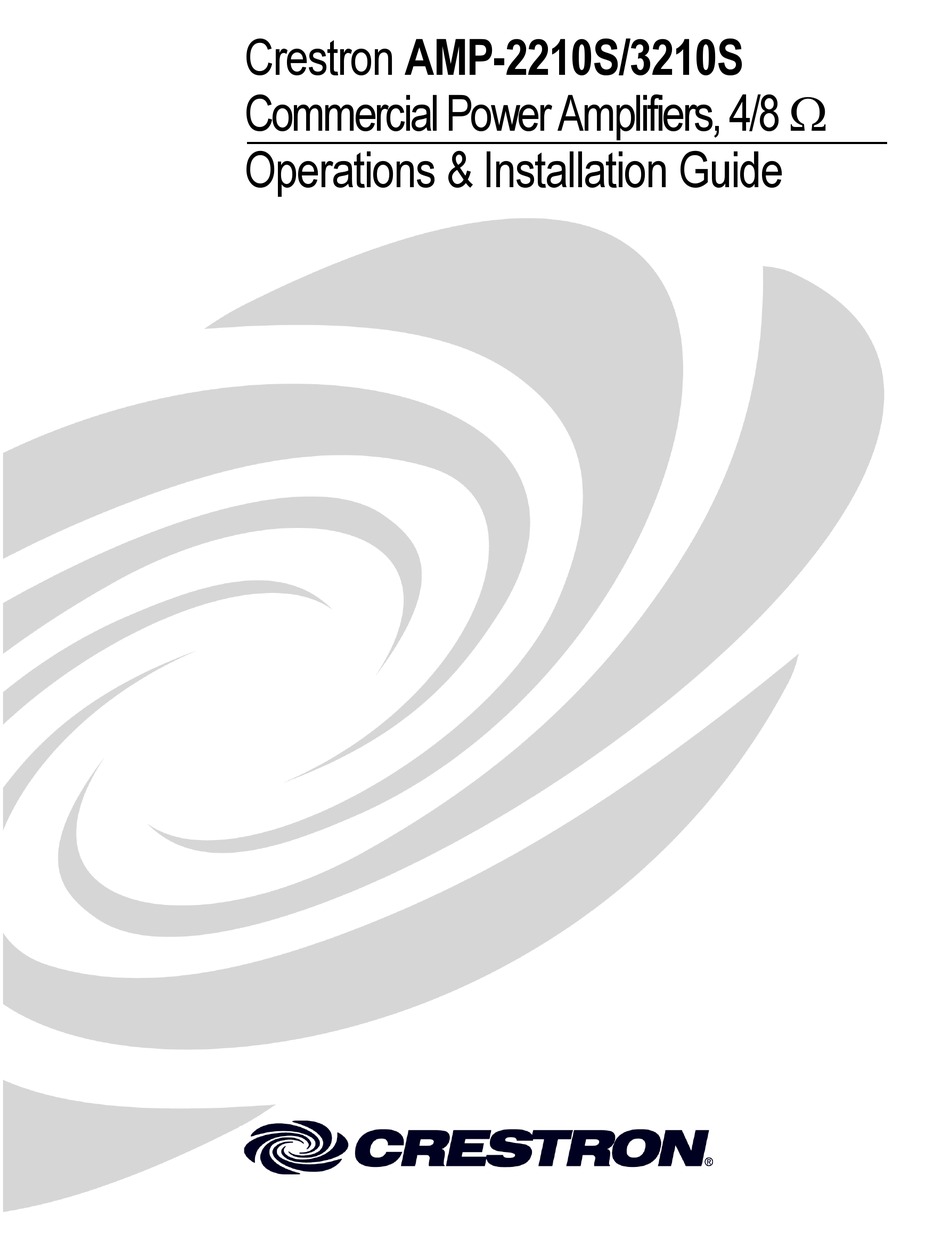

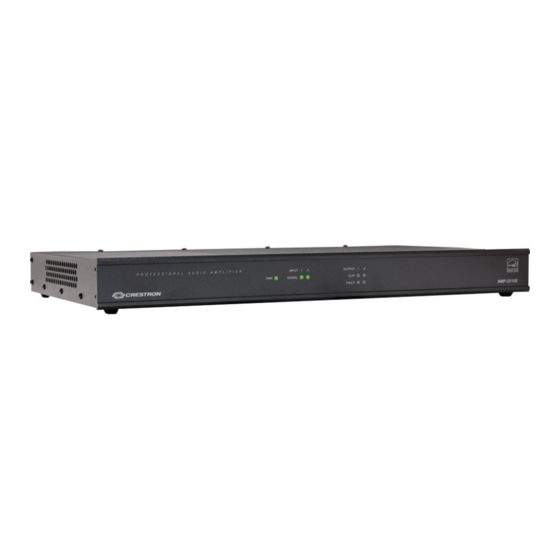

- Page 1 Crestron AMP-2210S/3210S Commercial Power Amplifiers, 4/8 Operations & Installation Guide...
- Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN AVIS: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR...
-
Page 3: Regulatory Compliance
Crestron disclaims any proprietary interest in the marks and names of others. ©2011 Crestron Electronics, Inc. -
Page 5: Table Of Contents
Crestron AMP-2210S/3210S Commercial Power Amplifiers Contents Commercial Power Amplifiers, 4/8: AMP-2210S/3210S Introduction ..........................1 Features and Functions ....................1 Applications......................... 3 Specifications ......................3 Physical Description....................5 Setup ............................9 Installation ........................9 Hardware Hookup ..................... 11 Operation ..........................13 Problem Solving ........................ -
Page 7: Commercial Power Amplifiers, 4/8: Amp-2210S/3210S
1U rack-mountable chassis. The AMP-2210S provides two channels of amplification (the AMP-3210S provides three). Each channel is rated for 210W @ 4Ω or 120W @ 8Ω, and channels 1 and 2 may be bridged together to deliver a robust 420W @ 8Ω... - Page 8 Their efficient, cool running design gives off substantially less heat than comparably rated amplifiers. Convection cooling means there are no noisy fans, allowing the AMP-2210S/3210S to be installed in a boardroom lectern or credenza without affecting noise levels.
-
Page 9: Applications
Crestron AMP-2210S/3210S Commercial Power Amplifiers Applications The following diagram shows an AMP-2210S/3210S in a basic application. AMP-2210S/3210S in a Basic Application (AMP-3210S Shown) Specifications Specifications for the AMP-2210S/3210S are listed in the following table. AMP-2210S/3210S Specifications SPECIFICATION DETAILS Audio Typical of mono amplifier... - Page 10 1/8 power; 121 BTU/Hr @ 4 Ohms, all channels driven at 1/8 power; 89 BTU/Hr, all channels idle; <3.4 BTU/Hr in standby (Continued on following page) 4 Commercial Power Amplifiers: AMP-2210S/3210S Operations & Installation Guide – DOC. 7251A...
-
Page 11: Physical Description
Physical Description This section provides information on the connections, controls and indicators available on your AMP-2210S/3210S. AMP-2210S Physical View (Front) AMP-2210S Physical View (Rear) AMP-3210S Physical View (Front) Commercial Power Amplifiers: AMP-2210S/3210S 5 Operations & Installation Guide – DOC. 7251A... - Page 12 Commercial Power Amplifiers Crestron AMP-2210S/3210S AMP-3210S Physical View (Rear) AMP-2210S/3210S Overall Dimensions (AMP-3210S Shown) 6 Commercial Power Amplifiers: AMP-2210S/3210S Operations & Installation Guide – DOC. 7251A...
-
Page 13: Connectors/Controls/Indicators
Provides (3) remote control inputs (2 on 2210S); Enables independent power control of each channel via local jumpers or remote contact closures; Inputs may be safely paralleled for global control (Continued on following page) Commercial Power Amplifiers: AMP-2210S/3210S 7 Operations & Installation Guide – DOC. 7251A... - Page 14 Commercial Power Amplifiers Crestron AMP-2210S/3210S AMP-2210S/3210S Connectors, Controls & Indicators (Continued) CONNECTORS*, DESCRIPTION CONTROLS & INDICATORS ON/REMOTE/OFF (1) 3-position slide switch; Selects between all channels powered on, off, or remote controlled 110-240V~50/60Hz (1) IEC C14 male chassis plug, main power 120W MAX input;...
-
Page 15: Setup
Rack Mounting The AMP-2210S/3210S can be mounted in a rack or stacked with other equipment. Two “ears” are provided with the AMP-2210S/3210S so that the unit can be rack mounted. These ears must be installed prior to mounting. Complete the following procedure to attach the ears to the unit. - Page 16 Stacking Four “feet” are provided with the AMP-2210S/3210S so that if the unit is not rack mounted, the rubber feet can provide stability when the unit is placed on a flat surface or stacked. These feet should be attached prior to the hookup procedure.
-
Page 17: Hardware Hookup
Signal - Jumper Fuse Replacement If the AMP-2210S/3210S does not power up when it is plugged into an AC outlet, the fuse may need to be replaced. The fuse holder is located on the rear panel. To replace the fuse: CAUTION: Use only time lag type fuses, T6.3AH / 250 Volts. -
Page 18: Bridging Inputs/Outputs
NOTE: The minimum allowable load impedance in bridged mode is 8 Ohms. NOTE: When operating in bridged mode, the CLIPPING and FAULT LEDs for each channel continue to operate independently. 12 Commercial Power Amplifiers: AMP-2210S/3210S Operations & Installation Guide – DOC. 7251A... -
Page 19: Operation
CH LEVEL knob to reduce the signal level to eliminate the clipping condition. If an OUTPUT FAULT LED is on (red), eliminate the cause of the fault condition before continuing. Commercial Power Amplifiers: AMP-2210S/3210S 13 Operations & Installation Guide – DOC. 7251A... -
Page 20: Problem Solving
Crestron Web site (www.crestron.com) for a listing of Crestron worldwide offices. You can also log onto the online help section of the Crestron Web site (www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features. -
Page 21: Return And Warranty Policies
Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any. CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended or if it has been subjected to misuse, accidental damage, modification or improper installation procedures. - Page 22 Commercial Power Amplifiers Crestron AMP-2210S/3210S This page is intentionally left blank. 16 Commercial Power Amplifiers: AMP-2210S/3210S Operations & Installation Guide – DOC. 7251A...
- Page 23 Crestron AMP-2210S/3210S Commercial Power Amplifiers This page is intentionally left blank. Commercial Power Amplifiers: AMP-2210S/3210S 17 Operations & Installation Guide – DOC. 7251A...
- Page 24 Crestron Electronics, Inc Operations & Installation Guide – DOC. 7251A 15 Volvo Drive Rockleigh, NJ 07647 (2031866) Tel: 888.CRESTRON 09.11 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
