AMP-2800 and AMP-4600
Crestron® Multichannel Commercial Amplifiers

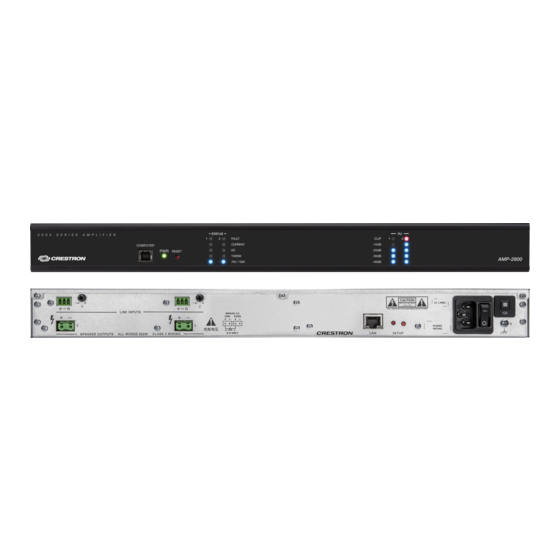

The Crestron®
AMP-2800
and
AMP-4600
multichannel power amplifiers offering excellent sound quality for use
with long runs of multiple high-impedance loudspeakers requiring high
total power output, or with loudspeakers capable of high power handling,
such as Crestron's Vector™ Performance series.
The AMP-2800 and AMP-4600 feature similar operation. For simplicity
within this guide, the term "amplifier" is used for both models except
where noted.
In the Box
1
AMP-2800 or AMP-4600, Multichannel Commercial Amplifier
Additional Items
2
Bracket, Rack Ear, 1U (2032123)
2
Bracket, Rear Mounting (2045677)
1
Cable, Power (P/N varies by country)
6
Screw, 4B x 1/4 in., Pan Head, Phillips (2007195)
AMP-2800 Only
2
Connector, 2-Pin (2044402)
2
Connector, 3-Pin (2003575)
AMP-4600 Only
4
Connector, 2-Pin (2044402)
4
Connector, 3-Pin (2003575)
are high-power, high-efficiency
Install the Device
These devices occupy 1U of rack space.
To install the included rack ears:

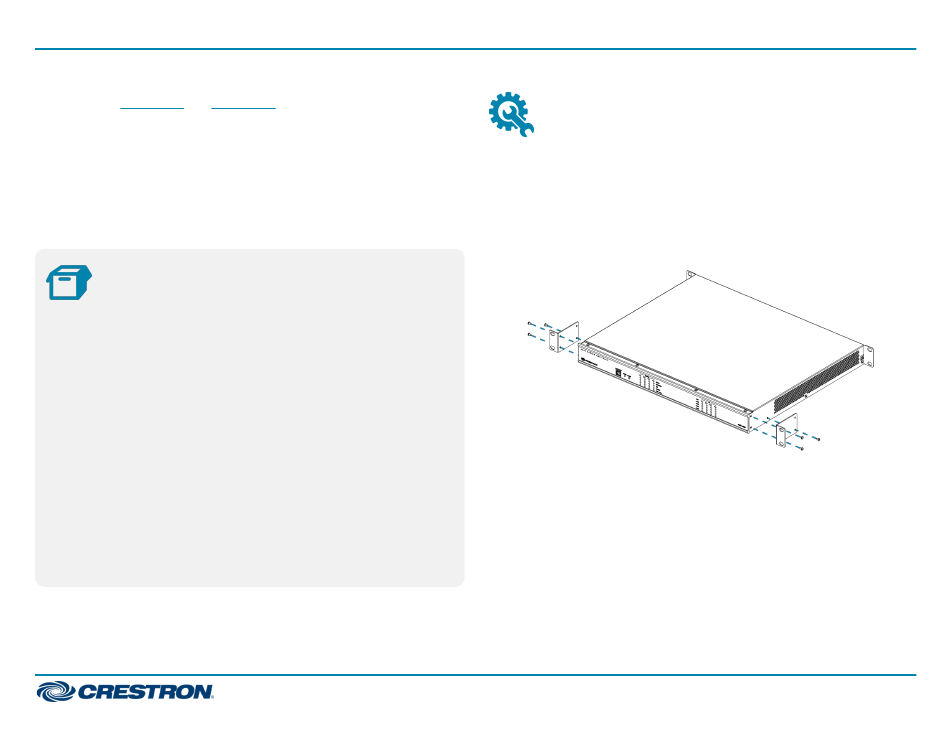

1. Use a #1 Phillips screwdriver to remove the three screws from each
side of the front of the amplifier as shown in the following illustration.
2. Use the screwdriver and the six included 1/4 in. Phillips Pan Head
screws to attach the included rack ears to the amplifier.
Quick Start
1
Advertisement
Table of Contents
Related Manuals for Crestron AMP-2800
Summary of Contents for Crestron AMP-2800
- Page 1 Crestron’s Vector™ Performance series. To install the included rack ears: The AMP-2800 and AMP-4600 feature similar operation. For simplicity within this guide, the term "amplifier" is used for both models except 1. Use a #1 Phillips screwdriver to remove the three screws from each where noted.
-
Page 2: Connect The Device
Quick Start AMP-2800 and AMP-4600 Crestron® Multichannel Commercial Amplifiers To install the included rear mounting brackets: 1. Use a #1 Phillips screwdriver to remove the screws from the rear of Connect the Device the amplifier as shown in the following illustration. - Page 3 Quick Start AMP-2800 and AMP-4600 Crestron® Multichannel Commercial Amplifiers AMP-2800 Front AMP-2800 Rear...
- Page 4 Quick Start AMP-2800 and AMP-4600 Crestron® Multichannel Commercial Amplifiers AMP-4600 Front AMP-4600 Rear...
-
Page 5: Speaker Connections
Speakers are bridged with the Crestron Avia® Audio tool, which can be downloaded from www.crestron.com/software. The possible bridging combinations are Output 1 & Output 2 (AMP-2800 and AMP-4600) or Output 3 &... -
Page 6: Operate The Device
Quick Start AMP-2800 and AMP-4600 Crestron® Multichannel Commercial Amplifiers Monitor Operation Use the status indicators and VU meters on the front panel to monitor Operate the Device each speaker output. LEDs in the STATUS section indicate the following for each output:... -
Page 7: Configure The Device
Crestron® Multichannel Commercial Amplifiers Configure the Device Connect to the Device Configure the amplifier with the Crestron Avia Audio tool, which can be downloaded from www.crestron.com/software. To connect to the amplifier: 1. In the Crestron Avia Audio tool, click CONNECT TO DEVICE. - Page 8 To adjust the output type settings: By default, the Crestron Avia Audio tool comes with the amplifier outputs unmuted. However, the tool can be used to mute outputs or to make 1. Double-click the yellow AMP block associated with the output to be digital level adjustments prior to analog conversion at the amplifier adjusted.
- Page 9 Supported devices are preconfigured to Click the Bridge button to bridge the output with its associated connect to the service. Use of the service requires a registered Crestron bridge partner channel (channel 1 with channel 2, or channel 3 with XiO Cloud account.
- Page 10 Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
