This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the radio or television receiving antenna.

•

Increase the separation between the computer equipment and receiver.

•

Connect the equipment into an outlet on a circuit different from that to which the radio or television receiver is connected.

•

Consult the dealer or an experienced radio television technician for help.

Canadian Digital Apparatus Compliance

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

Radio Wave Exposure and Specific Absorption Rate (SAR) Information for Model CN30

The Model CN30 Mobile Computer has been designed to comply with applicable safety requirements for exposure to radio waves.

These requirements are based on scientific guidelines that include safety margins designed to assure the safety of all persons,

regardless of age and health.

The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate or SAR. Tests for SAR

are conducted using standardized methods with the device transmitting at its highest certified power level.

While there may be differences between the SAR levels of various products, they are all designed to meet the relevant guidelines for

exposure to the radio waves.

This radio has been tested and meets the FCC RF exposure guidelines when used with the Intermec accessories supplied or

designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. The highest

SAR value for the CN30 Mobile Computer, as tested by Compliance Certification Services, for single or collocated configuration is

0.056 W/kg.

15.19(a)(3)

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference

that may cause undesired operation.

578-100-131 Revision B

*578-100-131B*

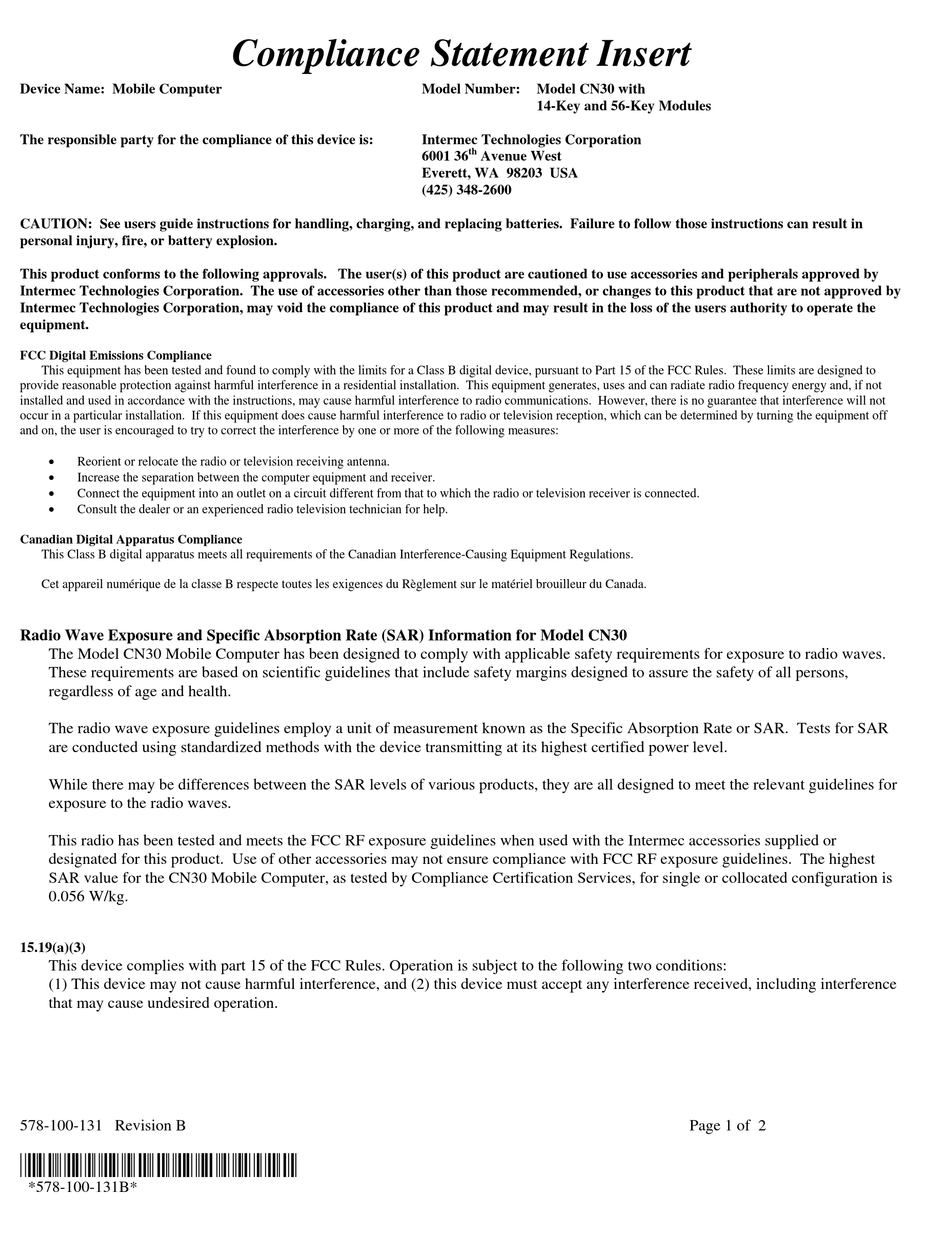

Compliance Statement Insert

Model Number:

Model CN30 with

14-Key and 56-Key Modules

Intermec Technologies Corporation

6001 36

Avenue West

Everett, WA 98203 USA

(425) 348-2600

Page 1 of 2

Table of Contents

Summary of Contents for Intermec CN30

Page 1 Intermec Technologies Corporation. The use of accessories other than those recommended, or changes to this product that are not approved by Intermec Technologies Corporation, may void the compliance of this product and may result in the loss of the users authority to operate the equipment.
Page 2 Signature: Signed Copy on File Date: July 25, 2005 European Contact: Intermec International Incorporated, Sovereign House, Vastern Road, Reading, Berkshire, RG1 8BT England; Phone INT+44 118 987 9400; Fax INT+44 118 987 9401 578-100-131 Revision B Page 2 of 2...
Page 3 User Manual CN30 Mobile Computer...
Page 4 The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and service Intermec-manufactured equipment and is not to be released, repro- duced, or used for any other purpose without written permission of Intermec.
Page 5 CN30 Mobile Computer User’s Manual...
Page 6 CN30 Mobile Computer User’s Manual...
Page 7 Safety Summary Your safety is extremely important. Read and follow all warnings and cau- tions in this document before handling and operating Intermec equipment. You can be seriously injured, and equipment and data can be damaged if you do not follow the safety warnings and cautions.
Page 8 Note: Notes either provide extra information about a topic or contain spe- cial instructions for handling a particular condition or set of circumstances. CN30 Mobile Computer User’s Manual...
Page 9 To understand the warranty for your Intermec product, visit the Intermec web site at http://www.intermec.com and click Service & Support. The Intermec Global Sales & Service page appears. From the Service & Support menu, move your pointer over Support, and then click Warranty.
Page 10 Before you install and configure the access points, you should be familiar with your network and general networking terms, such as IP address. CN30 Mobile Computer User’s Manual...
Page 11 Using the CN30 Mobile Computer Use this chapter to familiarize yourself with the CN30 Mobile Computer. In this chapter you will find these sections: • Introducing the CN30 Mobile Computer • Audio • Battery • Beeper • Using the Keypad •...
Page 12 Chapter 1 — Using the CN30 Mobile Computer Introducing the CN30 Mobile Computer The Intermec CN30 is an ergonomically designed Mobile computer built on the Microsoft® Windows® Mobile Version 5.0 operating system. It is a lightweight, easy-to-use, reliable computer that runs client/server applica- tions, terminal emulation applications, as well as browser-based applica- tions.
Page 13 Chapter 1 — Using the CN30 Mobile Computer Audio The audio system consists of two speakers, internal microphone and an external headset jack. Speaker The main speaker is capable of variable volume levels and is located on the back of the computer. The external headset jack connects a mobile phone style headset to your mobile computer for use in noisy environments.
Page 14 (LiIon) battery. Removing the main battery when the backup battery low or critically low icon displays in the status bar may cause your CN30 to cold boot and you may lose data. Attention: L’enlèvement de la batterie principale quand le bas de secours de batterie ou les affichages en critique bas d’icône dans la barre de statut...
Page 15 To install the battery Insert the tabs on the bottom of the charged battery into the CN30 56- Keyboard module and snap the battery into place. Maximizing Battery Life There are several things that you can do to prolong the life of your fully charged battery.
Page 16 Chapter 1 — Using the CN30 Mobile Computer Your computer contains an internal super capacitor, a temporary power storage device, that protects data for up to ten minutes. This is to give you time to replace the main battery pack before that data is lost. Be sure to put- the computer in a suspend mode before doing so.
Page 17 Chapter 1 — Using the CN30 Mobile Computer Select a Beeper Volume To select a beeper volume for the CN30 Mobile Computer, tap Start > Set- tings > the System tab > the Intermec Settings icon. Tap the Device Set- tings option, tap (+) to expand Beeper, then tap (+) to expand Volume.
Page 18 The CN30 supports TE 2000 VT100/220/320/340 and ANSI, TE 2000 5250, and TE 2000 3270. When you order the CN30 with a TE 2000 application, you must order the corresponding keypad overlay. Use the TE 2000 keypad overlays to enter the same keys that you can enter on a VT/ ANSI keyboard, an IBM 5250 keyboard, or an IBM 3270 keyboard.
Page 19 There are two color-coded modifier keys on the CN30: the orange key and the green key. You press and release the first key, then press and release the second key to access the color-coded character or function printed above a key.
Page 20 Note: The Magnifier window is only a display window. Using the Power (I) Key When you press the (I) key to turn off the CN30, you actually put the CN30 in Suspend mode. In Suspend mode, the CN30 continues to supply power to all memory, but turns off power to most hardware.
Page 21 The Start screen has two distinct areas; the desktop and the taskbar. The desktop displays shortcuts to some of the applications installed on the CN30 Computer. The taskbar displays the Start menu, the time, the onscreen keyboard icon and the desk- top icon.
Page 22 Performing a Cold-Boot on the CN30 Computer If the CN30 Computer or an application is locked up and does not respond to a warm-boot, do the following. 1 Release the lower clip of the hand strap and slide the latch to the left.
Page 23 Chapter 1 — Using the CN30 Mobile Computer Software Build Version To check to see if your CN30 Mobile Computer has the latest software build, select Start > Internet Explorer > the Intermec logo. The latest soft- ware build version is displayed beneath the Version Information title. This information is useful should you need product support assistance.
Page 24 Chapter 1 — Using the CN30 Mobile Computer Understanding the Status Lights The status lights on the CN30 Computer turn on to indicate battery status or successful bar decodes. The battery lights and the battery screen icon work with each other to alert you to the status of your battery. If the battery light (under the right Scan button) comes on, check the status bar to see which battery icon appears on it.
Page 25 1 Press (I) to turn on the CN30 Computer. 2 Point the scanner window at the bar code label and hold the CN30 Computer steady a few inches from the label. 3 Press the Scan button on the keypad or pull the trigger on a handle and center the red aiming beam over the bar code label.
Page 26 Computers. The CN30 Mobile Computer supports Secure Digital storage cards. To access the card slot, locate the access door at the side of the CN30 Mobile Computer, remove its two screws, then remove the door. See the CN30 Mobile Computer Quick Start Guide (P/N: 962-054-125) for more informa- tion.
Page 27 3 Push in on the SD card until you hear it unlatch. The card should eject far enough that you can easily remove it from the CN30. If the card does not eject easily, you can use the door catch to remove it by turning the door upside down and using the catch to pull out the SD card.
Page 28 Chapter 1 — Using the CN30 Mobile Computer CN30 Mobile Computer User’s Manual...
Page 29 To Check the Intermec build of Windows Mobile Version 5.0 on your CN30: 1 Select Start > Internet Explorer > the Intermec logo. 2 Note the "Software Build" information displayed beneath the Version Information title. Do the following to determine which Intermec build of Windows Mobile Version 5.0 is on your unit.
Page 30 This chapter describes your CN30 Mobile Computer hardware, provides an overview of the programs on your CN30 Mobile Computer, and explains how to connect your CN30 Mobile Computer to a desktop, a net- work, or the Internet. For instructions on setting up your CN30 Mobile Computer and installing ActiveSync, see the Quick Start Guide.
Page 31 Today Screen When you turn on your CN30 Mobile Computer for the first time each day (or after four hours of inactivity), you see the Today screen. You can also display it by tapping the Start flag and then Today. On the Today screen, you can see important information for the day.
Page 32 Drag the stylus off the label so that the command is not carried out. The following is a partial list of programs that are on your CN30 Mobile Computer. Look on the Windows Mobile Companion CD for additional programs that you can install onto your CN30 Mobile Computer.
Page 33 CN30 Mobile Computer. For more information on ActiveSync, see ActiveSync Help on your desktop. • Typing • Using the input panel, enter typed text into the CN30 Mobile Com- puter. You can do this by tapping keys on the onscreen keyboard or by using handwriting recognition software.
Page 34 Chapter 2 — Windows Mobile Version 5. 0 • Use the input panel to enter information in any program on your CN30 Mobile Computer. You can either type using the onscreen keyboard or write using Block Recognizer, Letter Recognizer, or Transcriber. In either case, the characters appear as typed text on the screen.To show or hide...
Page 35 CN30 Mobile Computer. Today Screen When you turn on your CN30 Mobile Computer for the first time each day (or after four hours of inactivity),you see the Today screen. You can also display it by tapping the Start flag (shown left) and then Today.
Page 36 Drag the stylus off the label so that the command is notcarried out. The following is a partial list of programs that are on your CN30 Mobile Computer. Look on the Windows Mobile Companion CD for additional programs that you can install onto your CN30 Mobile Computer.
Page 37 ActiveSync, see ActiveSync Help on your desktop. • Typing Using the input panel, enter typed text into the CN30 Mobile Com- puter. You can do this by tapping keys on the onscreen keyboard or by using handwriting recognition software.
Page 38 Create a stand-alone recording or embed a recording into a document or note. Use the input panel to enter information in any program on your CN30 Mobile Computer. You can either type using the onscreen keyboard or write using Block Recognizer, Letter Recognizer,or Transcriber.In either case, the characters appear as typed text on the screen.
Page 39 Using Block Recognizer Character recognition software gives you a fast and easy method for enter- ing information in any program on your CN30 Mobile Computer. Letters, numbers, and punctuation you write are translated into typed text. Tap the arrow, then tap Block Recognizer. Write a letter in the box. When you write a letter, it is converted to typed text that appears on the screen.
Page 40 • Write on the lines and draw descenders below the line. Write the cross of the “t” and apostrophes below the top line so they are not confused with the word above. Write periods and commas above the baseline. CN30 Mobile Computer User’s Manual...
Page 41 • Write the letters of a word closely and leave big gaps between words so that the CN30 Mobile Computer can easily tell where words begin and end. • Hyphenated words, foreign words that use special characters such as accents, and some punctuation cannot be converted.
Page 42 Tap to select a prewritten message. Finding and Organizing Information The Find feature on your CN30 Mobile Computer helps you quickly locate information. Tap Start > Find. Enter the text you want to find, select a data type, and then tap Go to initiate the search.
Page 43 Chapter 2 — Windows Mobile Version 5.0 You can also use the File Explorer to find files on your CN30 Mobile Com- puter and to organize these files into folders. Tap Start > Programs > File Explorer. Tapthe folder name to open it.
Page 44 You can install any program created for your CN30 Mobile Computer, as long as your CN30 Mobile Computer has enough memory. The most pop- ular place to find software for your CN30 Mobile Computer is on the Win- dows Mobile Web site (http://www.microsoft.com/windowsmobile/ resources/ communities/default.mspx).
Page 45 My Documents by default, and then My Device to see a list of all folders on the CN30 Mobile Computer). Tap and hold the program and tap Cut on the pop-up menu. Open the Start Menu folder located in the Windows folder, tap and hold a blank area of the window, and tap Paste on the pop-up menu.
Page 46 With ActiveSync, you can also: • Back up and restore your CN30 Mobile Computer data. • Copy (rather than synchronize) files between your CN30 Mobile Com- puter and desktop. • Control when synchronization occurs by selecting a synchronization mode.
Page 47 CN30 Mobile Computer. Notice that information you have stored in Microsoft Outlook on your desktop was copied to your CN30 Mobile Computer, and you did not have to type a word. Disconnect the CN30 Mobile Computer from your computer and you are ready to go!
Page 48 Free (you may need to scroll to see it) so that it does not show time as busy in your calendar. All day events do not occupy blocks of time in Calendar; they appear in banners at the top of the calendar. CN30 Mobile Computer User’s Manual...
Page 49 If you have an all day event not marked Free, a hollow square is displayed. This displays an all day event not marked Free. CN30 Mobile Computer User’s Manual...
Page 50 Creating an All Day Event To create an all day event, do the following: 1 Tap New. 2 Tap All Day, then select Yes. Tap to select either Yes or No whether thisis an all day event. CN30 Mobile Computer User’s Manual...
Page 51 Edit. Change any appointment detail by tapping it and entering the new information. You cannot modify or create all day events withattendees on the CN30 Mobile Computer. If you create all day events with attendees on your desk- top, use ActiveSync to copy such events to the CN30 Mobile Computer.
Page 52 Before you can send a meeting request, you must enter e-mail addresses in Contacts Help and set up Inbox to send and receive messages. For more information on sending and receiving meeting requests, tap Start > Help > CN30 Mobile Computer User’s Manual...
Page 53 • S To see appointment indicators, select icons to display in Show icons. You can choose to display indicators for such things as recurring appoint- ments, appointments with notes, and appointments with reminders. Tap and hold an icon to see its name. CN30 Mobile Computer User’s Manual...
Page 54 Tap toindicate notes. Tap toindicate recurrences. Tap to indicate reminders. Contacts:Tracking Friends and Colleagues To switch to Contacts on the CN30 Mobile Computer, tap Start > Con- tacts. Contacts maintains a list of your friends and colleagues so that you can easily find the information you are looking for, whether you are at home or on the road.
Page 55 • To change a contact, tap it in the contact list, and then tap Edit.To can- cel edits, tap Edit > Undo. When finished making changes, tap ok to return to the contact list. CN30 Mobile Computer User’s Manual...
Page 56 5Tap ok to return to the contacts. A check mark indicates a selected category. Copying a Contact 1In the contact list, select the contact. To select multiple contacts, tap and drag. 2Tap Tools,and then select Copy Contacts. CN30 Mobile Computer User’s Manual...
Page 57 Adding aContact to Speed Dial You can create speed dials to call frequently-called numbers with a single tap. Before you can create a speed dial entry for a phone number, that num- ber must already exist in Contacts. CN30 Mobile Computer User’s Manual...
Page 58 Enter the three-digit area code. Select from a drop-down list. Tasks:Keeping a To Do List To switch to Tasks on your CN30 Mobile Computer, tap Start > Tasks. Use Tasks to keep track of what you have to do. A variety of task infor- mation can display on the Today screen.
Page 59 Notes:Capturing Thoughts and Ideas To switch to Notes on your CN30 Mobile Computer, tap Start > Notes. Notes helps you quickly capture your ideas, notes, and thoughts. You can create a note using written and typed text, drawings, and recordings. You can also share your notes with others through e-mail, infrared, and syn- chronization with your desktop.
Page 60 • Drawing • Using the stylus, draw directlyon the screen. • Typing • Using the input panel, enter typed text into the CN30 Mobile Com- puter. • Do this by tapping keys on the onscreen keyboard or by using hand writ- ing recognition software.
Page 61 ActiveSync Help on the desktop. Note: When you delete or change an item on either your desktop or CN30 Mobile Computer, the item is changed or deleted in the other location the next time you synchronize.
Page 62 Exchange or Outlook and then sent from those programs. • S The messages on the two computers are linked. When you delete a message on your CN30 Mobile Computer, it is deleted from your desk- top the next time you synchronize.
Page 63 You can work online or offline. When working online, you read and respond to messages while connected to the e-mail server. Messages are sent as soon as you tap Send, which saves space on your CN30 Mobile Com- puter. When working offline, once you have downloaded new message headers or partial messages, you can disconnect from the e-mailserver and then decide which messages to download completely.
Page 64 CN30 Mobile Inbox. Tap a message in the message list to open it. 3If you read a message and decide that you need the full copy, tap Edit >...
Page 65 Companion Programs The companion programs consist of Microsoft Word Mobile, Microsoft Excel Mobile, Windows Media Player. To switch to a companion pro- gram on your CN30 Mobile Computer, tap Start > Programs, then tap the program name. Word Mobile Word Mobile works with Microsoft Word on your desktop to give you access to copies of your documents.
Page 66 Word (.DOC), Word Mobile (.PSW), Rich Text Format (.RTF), and Plain Text (.TXT). Word Mobile contains a list of files stored on your CN30 Mobile Com- puter. Tap a file in the list to open it. To delete, make copies of, and send files, tap and hold a file in the list, then, select the action on the pop-up menu.
Page 67 In recordingmode, embeda recording into your document. Recordings are saved as .WAV files. For more information on recording, see “Basic Skills” on page . For more information on using Word Mobile, tap Start > Help > Word Mobile to see Word Mobile Help. CN30 Mobile Computer User’s Manual...
Page 68 For more information on synchronization or file conversion, see ActiveSync Help on the desktop. Note: When you delete a file on either your desktop or your CN30 Mobile Computer, the file is deleted in the other location the next time you syn- chronize.
Page 69 Templates folder. Excel Mobile contains a list of the files stored on your CN30 Mobile Com- puter. Tap a file in the list to open it. To delete, make copies of, and send files, tap and hold a file in the list.
Page 70 Microsoft Exchange e-mail account that your employer provides. Once you have one of these accounts, do the following: 1 Set up a connection on your CN30 Mobile Computer, such as a modem or wireless connection, that enables you to connect to the Inter- net.
Page 71 To delete a contact, tap and hold the contact’s name, then tap Delete Con- tact from the pop-upmenu. To see others online without being seen, tap Tools > My Status > Appear Offline. CN30 Mobile Computer User’s Manual...
Page 72 CN30 Mobile Computer or on a network. To switch to Windows Media Player on your CN30 Mobile Computer, tap Start > Windows Media. Use Microsoft Windows Media Player on your desktop to copy digita- laudio and video files to your CN30 Mobile Computer.
Page 73 CN30 Mobile Computer. Both computers are updated with changes made to either list each time you synchronize. Unless you mark the favorite link as a mobile favorite, only the link is downloaded to your CN30 Mobile Computer. Connect to your ISP or network to view the content.
Page 74 CN30 Mobile Computer and desktop does not start, in ActiveSync on your desktop, click Sync. Mobile favorites take up storage memory on your CN30 Mobile Computer. To minimize the amount of memory used: • S In the settings for the Favorites information, type in ActiveSync options, turn off pictures and sounds, or stop some mobile favorites from CN30 Mobile Computer User’s Manual...
Page 75 Tap to add or delete a folder or favorite link. The page that was downloaded the last time you synchronized with your desktop opens. If the page is not on your CN30 Mobile Computer, the favorite is dimmed. Synchronize with your desktop again to download the page to your CN30 Mobile Computer, or connect to the Internet to view the page.
Page 76 Chapter 2 — Windows Mobile Version 5. 0 Note: To add a favorite linkwhile using the CN30 Mobile Computer, go to the page you want to add, tap and hold on the page, and tap Add to Favor- ites. Getting Connected...
Page 77 2 Enter a name for the connection, such as “ISP Connection.” In the Select a modem list, select your modem type. If your modem type does not appear, try reinserting the CN30 Mobile Computer into your modem dock. If you are usingan externalmodem that is connected to your CN30 Mobile Computer witha cable, select “Hayes Compatible on...
Page 78 CN30 Mobile Computer into your modem dock. • If using an external modem connected to your CN30 Computer with a cable, select “Hayes Compatible on COM1.” • If using any type of external modem, select the modem by name. If a list- ing does not exist for your external modem, select “Hayes Compatible on...
Page 79 Creating aWireless NetworkConnection Microsoft Corporation’s wireless network configuration tool is called “Wireless Zero Config.” Intermec Technologies recommends that you use the Wireless Network control panel applet instead as itoffers more security choices and exhibit better roaming behavior. Information about the Wire- less Network control panel applet is in Appendix A.
Page 80 To connect only to networks you have already configured, clear Automati- callyconnect to non-preferred networks. Tap ok to close this screen. Note: If you select to automatically connect to non-preferred networks, your device detects any new networks and provide you the opportunity to configure them. CN30 Mobile Computer User’s Manual...
Page 81 To change advanced settings, tap Advanced.Otherwise,tap Finish. Insert necessary equipment, such as a network (Ethernet)card, into the device, and use a desired program to automatically begin connecting. For example, switch to Pocket Internet Explorer and browse to a Web page. CN30 Mobile Computer User’s Manual...
Page 82 Do the following to set up an e-mail service. Tap the question mark at the top of the screen for more assistance. 1On your CN30 Mobile Computer, tap Start > Inbox to access the Inbox application. Tap Accounts > New Account.
Page 83 Installing Applications In this chapter you will find guidelines information on installing applications. CN30 Mobile Computer User’s Manual...
Page 84 CN30 Computer, do a right-click for a pop-up menu, then select Paste. 6 When all of the files are pasted, perform a warm-boot on the CN30 Computer. When the computer reboots, wait for the LED on the top left of your keypad to stop blinking.
Page 85 Note: These instructions assume that the CN30 Management Tools por- tion of the Intermec Developer’s Library CD was installed on your PC and that a storage card was added to the base configuration of the CN30 Com- puter. Do the following required steps to ensure that CAB files are restored, appli-...
Page 86 See Appendix A, “Configurable Settings,” for more information about the Utilities control panel applet. • From the CN30 Computer, tap Start > Settings > Control Panel. • ouble-tap the Utilities icon, then tap the Registry Save tab.
Page 87 CN30. Another benefit of using the FTP server is that you can create FTP scripts to automate the process of copying your files to the CN30. This option is useful when you need to send files to a large number of CN30s.
Page 88 • Use the AUTOCAB method to extract all files when a cold-boot is per- formed on the CN30 Computer. This method is on the Intermec Devel- oper’s Library CD, see its Software Tools User’s Manual for information.
Page 89 Network Support The CN30 Mobile Computer automatically installs the appropriate soft- ware for radio use when the unit is powered on. It provides wireless connec- tivity via the Wireless Local Area Network (WLAN) using an 802.1x radio option that provides up to 11 Mb/sec throughput.
Page 90 Chapter 4 — Network Support Configuring the CN30 With the Setup Assistant When first setting up the CN30, use the Setup Assistant to set or enable basic network parameters and connect your CN30 to the network. The Setup Assistant guides you through setting the following basic network parameters: •...
Page 91 Chapter 4 — Network Support Configuring the CN30 for Your Network The CN30 is a versatile Mobile computer that you can easily add to your wired or wireless data collection network. You can connect your CN30 to your network using: •...
Page 92 IP Settings (if not using DHCP) 2 Configure security. For help, see “Configuring Security” on page XX. work. You can configure the network parameters on the CN30 with the Configu- ration Utility. For help, see “Configuring the CN30 with the Configuration Utility” on page XX.
Page 93 • Use the next sections to understand how to configure each type of security on your wireless CN30. If you choose not to use security, see “Disabling Security” on page XX for help. Intermec always recommends that you implement security.
Page 94 Selecting a Profile You can define up to four profiles for your Funk security. Different profiles let your CN30 communicate in different networks without having to change all of your security settings. For example, you might want to set up one profile for the manufacturing floor and one for the warehouse.
Page 95 • shared key In PSK mode, WPA provides user authentication using a between the access point and the CN30. WPAPSK is a good solution for small offices or home offices that do not want to use an authentication server. To use WPA security, you need: •...
Page 96 Select User name, type your user name, and then press Enter. d For Validate Server Certificate, choose Enabled and press Enter. Note: You must have the date on the CN30 set correctly when you enable Validate Server Certificate.. If you choose TLS: a Load a user and root certificate on your CN30.
Page 97 Press Enter. You return to the Communications menu. 6 Exit the Configuration Utility. To enable WPA-PSK security on your CN30 1 Make sure you have configured the communications and radio param- eters on your CN30.
Page 98 A CN30 with an 802.11b/g radio and the 802.1x/WPA security option Configuring 802.1x Security With Funk Security Use this procedure to configure 802.1x security on your CN30 with Funk security. To enable 802.1x security on your CN30 with Funk security 1 Make sure you have selected Funk as your security choice.
Page 99 Chapter 4 — Network Support Enter. If you choose TLS: a Load a user and root certificate on your CN30. For help, see “Loading a Certificate” on page 64 for help. b For Validate Server Certificate, choose Enabled and press Enter.
Page 100 • Cisco access points Note: LEAP security is not supported with Microsoft security. To enable LEAP security on your CN30 1 Make sure you have selected Funk as your security choice. 2 Make sure you have configured the communications and radio parameters on your CN30.
Page 101 Chapter 4 — Network Support Configuring Static WEP Security The CN30 uses the Wired Equivalent Privacy (WEP) protocol to provide your wireless networks the same level of protection as a comparable wired network. WEP adds security to wireless local area networks (WLANs) based on the 802.11b standard.
Page 102 Loading Certificates If you choose to use transport layer security (TLS) with WPA or 802.1x security, you need to have a unique client certificate on the CN30 and a trusted root certificate authority (CA) certificate. You can use a third-party CA to issue unique client certificates and a root certificate.
Page 103 Protocol (PPTP) or Layer Two Tunneling Protocol (L2TP). PPTP is a network protocol that adds a security infrastructure for the trans- fer of data from a remote CN30 to a private server, thus creating a VPN by using TCP/IP-based data networks. Like PPTP, L2TP also uses Point-to- Point Protocol (PPP) to encrypt data.
Page 104 To save configuration changes using the Configuration Utility 1 From the System Main Menu, select Configuration Utility. 2 From the Configuration Utility, select Save to Flash. The Save Settings dialog box appears. 3 Press Enter. CN30 Mobile Computer User’s Manual...
Page 105 The MIB is a structured collection of such objects. You will find the following MIB files either in the CN30 Mobile Manage- ment Tools portion of the Intermec Developer’s Library CD or on the web via www.intermec.com:...
Page 106 IP address of this entry (same as Subnet Mask). Configuring with SNMP The community string allows an SNMP manager to manage the CN30 Mobile Computer with a specified privilege level. The default read-only community string is “public” and “private” is the default read/write com- munity string.
Page 107 Chapter 4 — Network Support 3 Use your SNMP management station to get and set variables that are defined in the Intermec MIBs. You can set the traps, identification, or security configuration parameters for SNMP. See Appendix A, “Config- urable Settings,” to learn more about these parameters.
Page 108 Chapter 4 — Network Support CN30 Mobile Computer User’s Manual...
Page 109 Programming The following programming information pertains to the CN30 Mobile Computer: • Creating CAB Files • Customization and Lockdown • Kernel I/O Control Functions • Networking APIs • Notifications • Reboot Functions • Remapping the Keypad CN30 Mobile Computer User’s Manual...
Page 110 S Signature: “signature_name” “$Windows NT$” S Provider: “INF_creator” The company name of the application, such as “Microsoft.” S CESignature “$Windows CE$” Example [Version] Signature = ì$Windows NT$î Provider = ìIntermecî CESignature = ì$Windows CE$î [CEStrings] CN30 Mobile Computer User’s Manual...
Page 111 [CEDevice.xxx] section is different from that in the [CEDevice] section, both platform_family_name values are unsupported for the microprocessor specified by xxx. That is, the list of unsupported platform family names is appended to the previous list of unsupported CN30 Mobile Computer User’s Manual...
Page 112 ; The following overrides the version settings so that no version checking is performed. VersionMin = VersionMax = [CEDevice.MIPS] ; Inherits all [CEDevice] settings ; This will create a .CAB file specific to ìMIPSî devices. ProcessorType = 4000 ; MIPS .CAB file is valid for MIPS CN30 Mobile Computer User’s Manual...
Page 113 Example [DefaultInstall] AddReg = RegSettings.All CEShortcuts = Shortcuts.All [SourceDiskNames] This section describes the name and path of the disk on which your application resides. Required? Yes S disk_ordinal: disk_label,,path 1=,“App files” , C:\Appsoft\RP32\... 2=,“Font files”,,C:\RpTools\... CN30 Mobile Computer User’s Manual...
Page 114 String that identifies the destination directory. The following list shows the string substitutions supported by Windows CE. Use these only for the beginning of the path. \ %CE1% \Program Files %CE2% \Windows %CE3% \My Documents %CE4% \Windows\Startup %CE5% \My Documents %CE6% \Program Files\Accessories CN30 Mobile Computer User’s Manual...
Page 115 CE_COPYFLG_NO_DATE_DIALOG 0x20000000 Do not copy files if the target file is newer. CE_COPYFLG_NODATECHECK 0x40000000 Ignore date while overwriting the target file. CE_COPYFLG_SHARED 0x80000000 Create a reference when a shared DLL is counted. Example CN30 Mobile Computer User’s Manual...
Page 116 This section, a Windows CE-specific section under the [DefaultInstall] section, is optional and describes the shortcuts that the installation application creates on the device. Within the [DefaultInstall] section, a reference may have been made to this section, such as “ShortCuts.All”. This section CN30 Mobile Computer User’s Manual...
Page 117 1 = ,ìApp filesî ,,c:\appsoft\... 2 = ,îFont filesî ,,c:\WinNT\Fonts 3 = ,îCE Toolsî ,,c:\windows ce tools\wce400\700ie\mfc\lib\x86 [SourceDisksFiles] ; Required section rpm.exe = 1,C:\Appsoft\program\wce400\WCEX86Rel700 wcestart.ini = 1 rpmce212.ini = 1 intermec.bmp = 1 rpmlogo.bmp = 1 rpmname.bmp = 1 CN30 Mobile Computer User’s Manual...
Page 118 [CEStrings] ; Required section AppName = Rp32 InstallDir = \storage_card\%AppName% [Strings] ; Optional section ;[Shortcuts.All] ;Sample App,0,sample.exe ; Uses the path in DestinationDirs. ;Sample App,0,sample.exe,%InstallDir% ; The path is explicitly specified. [Files.App] rpm.exe,,,0 rpm.ini,rpmce212.ini,,0 mfcce212.dll,,,0 olece212.dll,,,0 CN30 Mobile Computer User’s Manual...
Page 119 ; Shell is not on top HKLM,îSOFTWARE\Microsoft\Clockî,SHOW_CLOCK,0x00010001,0 ; Clock is not on taskbar Using Installation Functions in SETUP.DLL SETUP.DLL is an optional file that enables you to perform custom operations during installation and removal of your application. The following CN30 Mobile Computer User’s Manual...
Page 120 // Returns: TRUE - process is running. // FALSE - process is not running. // $DOCEND$ //************************************************************************ BOOL IsProcessRunning( TCHAR * pname ) HANDLE hProcList; PROCESSENTRY32 peProcess; DWORD thDeviceProcessID; TCHAR lpname[MAX_PATH]; if ( !pname || !*pname ) return FALSE; CN30 Mobile Computer User’s Manual...
Page 121 HWND hwndParent, BOOL fFirstCall, BOOL fPreviouslyInstalled, LPCTSTR pszInstallDir ) return codeINSTALL_INIT_CONTINUE; codeINSTALL_EXIT Install_Exit ( HWND hwndParent, LPCTSTR pszInstallDir, WORD cFailedDirs, WORD cFailedFiles, WORD cFailedRegKeys, WORD cFailedRegVals, WORD cFailedShortcuts ) HANDLE h; TCHAR srcfile[MAX_PATH]; TCHAR dstfile[MAX_PATH]; CN30 Mobile Computer User’s Manual...
Page 122 // Couldnít access SYSIO. Notify user. } // end if } // end if return codeINSTALL_EXIT_DONE; codeUNINSTALL_INIT Uninstall_Init( HWND hwndParent, LPCTSTR pszInstallDir ) { // TODO: Perform the reverse of INSTALL_INIT here return codeUNINSTALL_INIT_CONTINUE; codeUNINSTALL_EXIT CN30 Mobile Computer User’s Manual...
Page 123 CAB Wizard application to run correctly. Troubleshooting the CABWizard To identify and avoid problems that might occur when using the CAB Wizard, follow these guidelines: S Use %% for a percent sign (%) character when using this character in CN30 Mobile Computer User’s Manual...
Page 124 Use the RegFlushKey() API to save a copy of the registry to a storage device. See the 751G Management Tools por- tion of the Intermec Developer’s Library CD for more information on how to do this. Saving a copy of the registry restores most system settings in a cold boot situation.
Page 125 If SPI_GETPLATFORMTYPE is specified in lpInBuf, then the “XScale\0” Unicode string is returned. If SPI_GETOEMINFO is specified in lpInBuf, then the “Intermec 751\0” Unicode string is returned. nOutBufSize The size of lpOutBuf in bytes. Must be large enough to hold the string returned.
Page 126 This IOCTL reads the manufacturing flag bits from the non-volatile data store that dictates certain software parameters. A BOOLEAN DWORD is returned in the buffer pointed to by lpOutBuffer that indicates if Intermec Content is enabled in the XIP regions. TRUE indicates that it is enabled. FALSE indicates that it is not enabled.
Page 127 Chapter 7 — Programming S ITC_DEVID_OEM2D_IMAGER OEM 2D imager is installed. S ITC_DEVID_INTERMEC2D_IMAGER Intermec 2D imager is installed. The high bit indicates whether the S6 scanning engine is installed. The bit mask for this is ITC_DEVID_S6ENGINE_MASK. A non-zero value indicates that the S6 scanning engine is installed.
Page 128: Lpinbuf,Dword Ninbufsize,Lpvoid Lpoutbuf,Dword Noutbufsize,Lpdword Lpbytesreturned )
The UUID is returned if the buffer size is set to sizeof(UNIQUE_DEVICEID), otherwise the oldstyle device ID is returned. Usage #include “pkfuncs.h” #include “deviceid.h” Syntax BOOL KernelIoControl( IOCTL_HAL_GET_DEVICEID,LPVOID lpInBuf,DWORD nInBufSize,LPVOID lpOutBuf,DWORD nOutBufSize,LPDWORD lpBytesReturned ); Parameters lpInBuf Should set to NULL. STRICT_ID settings are not supported. CN30 Mobile Computer User’s Manual...
Page 129: Lpinbuf Should Set To Null
Returns TRUE if function succeeds. Returns FALSE if the function fails. May use GetLastError() to get the extended error value. IOCTL_HAL_GET_BOOTLOADER_VERINFO Returns the HAL version information of the Windows CE .NET image. Usage #include “oemioctl.h” CN30 Mobile Computer User’s Manual...
Page 130: Lpinbuf Should Set To Null
Parameters lpInBuf Should set to NULL. lpInBufSize Should set to zero. lpOutBuf Should be NULL. nOutBufSize Should be zero. Return Values None. IOCTL_HAL_COLDBOOT Causes the system to perform a cold-boot. The object store is cleared. CN30 Mobile Computer User’s Manual...
Page 131: Lpinbufsize Should Set To Zero
} HAL_RESET_INFO, * PHAL_RESET_INFO; // Reset reason types #define HAL_RESET_TYPE_UNKNOWN 0 #define HAL_RESET_REASON_HARDWARE 1 // cold #define HAL_RESET_REASON_SOFTWARE 2 // suspend #define HAL_RESET_REASON_WATCHDOG 4 #define HAL_RESET_BATT_FAULT 8 // power fail #define HAL_RESET_VDD_FAULT 16 // warm boot CN30 Mobile Computer User’s Manual...
Page 132: Table Of Contents
Causes the system to perform a warm-boot. The object store is retained. Usage #include “oemioctl.h” Syntax BOOL KernelIoControl( IOCTL_HAL_REBOOT,LPVOID lpInBuf,DWORD nInBufSize,LPVOID lpOutBuf,DWORD nOutBufSize,LPDWORD lpBytesReturned ); Parameters lpInBuf Should set to NULL. lpInBufSize Should set to zero. lpOutBuf Should be NULL. nOutBufSize Should be zero. Return Values CN30 Mobile Computer User’s Manual...
Page 133 Syntax BOOL KernelIoControl( IOCTL_GET_CPU_ID,LPVOID lpInBuf, DWORD nInBufSize,LPVOID lpOutBuf,DWORD nOutBufSize,LPDWORD lpBytesReturned ); Parameters lpInBuf Should point to a CPUIdInfo structure defined in OEMIOCTL.H. lpInBufSize Should be sizeof(CPUIdInfo). lpOutBuf Should be NULL. nOutBufSize Should set to 0. CN30 Mobile Computer User’s Manual...
Page 134: Return Values
Returns TRUE if function succeeds. Returns FALSE if the function fails. May use GetLastError() to get the extended error value. Networking APIs The API provided by Intermec Technologies exposes a limited set of rou- tines that allows a programmer to access and affect the 802.1x network interface card from within their application.
Page 135 Chapter 7 — Programming panel applet that runs on the Windows CE unit. You can configure different 802.1x profiles and switch between them using the 802.11 API. See the ConfigureProfile() function for more information. CN30 Mobile Computer User’s Manual...
Page 136 Chapter 7 — Programming Basic Connect/Disconnect Functions Below are functions available for the CN30 Mobile Computer when enabled with the 802.1x radio module. RadioConnect() Connects to the available radio. Use this function if you plan on using a lot of API calls that talk directly to the radio. Note that the 802.1x radio must be enabled via NDISTRAY before you can connect to it.
Page 137: Err_Connect_Failed
USHORT reference is populated with one of the parameters listed above. Definitions #ifdef DYNAMIC_LOADING typedef UINT (*PFN_GetAuthenticationMode)(ULONG &); #else UINT GetAuthenticationMode(ULONG &); #endif GetBSSID() Call this function to get the current MAC address (BSSID) of the service CN30 Mobile Computer User’s Manual...
Page 138: Definitions #Ifdef Dynamic_Loading
ERR_CONNECT_FAILED if a connection with the radio failed. Remarks Data returned is valid if ERROR_SUCCESS is returned. Definitions #ifdef DYNAMIC_LOADING typedef UINT (*PFN_GetLinkSpeed)(int &); #else UINT GetLinkSpeed(int &); #endif GetMac() Call this function to get the MAC address of the 802.1x radio. CN30 Mobile Computer User’s Manual...
Page 139 Return Values ERROR_SUCCESS when successful, ERR_QUERY_FAILED when the query failed, or ERR_CONNECT_FAILED if a connection with the radio failed. Remarks If ERROR_SUCCESS is returned, your ULONG reference is populated with one of the parameters listed above. Definitions #ifdef DYNAMIC_LOADING typedef UINT (*PFN_GetNetworkType)(ULONG &); #else CN30 Mobile Computer User’s Manual...
Page 140 ERR_CONNECT_FAILED if a connection with the radio failed. Remarks If ERROR_SUCCESS is returned, your ULONG reference contains the RSSI. Valid RSSI range is from –100 Dbm to –30 Dbm. Definitions #ifdef DYNAMIC_LOADING typedef UINT (*PFN_GetRSSI)(ULONG &); #else CN30 Mobile Computer User’s Manual...
Page 141 NDIS_ENCRYPTION_3_KEY_ABSENT Indicates that there are no transmit keys available for use by AES, TKIP, or WEP, and AES, TKIP, and WEP are enabled. Return Values ERROR_SUCCESS when successful, ERR_QUERY_FAILED when the query failed, or ERR_CONNECT_FAILED if a connection with the radio failed. CN30 Mobile Computer User’s Manual...
Page 142 Chapter 7 — Programming Remarks If ERROR_SUCCESS is returned, your ULONG reference is populated with one of the parameters listed above. Definitions #ifdef DYNAMIC_LOADING typedef UINT (*PFN_GetWepStatus)(ULONG &); #else UINT GetWepStatus(ULONG &); • #endif CN30 Mobile Computer User’s Manual...
Page 143 Specifications CN30 Mobile Computer User’s Manual...
Page 144 Appendix A — Specifications Physical and Environmental Specifications Use this section to locate technical information about the CN30 and its available features and options. Hardware Microprocessor: Intel XScale PXA272 Application Processor: 520 MHz RAM Memory: 64 or 128 MB Flash ROM: 64 MB...
Page 145 SmartSystems™ Support: Centralized remote support capability; configures, updates, and maintains single devices or entire populations; real-time or batch, wired or wireless. Based on Wavelink Avalanche™ with Intermec value add utilities. Physical Dimensions Length: 24.1 cm (9.5 in) with 56-Key Module Length:16.5 cm (6.5 in) with 14-KeyModule...
Page 146 9.7 cm (3.8 in) diagonal active area; 5-level LED backlight control with high and low settings Regulatory Approvals UL and cUL Listed, UL 60950 and UL 1604 and CSA 22.2 No. 157, FCC Part 15, TUV, CE mark PENDING CN30 Mobile Computer User’s Manual...
Page 147 Use the AC9 to charge up to four batteries or keypad modules without hav- ing to remove them from the CN30. You can insert up to four CN30s with batteries installed making it easy to remember to charge your batteries over- night.
Page 148 Appendix A — Specifications CN30 Mobile Computer User’s Manual...

Intermec CN30 User Manual

Parameters

Return Values

Usage

Syntax

BOOL Kerneliocontrol

Parameters

Return Values

Quick Links

Related Manuals for Intermec CN30

Summary of Contents for Intermec CN30

Table of Contents
