Intermec CN30 Quick Start Manual

CN30 Quad Charger

What is the CN30 Quad Charger?

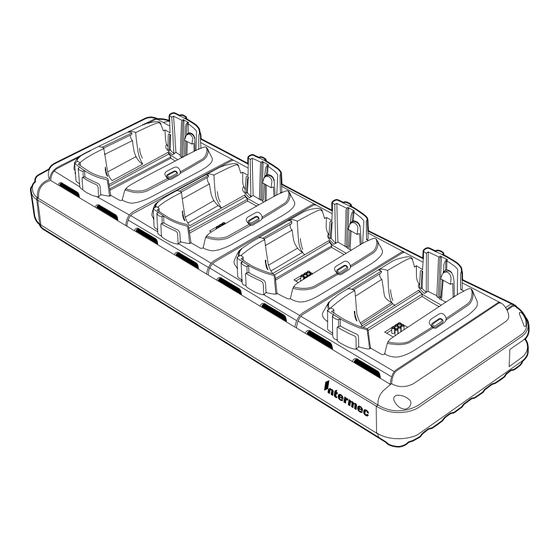

The CN30 Quad Battery Charger is an accessory for the CN30 Mobile Computer. Use the
battery charger to charge up to four batteries or modules at the same time, in any
combination. Before using the charger, please read this guide thoroughly and save it for
future reference.
To use the charger, you need:
• a DC power supply (p/n: 851-082-001)
• an AC power cord.
It is important to purchase the appropriate power cord for your location.
For more information, contact your Intermec sales representative.
The quad charger charges:
• 56-Key Module (p/n: VE00009-60028)
• 14-Key Module (p/n: VE00009-60029)
• Battery (p/n: VE00009-60007)
You must use the appropriate Intermec power supply with this device or
equipment damage may occur.
Attention: Vous devez utiliser la source d'alimentation Intermec
adéquate avec cet appareil sinon vous risquez d'endommager l'équipe-
ment.
The charger fully charges any combination of batteries or modules in approximately 4
hours.
With the battery or module contacts aligned in the charger, slide the battery or module
into one of the four slots. Push the battery or module into the slot to engage the latch. The
status indicator for that slot changes from OFF to yellow, green or red to indicate the
battery or module charge status.
See "Understanding the Status Indicators" to learn what the status indicator colors mean.

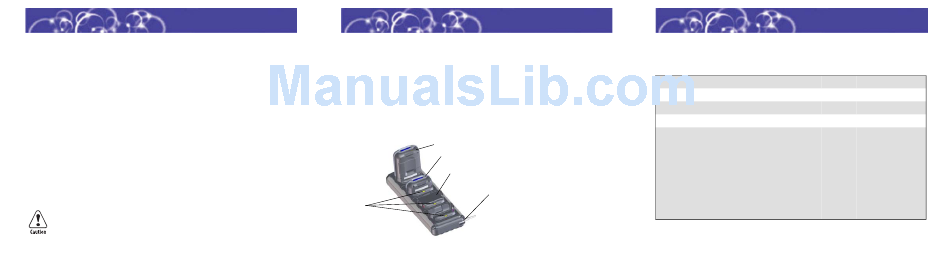

56-Key Module
14-Key Module
Battery
Power
Connector
Status
Indicators
Charging
Understanding the Status Indicators
Description
No battery or module installed.
Charge cycle in progress.
Charge cycle complete.
The battery or module is not charging.
Try these solutions:
Make sure the battery or module is firmly installed in the
charger.
Make sure the power supply is connected properly to a powered
AC outlet.
Make sure the room temperature is between 5
°
F and 95 F).

Status Indicators

Color
Off
Red
Green
Yellow
° C and 35 ° C (41 °
