CN3 Mobile Computer User's Manual
1

Using the Computer

This chapter introduces the CN3 Mobile Computer, developed by
Intermec to enhance wireless connectivity needs and contains hardware and
software configuration information to assist you in making the most out of
your CN3.
Note: Desktop icons and applet icons are shown to the left. Any place that
Start is mentioned, tap the following Windows icon in the top, left corner
of your CN3 desktop.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CN3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intermec CN3

Summary of Contents for Intermec CN3

  • Page 1: Using The Computer

    Using the Computer This chapter introduces the CN3 Mobile Computer, developed by Intermec to enhance wireless connectivity needs and contains hardware and software configuration information to assist you in making the most out of your CN3. Note: Desktop icons and applet icons are shown to the left. Any place that Start is mentioned, tap the following Windows icon in the top, left corner of your CN3 desktop.

  • Page 2: Introducing The Cn3 Mobile Computer

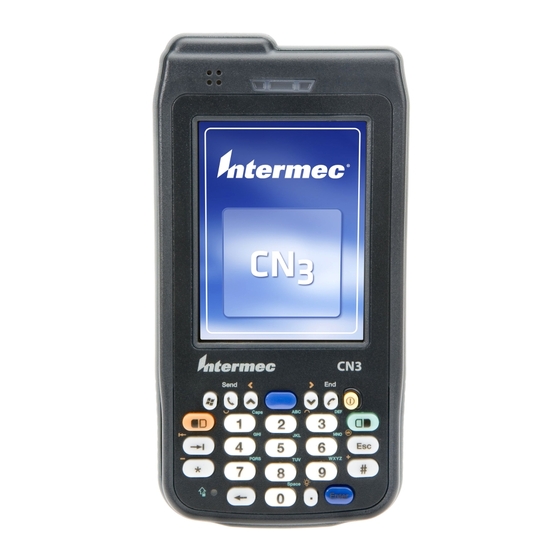

    Chapter 1 — Using the Computer Introducing the CN3 Mobile Computer The Intermec CN3 Mobile Computer is a small, ergonomically designed mobile computer built on the Microsoft® Windows® Mobile 5.0 operating system. It is lightweight, easy-to-use, and runs most software developed for the Windows Mobile platform, including stand-alone, client-server, and browser-based applications.

  • Page 3: Rear View

    Color camera and flash Rear Speaker Scanner Remappable scan buttons Stylus in holder Connector Microphone Battery With miniSD/SIM card door open Note that the scanner and the color camera cannot be on the same CN3. CN3 Mobile Computer User’s Manual...

  • Page 4: Learning Software Build Versions

    802.11b/g wireless LAN devices. Learning Software Build Versions To check to see if your CN3 has the latest SSPB or operating system build, select Start > Internet Explorer > the Intermec logo, then note the information beneath the CN3 Version Information title.

  • Page 5: Resetting Your Computer

    2 Remove the battery pack from the back of the CN3. 3 With a stylus, press the reset button in the battery cavity in the back. 4 Press and hold the power switch as you put the battery back in the CN3. Reset button Do not use force or a sharp object when pressing the reset button.

  • Page 6: Scanning Bar Codes

    3 With a stylus, press the reset button in the battery cavity in the back. 4 Press and hold the power switch as you put the battery back in the CN3. 5 Continue to hold the power switch until a Warning message appears on the display, release the power switch, then read the message.

  • Page 7: Improving The Performance Of The Area Imager

    If you have problems scanning a bar code with the 2D imager, try following some of these tips to improve the performance of your imager: • Tap Start > Settings > the System tab > the Intermec Settings icon to access the applet.

  • Page 8: Reading Distances

    Contact your Intermec representative for more information. The minimum standard reading distances for CN3s built with integrated scan engines are shown below. When correctly mounted, an exit window (like the one the CN3 has) reduces reading distances by about 4%. EA11 Standard Minimum Reading Distances Symbology...

  • Page 9: Using The Batteries

    If you fail to replace the battery immediately, you may lose important state or applications. Note: If the CN3 is not on external power and the battery pack is removed, it will suspend when the battery pack is removed. When the battery reaches the end of its useful life, the spent battery should be disposed of by a qualified recycler or hazardous materials handler.

  • Page 10: Maximizing Battery Life

    Press the power switch to turn off the CN3. Store CN3s for more than a day. If you are storing the CN3 for a few days, like over the weekend, install the charged battery or attach the CN3 to a power source.

  • Page 11: Checking The Battery Status

    Chapter 1 — Using the Computer To install the battery, insert the tabs on the charged battery into the CN3 and snap the battery into place. Checking the Battery Status The Battery Status LED above your CN3 display, as shown in the following illustration, indicates the status of your battery.

  • Page 12: Understanding The Low Battery Warnings

    1 Tap Start > Settings > the Personal tab > the Sounds & Notifications icon, then tap the Sounds tab. 2 Check for which features the CN3 should enable sounds, then tap ok to close. CN3 Mobile Computer User’s Manual...
  • Page 13 • Tap the Volume icon, then drag the slider to the bottom, or tap Off. Note the change in the Volume icon. If your CN3 has a built-in phone, tapping Off will disable both the beeper and the phone. To disable just the beeper, drag the left slider bar to its bottom position, like in the following illustration.

  • Page 14: Using The Color Camera

    Using the Color Camera The 1.3 megapixel color camera with flash is an optional feature that is factory-installed into the upper back of the CN3, as shown in the following illustration. You can take photos in either high-resolution or a compressed formats, with resolutions up to 1200x1024 pixels.

  • Page 15: Using The Intermec Settings Applet

    Reference Manual available online at www.intermec.com. To access the Intermec Settings applet 1 Tap Start > Settings > the System tab > the Intermec Settings icon to access the applet. 2 Tap (+) to expand any of the settings, then select any of the subsequent settings to make changes via drop-down lists or fields.

  • Page 16: Using The Keypad

    Chapter 1 — Using the Computer Using the Keypad The CN3 can have a QWERTY keypad, a numeric keypad, or a 10-key keypad. The available keypads are dependent on your model of CN3. Numeric Keypad QWERTY Keypad CN3e 10-Key Keypad...

  • Page 17: Using The Color-Coded Keys

    • On the numeric keypad, press C, then the [1] key. The Caps Lock LED lights up green to show that the CN3 is in the Caps Lock mode. The keypad stays in this mode until you press a color key again.

  • Page 18: Entering Characters On The Numeric Keypad

    C [1] [8] [8] [8] C [9] C [1] [9] C [9] [9] C [1] [9] [9] C [9] [9] [9] C [1] [9] [9] [9] C [9] [9] [9] [9] C [1] [9] [9] [9] [9] CN3 Mobile Computer User’s Manual...

  • Page 19: Using The Power Switch

    Note: Coming Out of the Idle Mode When there is no activity, the CN3 goes into idle mode or turns off the backlight after one minute. Press a key or tap the screen to resume activity. To change the time when to turn off the backlight 1 Tap Start >...

  • Page 20: Using The Screen

    Chapter 1 — Using the Computer After two minutes of no activity, the CN3 goes into an unattended mode or turns off. Press the power switch to resume activity. To change the time when to turn off the CN3 1 Tap Start > Settings > the System tab > the Power icon > the Advanced tab.

  • Page 21: Software Tools

    Chapter 1 — Using the Computer The CN3 has a stylus you can use to select items and enter information. Touch the screen once with the stylus to select options, close applications, launch applications, or launch menus from the taskbar.

  • Page 22: Front Speaker

    2 Tap On, then move the system volume slider to the desired volume level. Up is louder, down is quieter. If your CN3 comes with a phone, be sure to use the left slider bar for the volume for the rear speaker, and to use the right slider bar for the phone (front speaker).

  • Page 23: Using The Status Leds

    Chapter 1 — Using the Computer To use the Intermec Settings applet to adjust the volume 1 Tap Start > Settings > the System tab > the Intermec Settings icon. 2 Tap (+) to expand Device Settings > Beeper > Volume.

  • Page 24: Using The Storage Card

    The blue light may stay on for up to 30 seconds, but will usually turn off after less than 10 seconds. During this time, do not toggle the CN3 on or off and do not remove the battery, or you may corrupt the CN3.

  • Page 25: Setting Vibrate Mode

    To set your CN3 to vibrate • Tap the Volume icon at the top of the screen, then tap Vibrate. If your CN3 has a built-in phone, this sets both the volume and the phone to vibrate. Note the icon change.
  • Page 26 Chapter 1 — Using the Computer To set your CN3 to vibrate using the Intermec Settings applet 1 Tap Start > Settings > the System tab > the Intermec Settings icon. 2 Tap (+) to expand Device Settings > Beeper > Vibrate, then tap Vibrate.

  • Page 27: Setting Up Gps On Your Cn3

    • Provides access to GPS data without requiring applications to recognize and parse NMEA syntax. Using the GPSID Installed on the CN3 To use the GPSID installed on your CN3, you need to configure the GPSID settings. To configure your GPSID settings 1 Tap Start, and select Settings.
