GMT200 User manual
GSM/GPRS/GPS Tracker

User Manual

TRACGMT200UM001
Revision: 1.00
TRACGMT200UM001
GMT200
http://www.queclink.com
sales@queclink.com
-10-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GMT200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Queclink GMT200

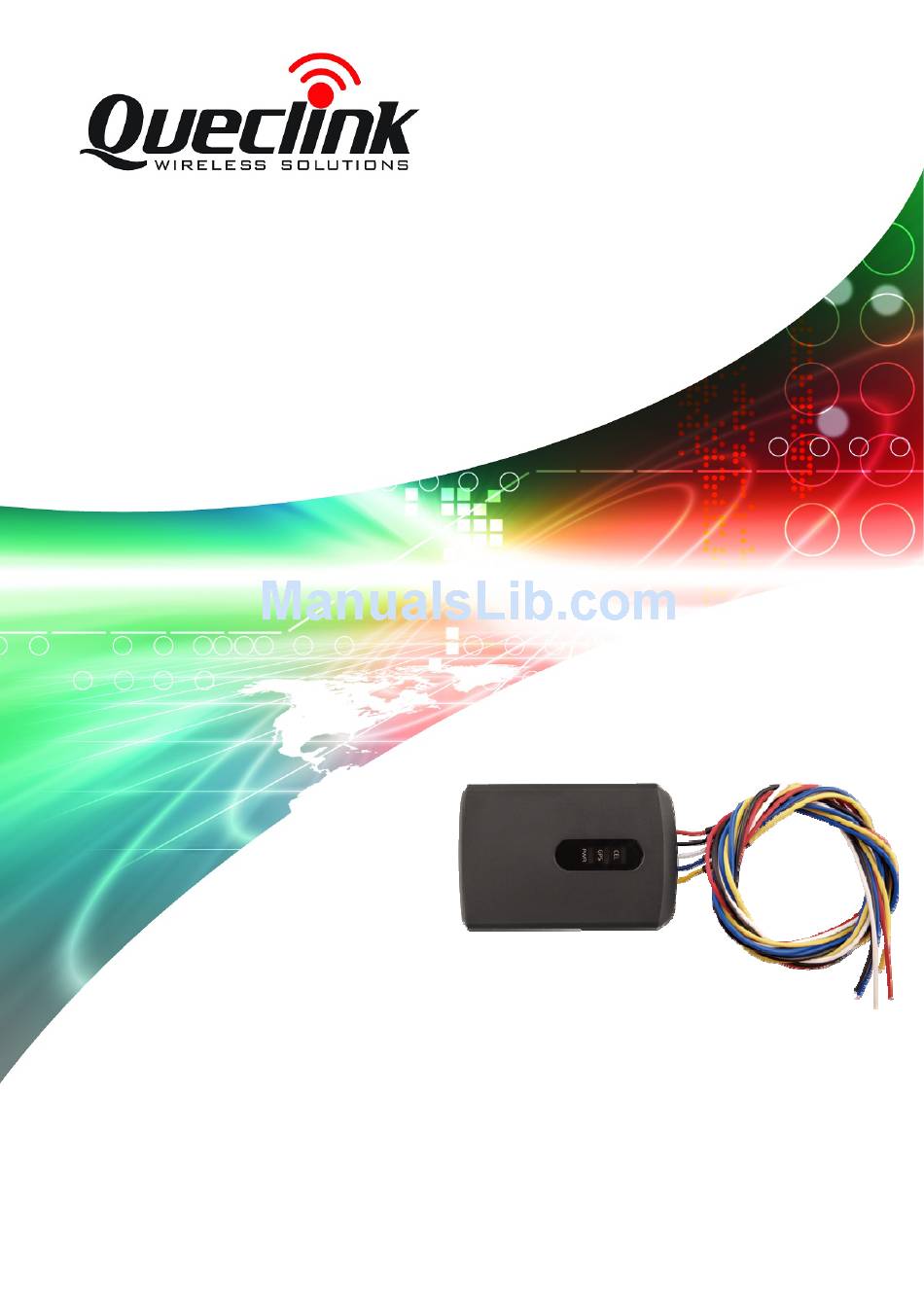

  • Page 1: User Manual

    GMT200 User manual GMT200 GSM/GPRS/GPS Tracker User Manual TRACGMT200UM001 Revision: 1.00 http://www.queclink.com TRACGMT200UM001 -10- sales@queclink.com...
  • Page 2 TRACGMT200UM001 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession.
  • Page 3: Table Of Contents

    GMT200 User Manual Contents  1. Introduction ........................... 7  1.1. Reference ..........................7  1.2. Terms and Abbreviations ..................... 7  2. Product Overview ......................... 8  2.1. Appearance .......................... 8  2.2. Parts List ..........................9  2.3. Interface Definition ......................9  3. Getting Started ..........................10 ...
  • Page 4 TABLE 2: TERMS AND ABBREVIATIONS ..................7   TABLE 3: PART LIST ..........................9   TABLE 4: DESCRIPTION OF GMT200 USER CABLE ................ 9   TABLE 5: ELECTRICAL CHARACTERISTICS OF IGNITION DETECTION ......... 12   TABLE 6: ELECTRICAL CHARACTERISTICS OF THE DIGITAL INPUTS ........12  ...
  • Page 5 TYPICAL IGNITION DETECTION ................12   FIGURE 5.   TYPICAL DIGITAL INPUT CONNECTION .............. 13   FIGURE 6.   TYPICAL CONNECTION WITH RELAY ..............13   FIGURE 7.   GMT200 LED ON THE CASE ..................14   TRACGMT200UM001 - 5 -...
  • Page 6 GMT200 User Manual Revision History Revision Date Author Description of change V1.00 2016-09-13 World Initial TRACGMT200UM001 - 6 -...
  • Page 7: Introduction

    GMT200 User Manual 1. Introduction The GMT200 is a water resistant GPS tracker designed for applications requiring low current drain such as motorcycles and boats. Its built-in GPS receiver has superior sensitivity and fast time to first fix. Its quad band GPRS/GSM subsystem supports 850/900/1800/1900 MHz allowing the GMT200's location to be monitored in real time or periodically tracked by a backend server and mobile devices.
  • Page 8: Product Overview

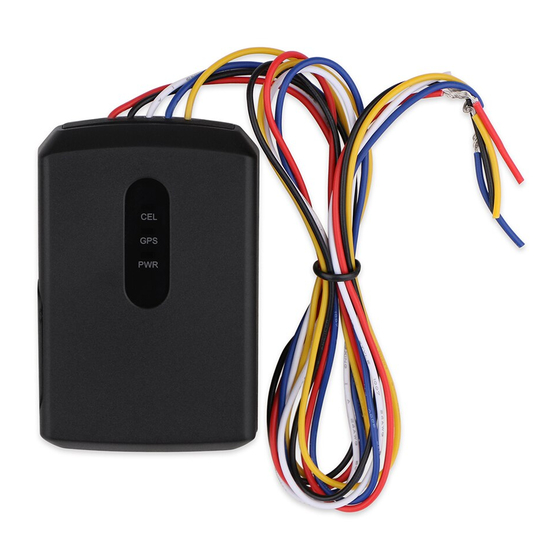

    GMT200 User Manual 2. Product Overview 2.1. Appearance Figure 1. Appearance of GMT200 TRACGMT200UM001 -10-...
  • Page 9: Parts List

    DATA_CABLE_M(Optional) 2.3. Interface Definition There are 5 wires on GMT200 User Cable which contain the connection for power, ignition input, digital input, digital output etc. The user cable’s definition is shown in following table. Table 4: Description of GMT200 User Cable...
  • Page 10: Getting Started

    - Use external power to turn on. - Connect GMT200 to PC with user cable. When the external power or USB cable removed,GMT200 will switch to internal backup battery and keep on running. When internal backup battery is exhausted, GMT200 will give a report and then turn off.
  • Page 11: Reset Key

    3.4. USB connector There is a USB connector on GMT200 which is beside the SIM card holder. With the USB connector and the DATA_CABLE_M, user can configure the system or upgrade the firmware. When the DATA_CABLE_M is plugged in, the system will boot.
  • Page 12: Ignition Detection

    3.7. Digital Input There is a general purpose digital input which is the blue wire on GMT200 User Cable, and it is a negative trigger. The digital input is recommended to support panic button function.
  • Page 13: Digital Output

    Figure 5. Typical Digital Input Connection 3.8. Digital Output There is a Digital Output for relay on GMT200, and it is low side 150mA max with latch .It can be connected relay which maximum switching voltage is 12VDC and maximum continuous current is 20A.
  • Page 14: Device Status Led

    GMT200 User Manual 3.9. Device Status LED Figure 7. GMT200 LED on the Case TRACGMT200UM001 -12 -...
  • Page 15 GMT200 User Manual Table 7: Definition of Device status and LED Device status LED status Device is searching GSM network Fast flashing (note1) (Note3) Device has registered to GSM network. Slow flashing (Note4) SIM card needs pin code to unlock.
