Page 1: User Manual
GL200 GSM/GPRS/GPS Tracker User Manual TRACGL200UM001 Revision: 1.02 http://www.queclink.com sales@queclink.com... - Page 2 TRACGL200UM001 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession.
-
Page 3: Table Of Contents
2.6. Ignition Detection........................8 3. Getting Started ..........................9 3.1. Parts List..........................9 3.2. Battery Charging .......................10 3.3. GL200 External Cable Interface..................10 3.4. Install SIM Card ........................ 11 3.5. Install Device Into The Holder ..................11 3.6. Turn on/Turn off ........................ 11 4. Troubleshooting and Safety info ....................13 4.1. -
Page 4: Revision History
GL200 User Manual 0. Revision history Revision Date Author Description of change 1.01 2010-09-19 Ella HUANG Initial 1.02 2010-12-20 Ella HUANG 1. Modify interface define and pictures in chapter 2.4,2.6,3.3; TRACGL200UM001 - 3 -... -
Page 5: Introduction
GL200 User Manual 1. Introduction GL200 is a powerful GPS locator which is designed for vehicle, pets and assets tracking. With superior receiving sensitivity, fast TTFF and GSM frequencies 850/900/1800/1900. Its location can be real time or schedule tracked by backend server or specified terminals. Based on the... -
Page 6: Product Overview

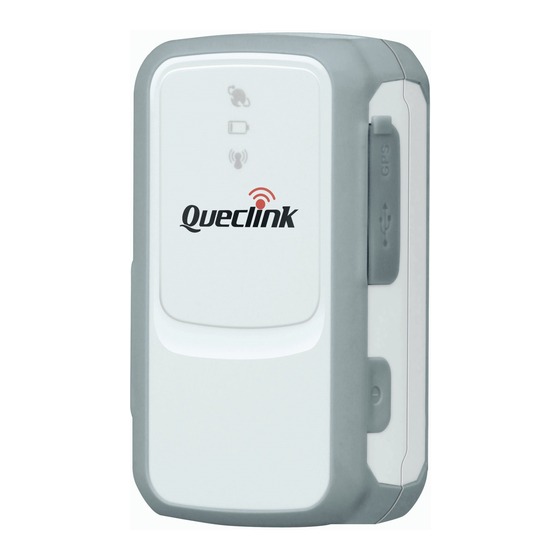

2.1. Appearance 2.2. Buttons/Mini USB Interface Description Button /Mini USB Interface Description Power Key Turn on GL200 Turn off GL200 when without charging. (If power key is enabled) Function Key Geo-Fence mode Long press the key to enable/disable Geo-Fence ID0... -
Page 7: Leds Description
2.4.1. External DC Charger Interface The Pin2 on Mini-USB connector are used for charging and named as VCHG pin, It can be connected to a 5V DC power supply to power GL200 and charge the internal battery. TRACGL200UM001 - 6 -... -
Page 8: External Battery Interface
3.7V Li-ion or Li-Polymer battery to power GL200. 2.5. External GPS antenna specification There is a MMCX RF connector on GL200 and it is for external GPS antenna. The specification of the external GPS antenna is listed in following table. -
Page 9: Ignition Detection
Impedance: 50Ω ﹤2 VSWR: Noise figure: <3 Connector MMCX 2.6. Ignition Detection The Pin 7 on Mini-USB connector is for ignition detection when GL200 is used in vehicle tracking application, It is named as IGN_IND pin. TRACGL200UM001 - 8 -... -
Page 10: Getting Started
AC-DC Power Adapter It is used to charge the internal (Standard accessory) battery of GL200. GL200 Sheath It is used to attach the GL200 to (Optional accessory) belt. Car Cigarette Charger It is used to power the GL200 with (Optional accessory) the cigarette power output on the vehicle. -
Page 11: Battery Charging
Note: Before the first time using GL200, please full charge the battery. 3.3. GL200 External Cable Interface GL200 External Cable is a cable with a Mini USB connector and four wires which include the external power interface and ignition detect for GL200. Please find the detail description in following table. -
Page 12: Install Sim Card
3.5. Install Device Into The Holder Please install the GL200 into the holder follow the following process. 3.6. Turn on/Turn off Turn on: Method 1: Press the Power key at least 3 seconds and release it to turn on GL200. At TRACGL200UM001 - 11 -... - Page 13 Method 1: Press the power key about 2 seconds; PWR LED will fast flash and then turn off, it indicates that GL200 is turned off. The time of power off is depended on the quality of network. The maximum time of power off is 90 seconds. It is only valid to turn off when using internal battery.
-
Page 14: Troubleshooting And Safety Info
GL200 User Manual 4. Troubleshooting and Safety info 4.1. Troubleshooting Trouble Possible Reason Solution After GL200 is turned on, the The SIM card is not inserted. Please insert the SIM card into GSM LED flashes quickly GL200. always. The signal is too weak;... -
Page 15: Safety Info
Please do not put the device on the overheating or too humid place, avoid exposure to direct sunlight. Too high temperature will damage the device or even cause the battery explosion. Please do not use GL200 on the airplane or near medical equipment. TRACGL200UM001...
