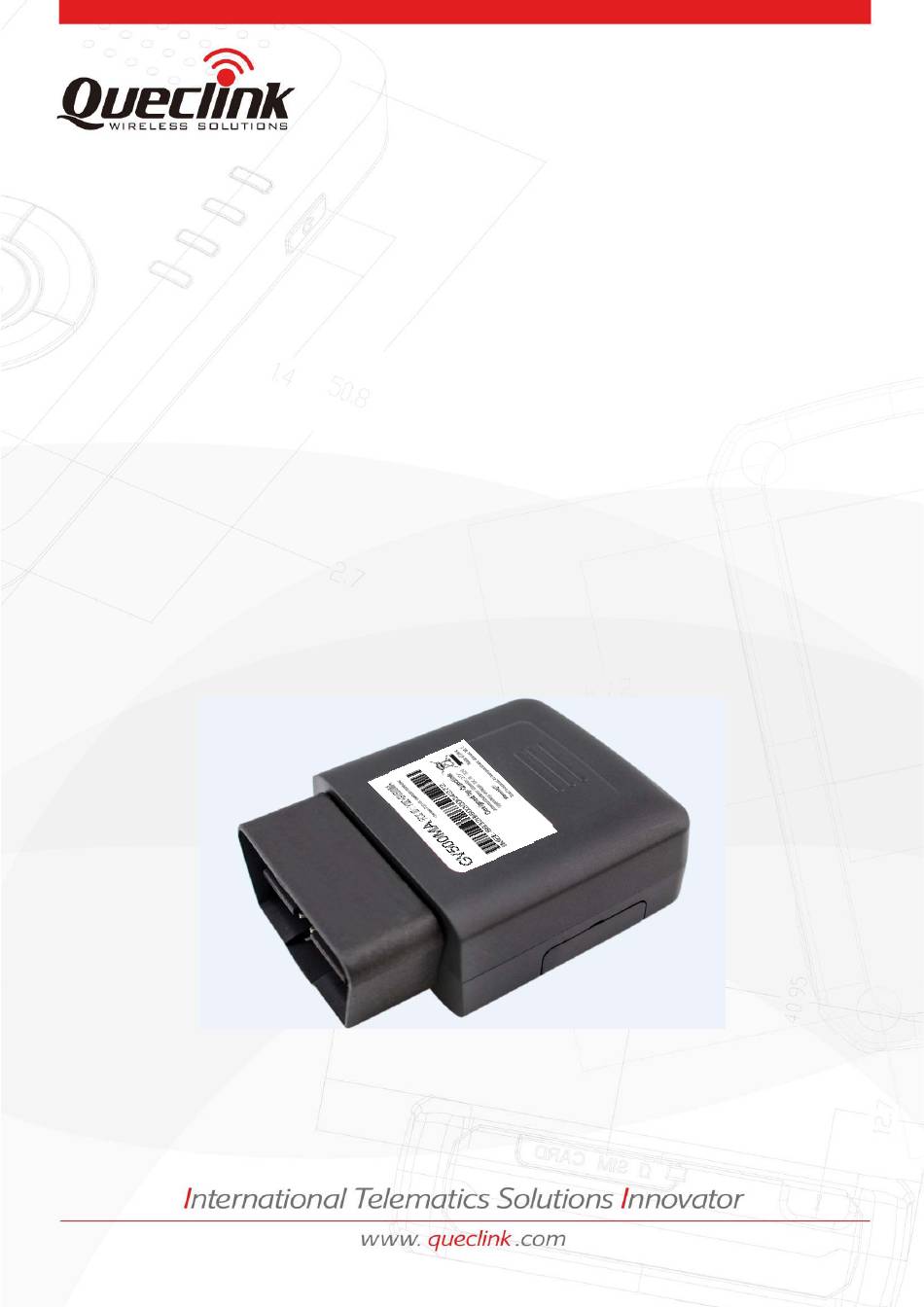

- Page 1 GV500 User Manual GPS Tracker GV500MA User Manual TRACGV500MAUM001 Version:1.01 TRACGV500UM001 ‐ 0 ‐ ...
- Page 2 Furthermore, system validation of this product designed by Queclink within a larger electronic system remains the responsibility of the customer or the customer’s system integrator. All specifications supplied herein are subject to change.
-
Page 3: Table Of Contents
GV500MA User Manual Contents Contents ............................ 2 Table Index ............................ 3 Figure Index ............................ 4 0. Revision history .......................... 5 1. Introduction ........................... 6 1.1. Reference ........................... 6 1.2. Terms and Abbreviations .................... 6 2. Product Overview .........................7 2.1. Description .........................7 2.2. Parts List ..........................8 2.3. Interface Definition ......................8 3. Getting Started ..........................9 3.1. Opening the Case .......................9 3.2. Closing the Case .........................10 3.3. Installing a SIM Card ......................10 ... - Page 4 GV500MA User Manual Table Index TABLE 1: GV500MA PROTOCOL REFERENCE .................... 6 TABLE 2: TERMS AND ABBREVIATIONS .................... 6 TABLE 3: PART LIST ...........................8 TABLE 4: DESCRIPTION OF OBD II CONNECTIONS .................. 8 TABLE 5: DEFINITION OF DEVICE STATUS AND LED ..................11 TRACGV500UM001 ‐ 3 ‐ ...
- Page 5 GV500MA User Manual Figure Index FIGURE 1: APPEARANCE OF GV500MA ..................... 7 FIGURE 2: THE OBD II CONNECTOR ON THE GV500MA ................ 8 FIGURE 3: OPENING THE CASE ......................... 9 FIGURE 4: CLOSING THE CASE ........................10 FIGURE 5: SIM CARD INSTALLATION ......................10 FIGURE 6: GV500MA LED ON THE CASE .................... 11 TRACGV500UM001 ‐ 4 ‐ ...
-
Page 6: Revision History
GV500MA User Manual 0. Revision history Revision Date Author Description of change 1.00 2018-11-22 Vincent.tang Initial TRACGV500UM001 ‐ 5 ‐ ... -
Page 7: Introduction

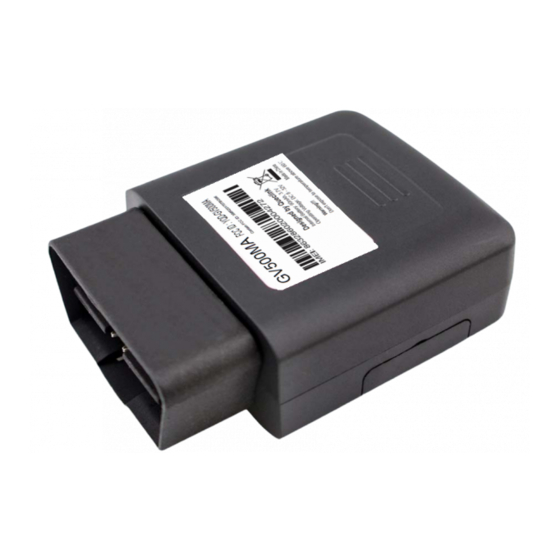

GV500MA User Manual 1. Introduction The GV500MA is a vehicle tracking device that plugs into a vehicle's OBD II port. It's compact design allows easy installation. Its built in GNSS receiver has superior sensitivity and fast time to first fix. Its subsystem supports GPRS/EGPRS/LTE allowing the GV500MA's location to be monitored in real time or periodically tracked by a backend server and mobile devices. -
Page 8: Product Overview
2. Product Overview 2.1. Description GV500MA is based on the OBD II interface GNSS vehicle tracking device, compact design and easy to install. GV500MA contains a 5PIN micro USB connector, an internal GPRS/ EGPRS/LTE antenna, two internal GNSS antennas and two LEDs. -
Page 9: Parts List
Name Picture GV500MA Locator 49.49mm*48.5mm*21.9mm 2.3. Interface Definition The GV500MA has an OBD II connector. The sequence and definition of the OBD II connector are shown in following figure: 9 1 2 3 4 5 6 7 Figure 2. The OBD II connector on the GV500MA Table 4: Description of OBD II Connections Index ... -
Page 10: Gettingstarted
GV500MA User Manual 15 reserved 16 PWR External DC power input, 8-32V 3. GettingStarted 3.1. Opening the Case Insert the triangular-pry-opener into the gap of the case as shown below, push the opener up until the case unsnapped. Figure 3. Opening the Case TRACGV500UM0012 ... -
Page 11: Closing The Case
GV500MA User Manual 3.2. Closing the Case The step of closing case is shown as following: Figure 4. Closing the Case 3.3. Installing a SIM Card Open the rubber plugandInsert the SIM card into the holder as shown below Figure 5. SIM Card Installation TRACGV500UM0013 ... -
Page 12: Device Status Led
GV500MA User Manual 3.4. Device Status LED Figure 6. GV500MA LED on the Case Table 5: Definition of Device status and LED Device status LED status Device is searching GPRS/EGPRS/LTE network CELL Fast flashing (note1) (Note3) Device has registered to GPRS/EGPRS/LTE network.
