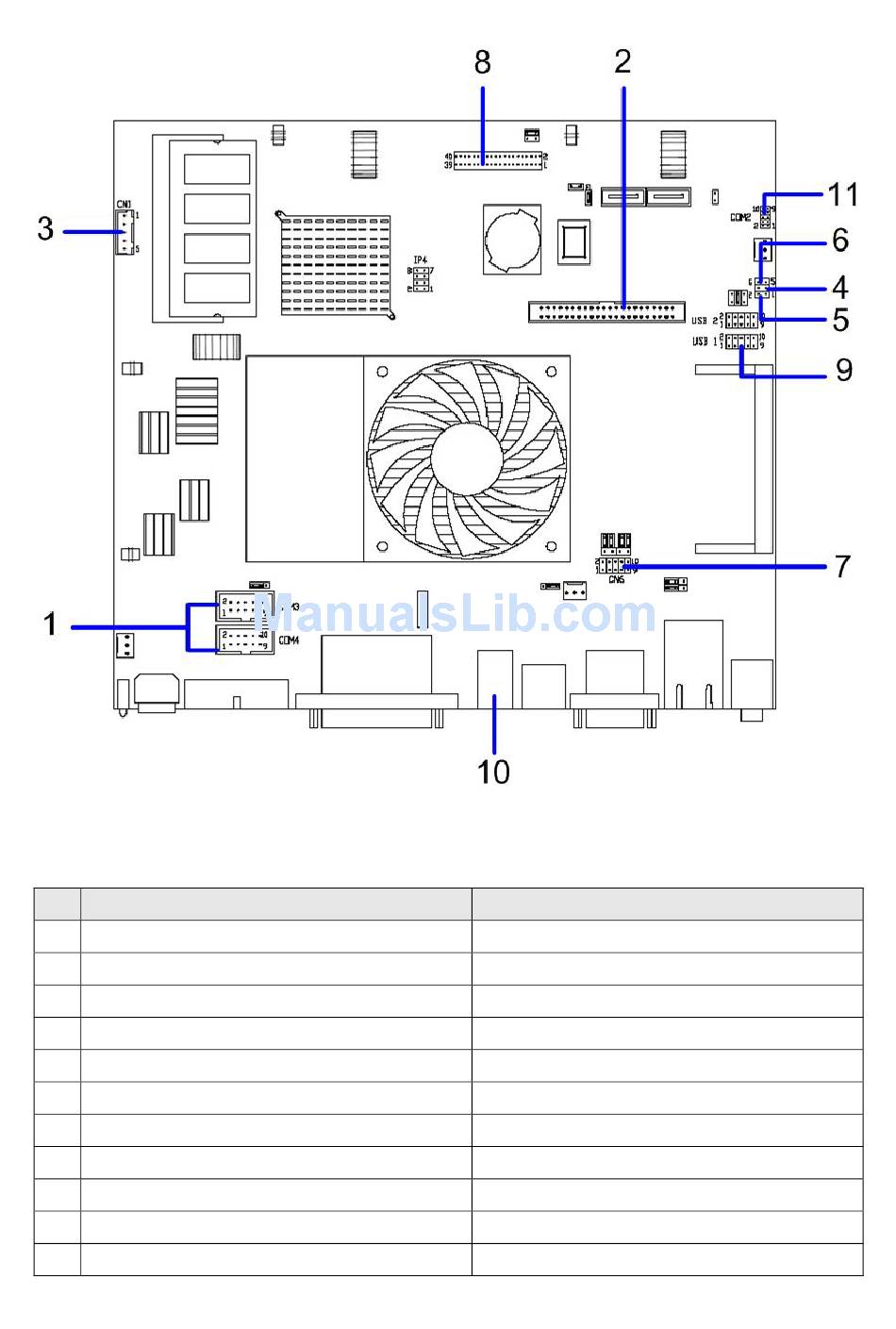

Figure 3 Mainboard Layout - Fametech POStation 7000 Series Service Manual

No. Part No.
1 CP-CBL-POS-7000-COM3&4
2 CP-CBL-POS-7000-HDD
3 CP-CBL-POS-7000-INT
4 CP-CBL-POS-7000-LED-HDD
5 CP-CBL-POS-7000-LED-PW
6 CP-CBL-POS-7000-SW-B27cm
7 CP-CBL-POS-7000-MMSR KUR
8 CP-CBL-POS-7000-LVDS
9 CP-CBL-POS-7000-TH-U
10 CP-CBL-POS-7000-VFD-PW
11 CP-CBL-POS-7000-I-BUTTON

Figure 3 Mainboard Layout

Description
COM Port DB9 RS-232 Cable
HDD Cable
Invertor Cable
HDD LED Cable
Power LED Cable
Power Switch Cable
MSR Cable (Option)
LVDS Cable
Touch Control Board Cable (USB)
VFD/Monitor Power Cord (Option)
I-Button Cable
