III System Disassembly

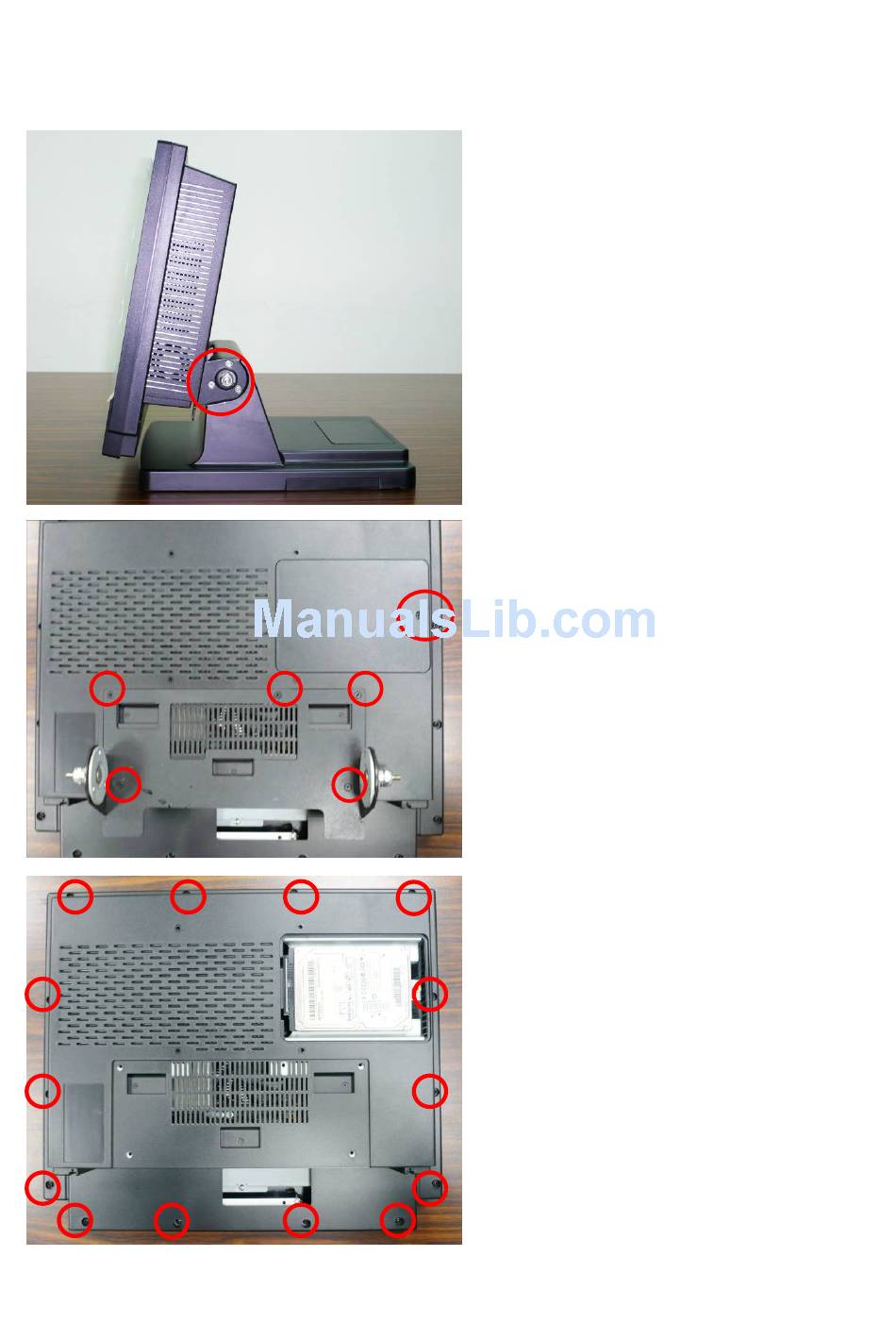

1. Remove the hinge swivel covers and
loosen the screw x 6 on both sides.
2. Carefully take off the system from the
aluminum base. Loosen the screw x 1 to
remove the HDD cover and the screw x 5
to remove the hinge holder.
3. Loosen the screw x 14 to remove the LCD
panel rear cover.
- 10 -
