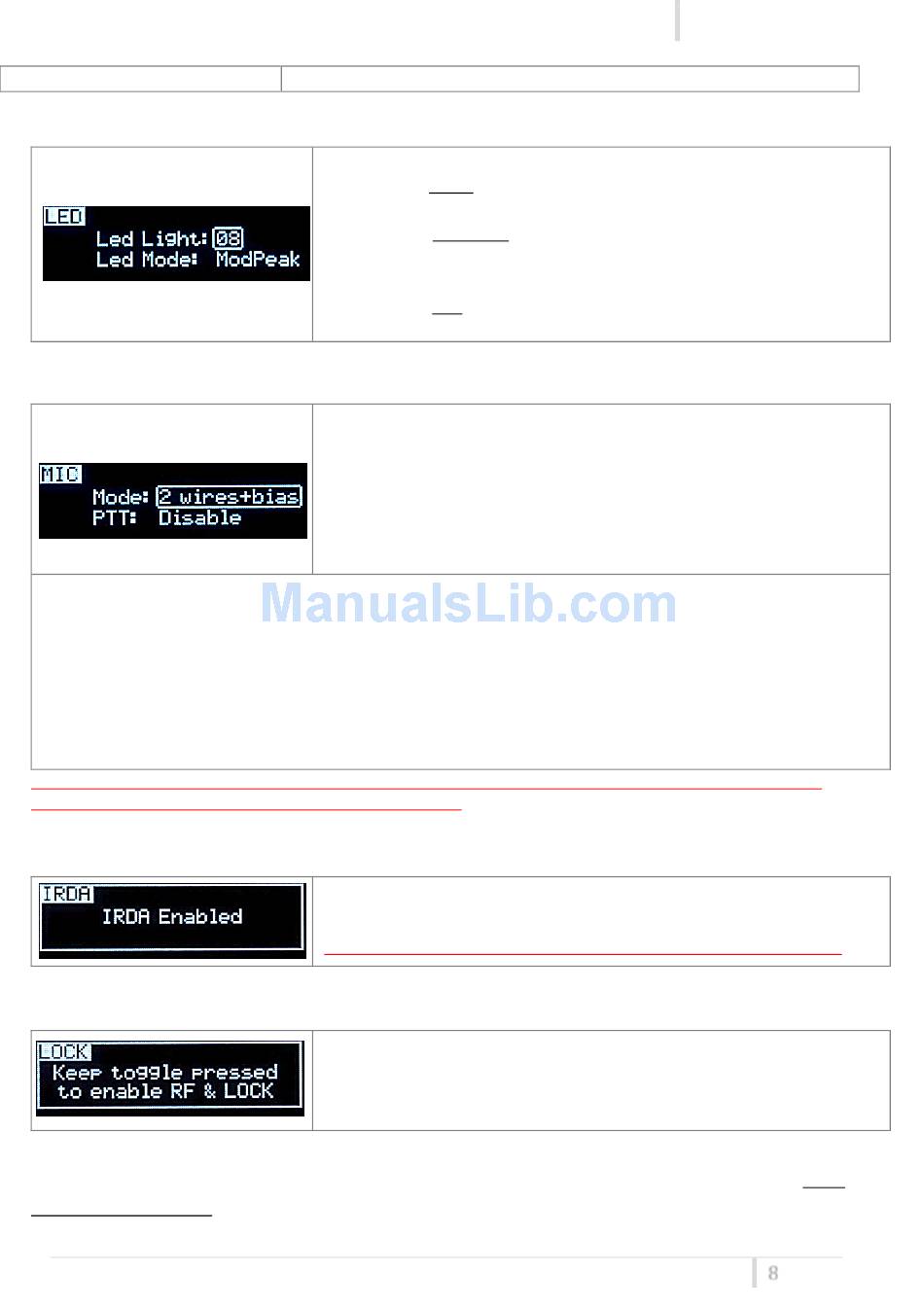

<LED> menu
This menu can be entered by scrolling selector.
<MIC> menu
This menu can be entered by scrolling selector.
PTT setting defines how and what information the transmitter has to send in normal use or when the
PTT button is pushed.
- Disable: when the PTT button is pushed, nothing happen. (the transmitter sends AF+Tone squelch)
- Normal: when the PTT button is pushed, the transmitter send a different RF signal. According to the
receiver configuration the audio can be enabled/disable on LINE (and/or COM).
- Muting: the transmitter doesn't send the audio. The voice is cut, it doesn't enter to the microphone
- No Data: the transmitter sends neither tone squelch nor battery data.
Use the selector to change values (<+/->) and <click> to confirm.
NOTE: For DPA option (2 pin microdot audio connector), even if the MIC mode menu allows to set one of the 5
MIC modes, only 2 wires or 2 wires+bias mode are possible.
<IRDA> menu
This menu can be entered by scrolling selector.
<LOCK> menu
This menu can be entered by scrolling selector.
<BOOTLOAD> menu
This menu can be entered only turning on the transmitter while pushing at the same time both quick
channel setup buttons (<ch> & <gain>).
MTP40S-US/USX User Manual
Use the selector to change values (<+/->) and <click> to confirm.
Led Light allows to change the brightness of the front led (0÷16) .
Led Mode: - None: allows to disable modulation peak LED on front
led (the red light)
- ModPeak: allows to enable modulation peak LED on
front led (become RED when audio get close to
saturation when the limiter is not enable)
- PTT: allows to enable RED color on front led when PTT
button is pushed.
Mode: Following Mic mode can be setup (for LEMO option)
-2 wires: (PTT is possible) for external audio input
-2 wires + bias: (PTT is possible) for most 2 wires MIC
-3 wires: (no PTT) for most 3 wires MIC
-2 wires & pha: to connect a wired mic thru a 48V adapter (PHA48)
-2 wires+bias & pha:
(with PHA48)
& phantom' MIC
While is this menu MIC can be connected to IRDA for setup or
firmware upgrades.
NOTE: while in this menu display is not automatically turned off.
Long pressing (2 sec.) selector button (click) it locks MTP40S in
transmission mode.
To unlock, long pressing (2 sec.) selector button again.
Allow to connect a '2 wires + bias' MIC or a '2 wires
