Frick QUANTUM Maintenance Manual page 90

QUANTUM HD COMPRESSOR CONTROL PANEL
™
090.040-M (NOV 2016)
MAINTENANCE
Page 90
090.040-WD0038.eps
This drawing appears here for reference purposes only, and is subject to change without notice. When installing, or servicing equipment,
always refer to the actual drawings that are included with the control panel for the latest information.

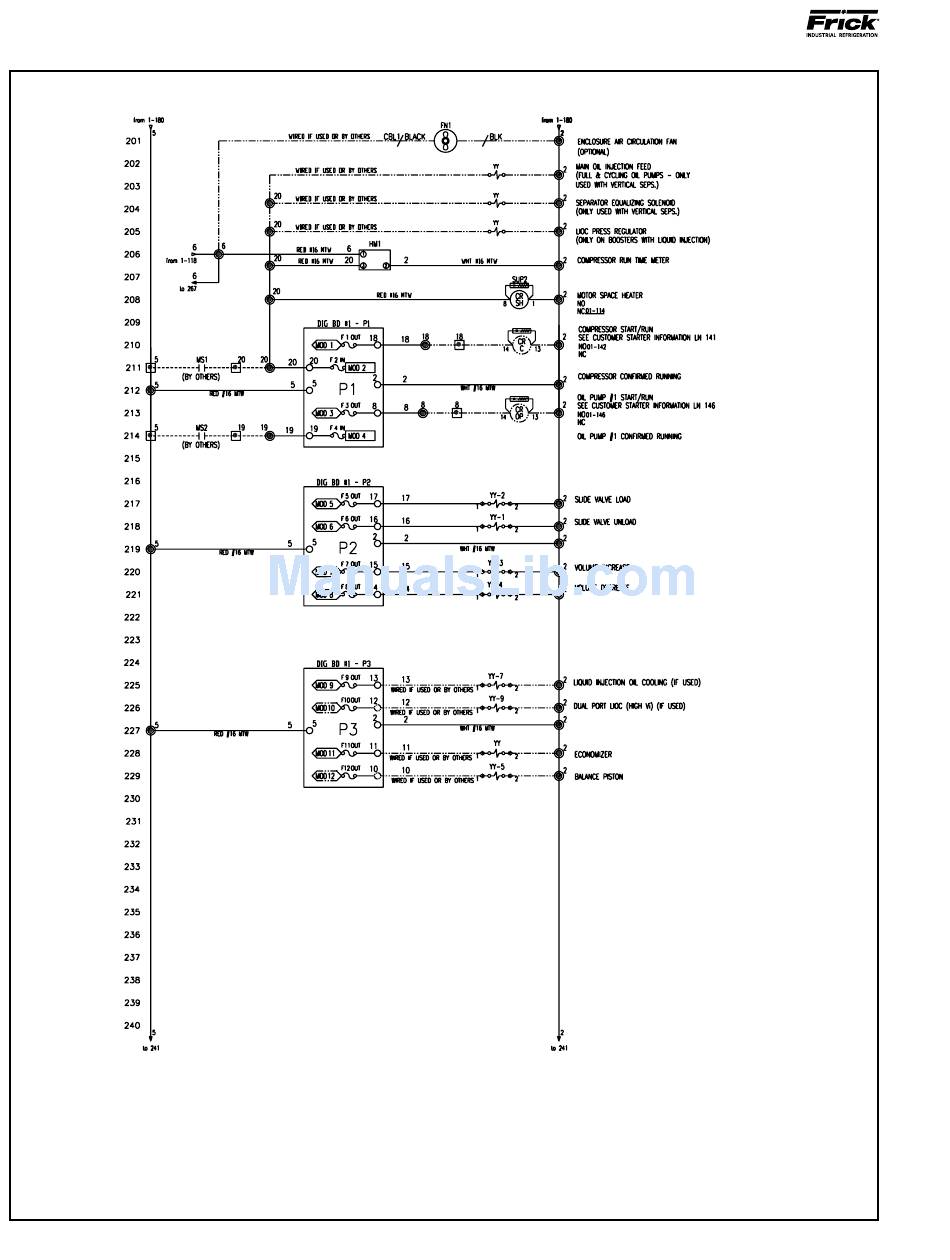

Figure 28b. RWBII Wiring Diagram (Capacity Slide Potentiometer) (3/6)
