QUANTUM
HD COMPRESSOR CONTROL PANEL
090.040-M (NOV 2016)
™
MAINTENANCE
Page 77
090.040-WD0025.eps
This drawing appears here for reference purposes only, and is subject to change without notice. When installing, or servicing equipment,
always refer to the actual drawings that are included with the control panel for the latest information.

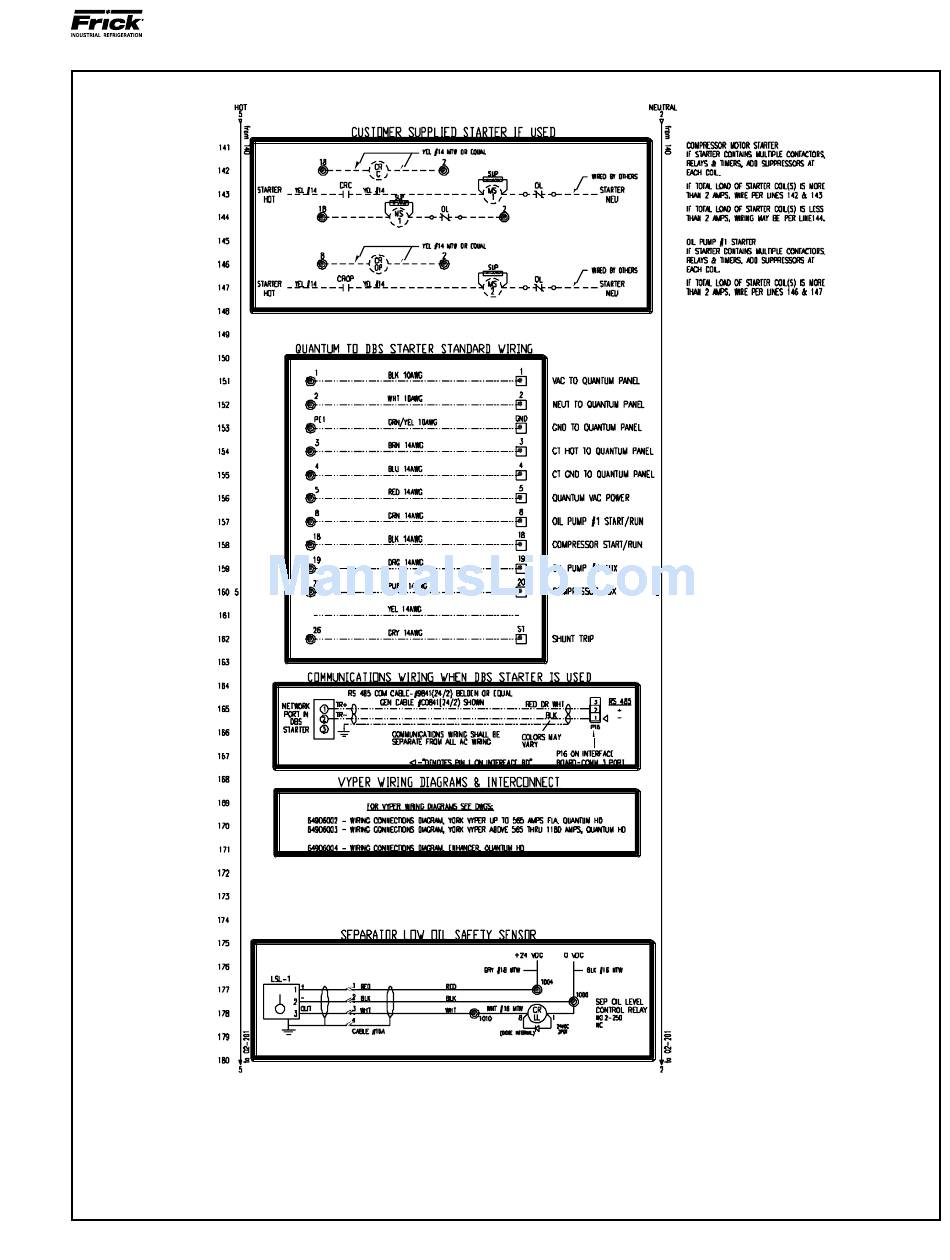

Figure 26a. RWFII Wiring Diagram (Capacity Slide Transmitter) (2/6)
