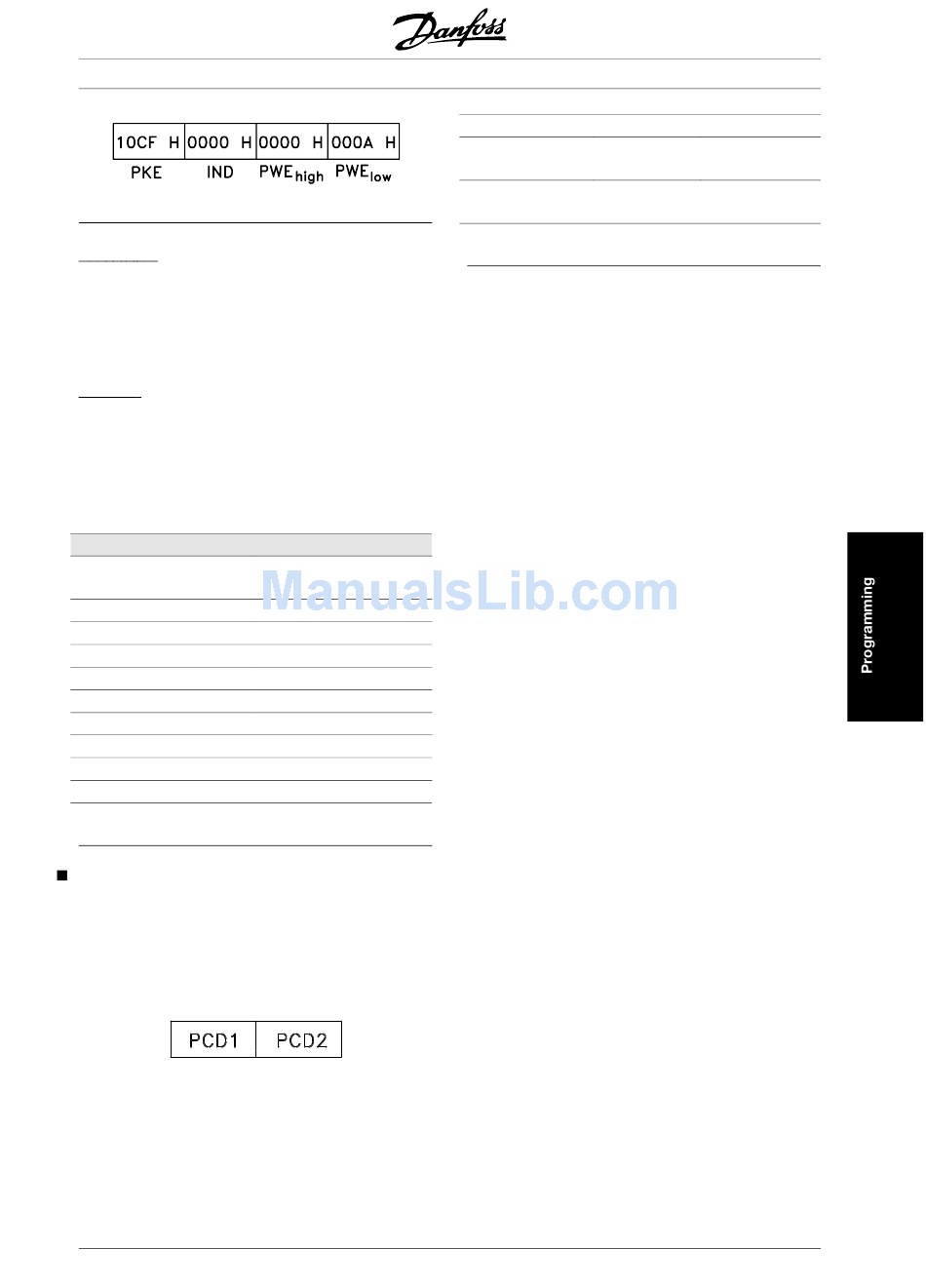

Conversion:
Under the section entitled Factory Settings the vari-
ous attributes of each parameter are displayed. As a
parameter value can only be transferred as a whole
number, a conversion factor must be used to transfer
decimals.
Example:
Parameter 201 Output frequency, low limit f
conversion factor of 0.1. If you wish to preset the
minimum frequency to 10 Hz, the value 100 must be
transferred, as a conversion factor of 0.1 means that
the value transferred is multiplied by 0.1. The value
100 will thus be perceived as 10.0.
Conversion table
Conversion
index
73
2
1
0
-1
-2
-3
-4
-5
Process Words
The block of process words is divided into two
blocks of 16 bits, which always occur in the defined
sequence.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
Control telegram
(master ⇒slave)
Control telegram
(slave⇒master)
has a
MIN
Conversion
factor
0.1
100
10
1
0.1
0.01
0.001
0.0001
0.00001
®
VLT FCD Series
PCD 1
Control word
Status word
PCD 2
Reference-
value
Present outp.
frequency
