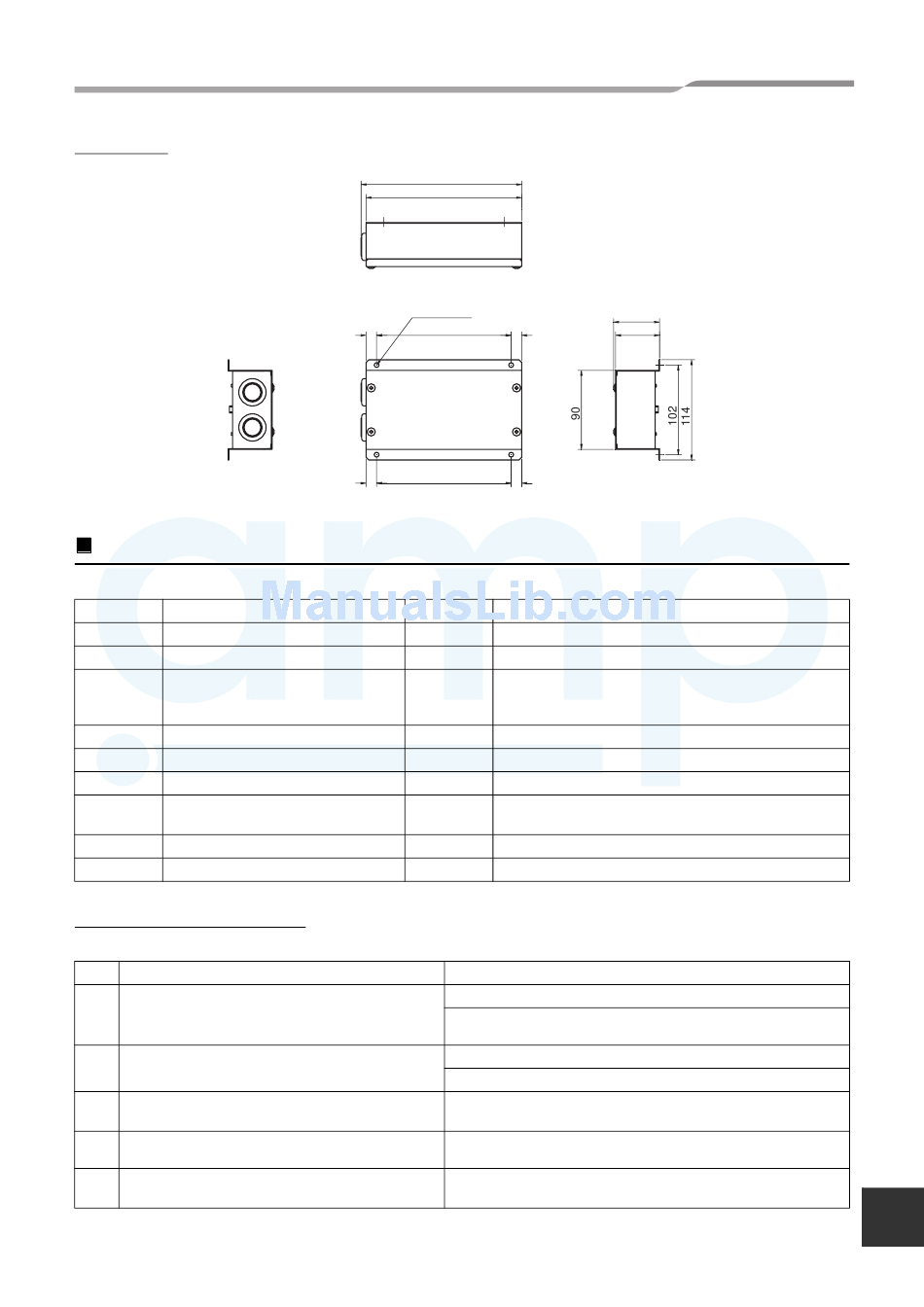

Before installation

Confirm all the parts on the list below are supplied.
Part name
1
Central Controller
2
Power unit
Installation Manual
3
Owner's Manual
Network Configuration Guide
4
CD-R
5
Clamp filter
6
Tie-wrap
7
Screws
8
Brackets
9
Bracket screws
<Specifications for Wiring>
Use the following materials to connect signal lines and power lines (procured on site)
No
1
2
3
4
For digital Input/Output connection
5
(Between the power unit and central controller)
AMP Air Conditioning
12
12
Part name
Line
For TCC-LINK
For RS-485
For power
(220 - 240VAC)
For power supply
182.7
177
6-Ø5.5
12
153
153
12
Quantity
1
1
11 languages
11
English, French, German, Italian, Spanish, Portuguese,
Greek, Dutch, Russian, Turkish, Chinese.
1
1
1
For fixing the clamp filter
4 for fixing the central controller
8
4 for fixing the power unit
2
For combining the central controller and power unit.
4
For combining the central controller and power unit
Type/Wire size/Length
1.25mm², 1000m max. (total length including
2.00mm², 2000m max. air conditioner area)
1.25mm², 500m max. (total length)
H05RN-F or 245IEC57
0.75mm², 50m max.
0.3mm², 100m max.
0.75mm², 20m max.
www.ampair.co.uk | sales@ampair.co.uk
Installation Manual
52.4
50
Remarks
2-core shield wire
2-core shield wire
2-core wire
4-core wire
EN
