Page 1

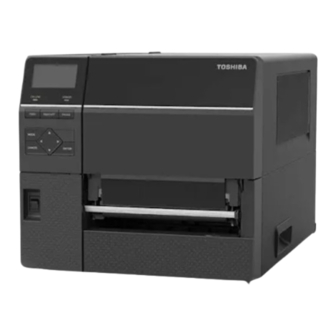

Fanfold Paper Guide Module B-EX906-FF-QM-R Installation Manual 外置き用紙ガイドモジュール B-EX906-FF-QM-R 組込説明書 *00TSCC0328701* B-EX906-FF-QM-R is an optional fanfold paper guide module for the B-EX6T Series. B-EX906-FF-QM-R は、B-EX6T シリーズ用の外置き用紙ガイドモジュールです。 WARNING! 1. Disconnect the power cord before installing the Fanfold Paper Guide Module. 2. Be careful not to pinch your fingers or hands with the covers.
Page 2
2. INSTALLATION PROCEDURE 組込手順 STEP 1. Turn the power off. 手順 1. プリンタの電源スイッチをOFFにし、プリンタから電源コードを抜きます。 STEP 2. Open the top cover. 手順 2. トップカバーを全開にします。 Top Cover トップカバー STEP 3. Secure the fanfold paper guide (rear) with the M-4x6 screw. 手順 3. 外置き用紙ガイドを、付属のネジ(M-4x6)1本で固定します。 Insert Hole 挿入穴...
