UG294: CPT213B SLEXP8019A Kit User's Guide
Power and Operation
4.3 Connected to the Expansion Header
The CPT213B Capacitive Sense Evaluation Board is designed to quickly attach to any EFM32 and EFM8 MCU starter kit and jump-
start the development of capacitive sense capable applications. Attach the CPT213B Capacitive Sense Evaluation Board to the STK
through the expansion header to connect the power and communication pins.
To see how the board works in conjunction with the MCU starter kit, go to the starter kit's [Demos] under [Getting Started] in Simplicity
Studio and run [CPT213B Demo].
For more details on the starter kit, see the corresponding starter kit's user guide.
Note: Not all EFM32 starter kits support this expansion board. See the available demos in Simplicity Studio for more information.

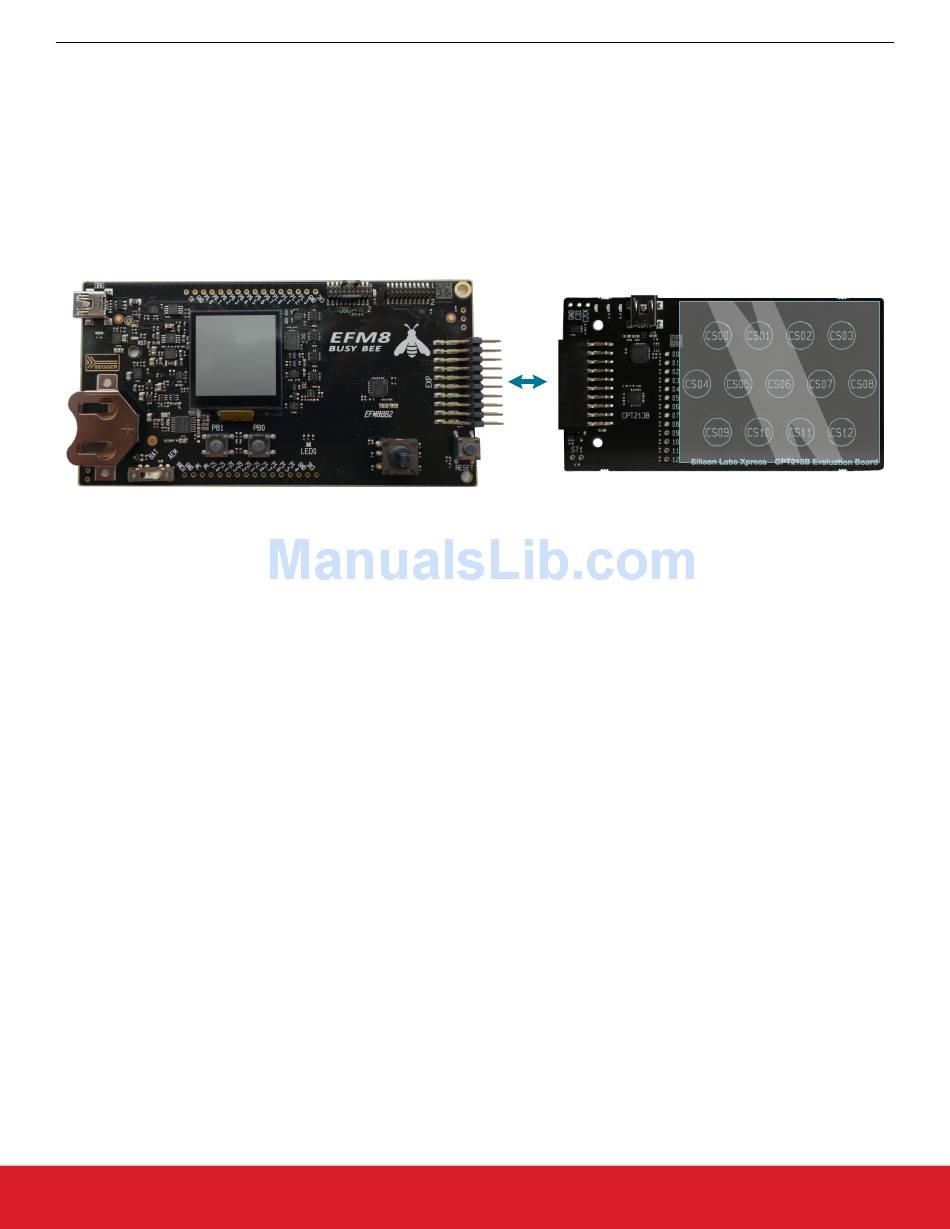

Figure 4.2. CPT213B SLEXP8019A Connected to an Example EFM8BB2 STK
