C P2 11 4 E

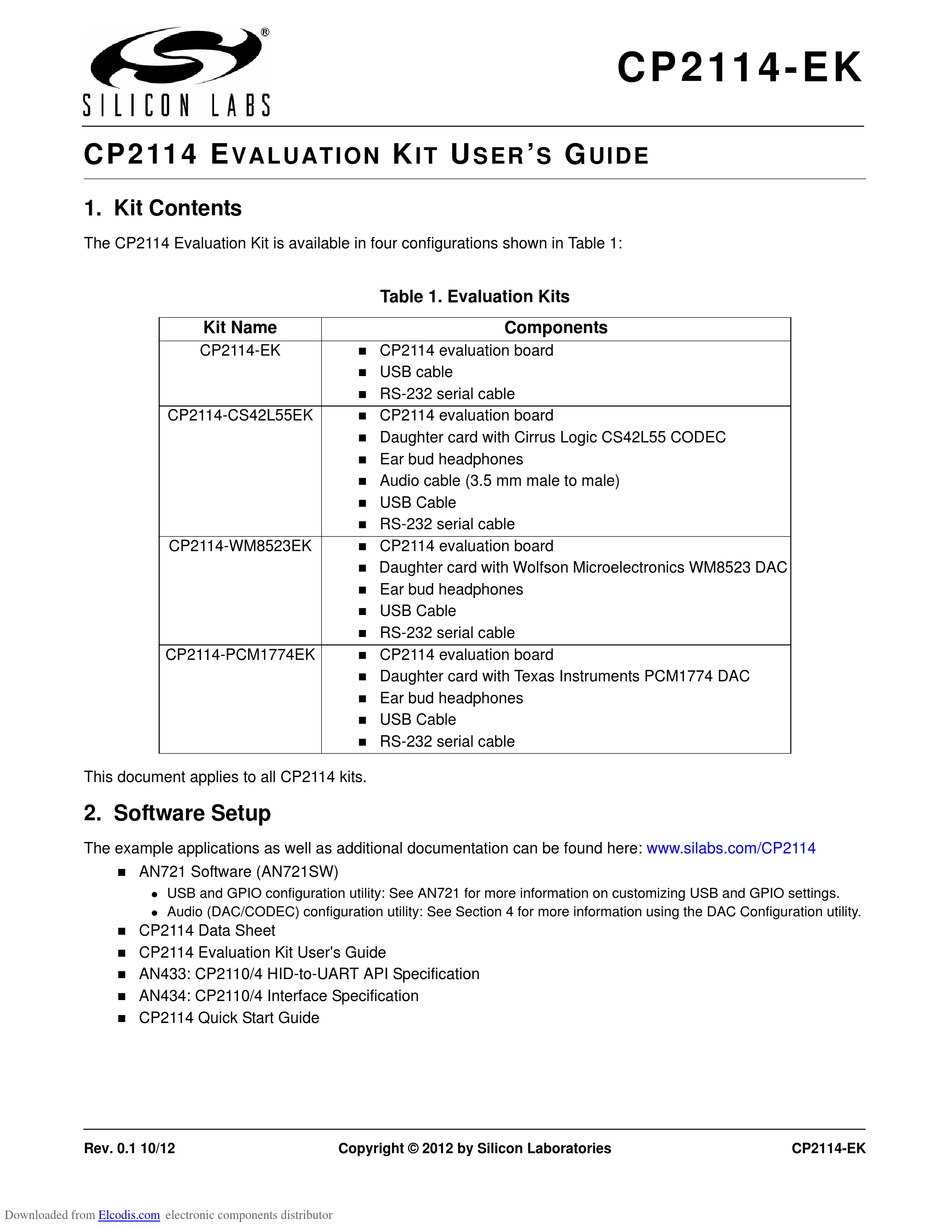

1. Kit Contents
The CP2114 Evaluation Kit is available in four configurations shown in Table 1:
CP2114-CS42L55EK
CP2114-WM8523EK
CP2114-PCM1774EK
This document applies to all CP2114 kits.
2. Software Setup
The example applications as well as additional documentation can be found here:

AN721 Software (AN721SW)
USB and GPIO configuration utility: See AN721 for more information on customizing USB and GPIO settings.

Audio (DAC/CODEC) configuration utility: See Section 4 for more information using the DAC Configuration utility.


CP2114 Data Sheet

CP2114 Evaluation Kit User's Guide

AN433: CP2110/4 HID-to-UART API Specification

AN434: CP2110/4 Interface Specification

CP2114 Quick Start Guide
Rev. 0.1 10/12
Downloaded from
Elcodis.com
electronic components distributor
VALUATION
Kit Name
CP2114-EK



















Copyright © 2012 by Silicon Laboratories
K
U
'
I T
SER
S
Table 1. Evaluation Kits
Components
CP2114 evaluation board
USB cable
RS-232 serial cable
CP2114 evaluation board
Daughter card with Cirrus Logic CS42L55 CODEC
Ear bud headphones
Audio cable (3.5 mm male to male)
USB Cable
RS-232 serial cable
CP2114 evaluation board
Daughter card with Wolfson Microelectronics WM8523 DAC
Ear bud headphones
USB Cable
RS-232 serial cable
CP2114 evaluation board
Daughter card with Texas Instruments PCM1774 DAC
Ear bud headphones
USB Cable
RS-232 serial cable
C P 2 11 4 - E K
G
UIDE
www.silabs.com/CP2114
CP2114-EK
