7.1 Xpress Configurator
[Xpress Configurator] provides the necessary tools to modify the CPT213B SLEXP8019A's functionalities for a custom application in
an easy-to-use GUI. To use [Xpress Configurator] within Simplicity Studio:
1. Provide power to the board by connecting the USB connector to the PC using the provided USB cable.
2. Select [CPT213B] in the [Device] pane.
3. Go to [Compatible Tools] and click the [Xpress Configurator] tile.
4. Select the desired configuration for the engine and peripherals.
More information about each of the options in [Xpress Configurator] is available in AN957: "TouchXpress Configuration and Profiling
Guide." Application notes can be accessed within Simplicity Studio under [Documentation] or on the Silicon Labs website
labs.com/interface-appnotes).
silabs.com | Building a more connected world.

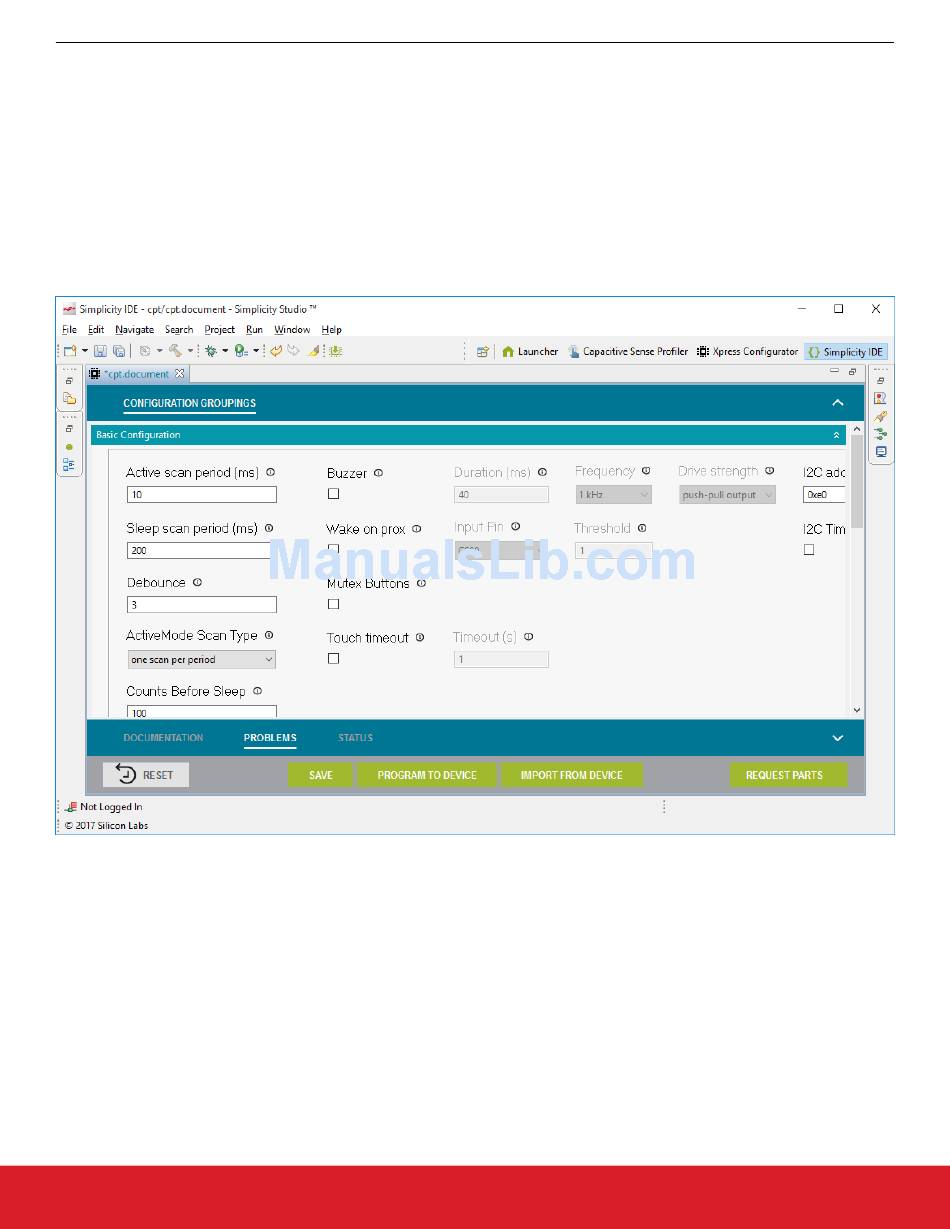

Figure 7.2. Simplicity Studio Xpress Configurator
UG294: CPT213B SLEXP8019A Kit User's Guide
Simplicity Studio
(www.si-
Rev. 0.1 | 12
