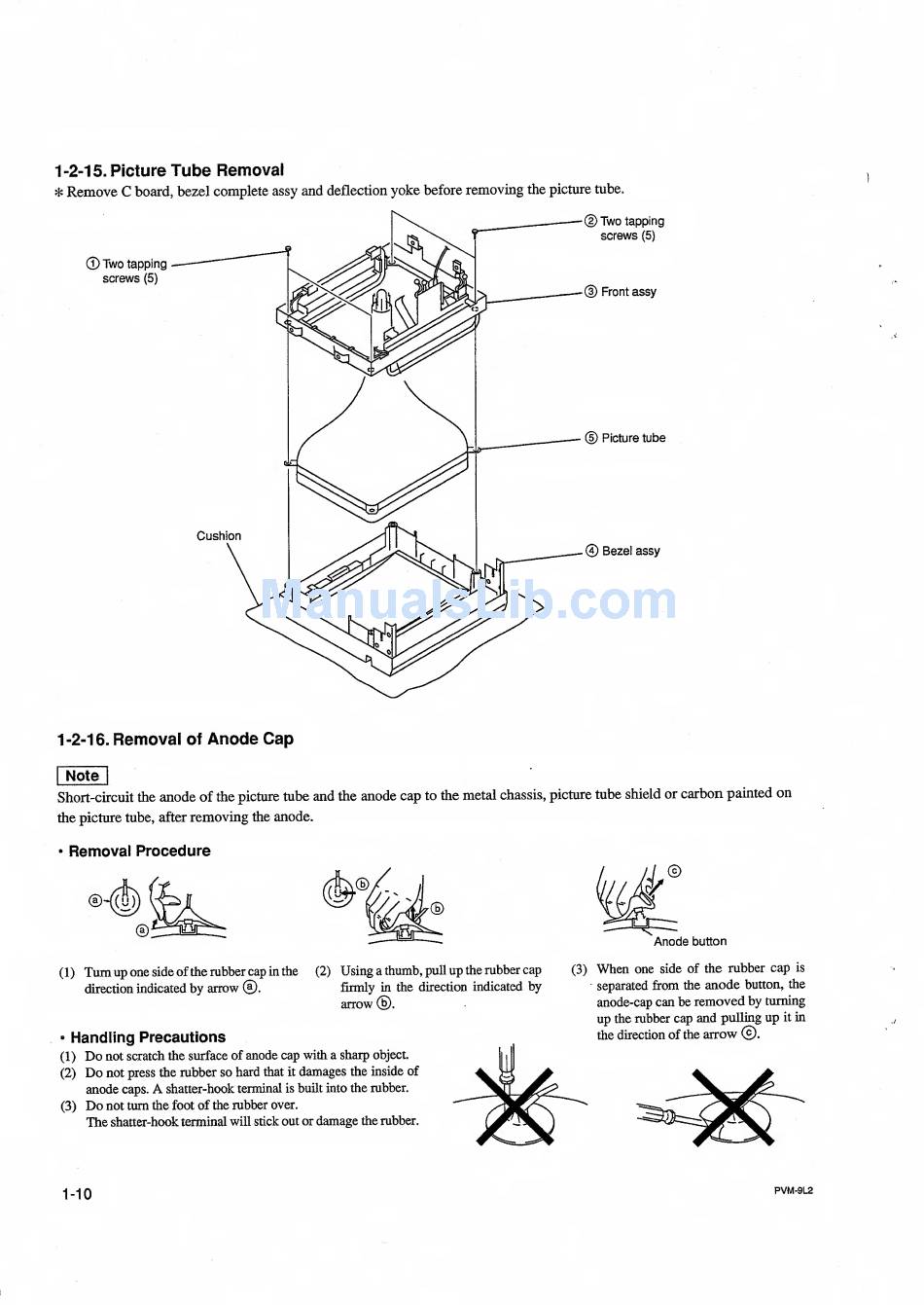

1
-2-1 5.
T
ube Removal
Remove
C
board, bezel
complete
assy
and
deflection
yoke
before
removing
the picture tube.
1
(D
Two
tapping
screws
(5)
(3)
Front
assy
(D
tube
@
Bezel
assy
1-2-16.
Removal
of
Anode Cap
I
Note
I
Short-circuit the
anode
of
the picture
tube
and
the
anode cap
to the
metal
chassis,
tube
shield
or
carbon
painted
on
the picture
tube, after
removing
the
anode.
•
Removal
Procedure
K-
Anode
button
(1)
Turn up
one
side
of
the
rubber cap
in
the
(2)
Using
a
thumb,
pull
up
the
rubber cap
(3)
direction indicated
by
arrow
@.
firmly
in
the direction indicated
by
arrow
®.
•
Handling Precautions
(1)
Do
not
scratch the surface
of
anode cap with a
sharp
object.
(2)
Do
not
press the
rubber
so hard
that
it
damages
the inside of
anode
caps.
A
shatter-hook terminal
is
built into
the rubber.
(3)
Do
not
turn
the foot
of
the
rubber
over.
The
shatter-hook terminal
will
stick
out or
damage
the rubber.
When
one
side
of the rubber cap
is
separated
from
the
anode
button, the
anode-cap can be
removed
by
turning
up
the
rubber cap
and
pulling
up
it
in
the
direction
of
the
arrow
©.
1-10
PVM-9L2
