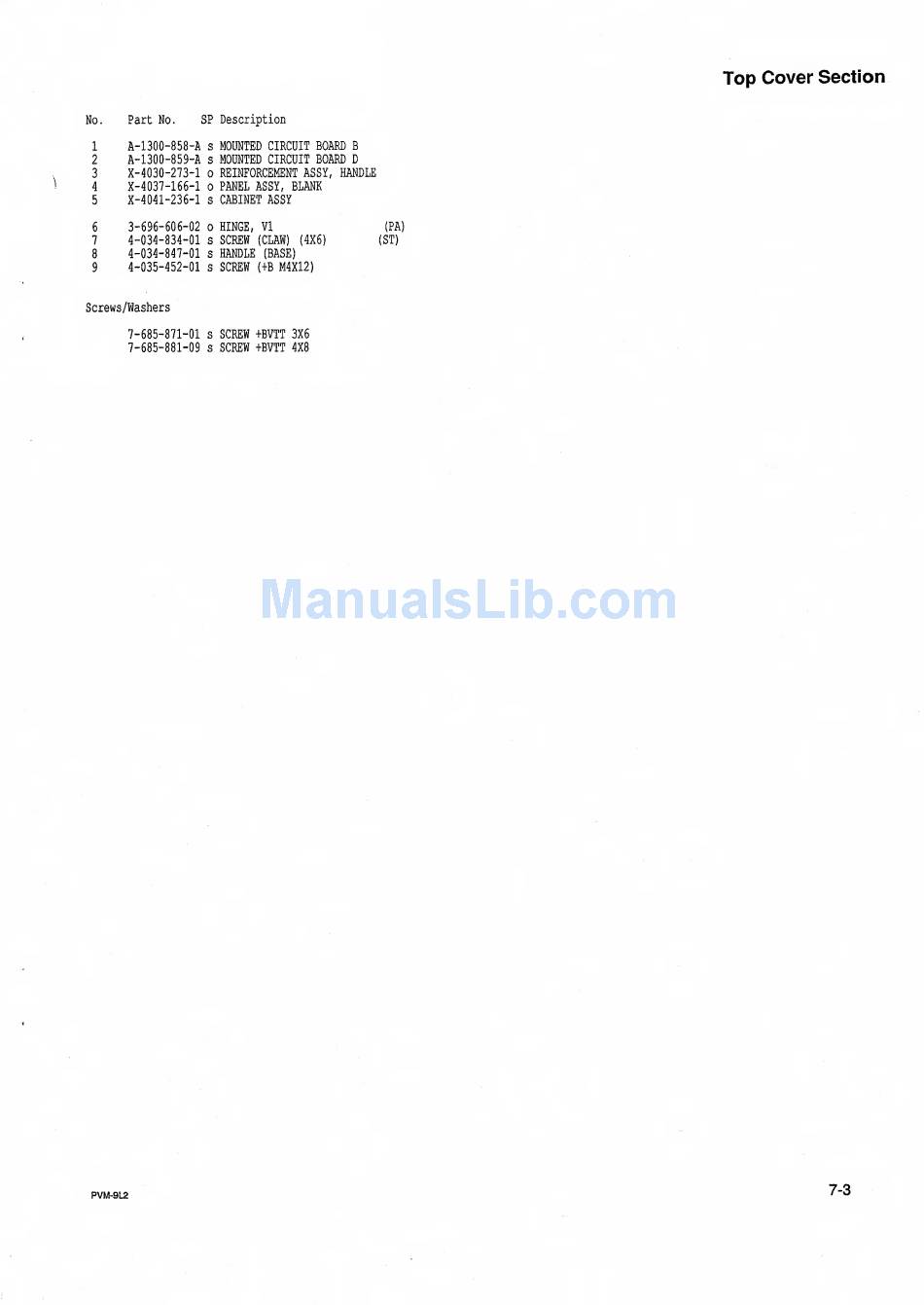

Top
Cover
Section
No.
Part
No.
SP Description
1
A-1300-858-A
S
MOUNTED CIRCUIT BOARD
B
2
A-1300-859-A
s
MOUNTED CIRCUIT BOARD D
3
X-4fl30-273-l O
REINFORCEMENT
ASSY,
HANDLE
4
X-4037-166-1
O PANEL ASSY,
BLANK
5
X-4041-236-1
s
CABINET ASSY
6
3-696-606-02
o HINGE, VI
(PA)
7
4-034-834-01
s
SCREW
(CLAW)
(4X6)
(ST)
8
4-034-847-01
s
HANDLE
(BASE)
9
4-035-452-01
s
SCREW
(+B
M4X12)
Screws/Washers
7-685-871-01
s
SCREW +BVTT
3X6
7-685-881-09
s
SCREW +BVTT
4X8
PVM-9L2
7-3
