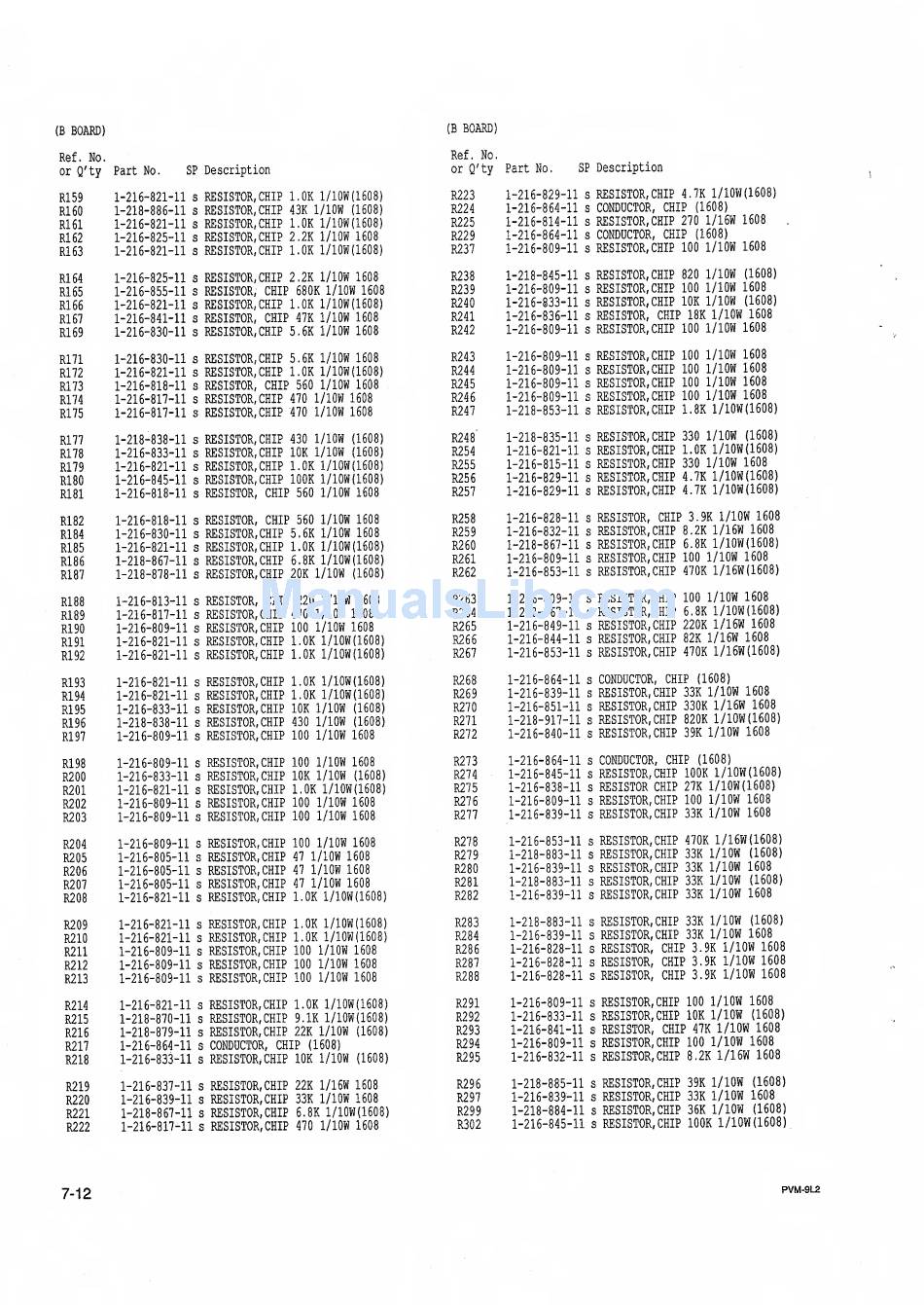

Sony PVM-9L2 Service Manual Page 54

Trinitron color video monitor.
Hide thumbs

Advertisement

(B
BOARD)
Ref. No.
or Q'ty
Part
No.
SP
Description
R159
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R160
1-213-886-11
s
RESISTOR, CHIP 43K 1/lOW
(1608)
R161
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R162
1-216-825-11
s
RESISTOR, CHIP
2.2K 1/lOW
1608
R163
1-216-821-11
s
RESISTOR,CHIP l.OK
1/10W(1608)
R164
1-216-825-11
s
RESISTOR, CHIP
2.2K 1/lOW
1608
R165
1-216-855-11
s
RESISTOR, CHIP 680K 1/lOW 1608
R166
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R167
1-216-841-11
s
RESISTOR, CHIP 47K 1/lOW 1608
R169
1-216-830-11
s
RESISTOR,CHIP 5.6K 1/lOW
1608
R171
1-216-830-11
s
RESISTOR, CHIP 5.6K 1/lOW
1608
R172
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R173
1-216-818-11
s
RESISTOR, CHIP 560 1/lOW
1608
R174
1-216-817-11
s
RESISTOR, CHIP 470 1/lOW 1608
R175
1-216-817-11
s
RESISTOR, CHIP 470 1/lOW 1608
R177
1-218-838-11
s
RESISTOR, CHIP 430 1/lOW
(1608)
R178
1-216-833-11
S
RESISTOR, CHIP lOK 1/lOW
(1608)
R179
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R180
1-216-845-11
s
RESISTOR, CHIP lOOK 1/10W(1608)
R181
1-216-818-11
s
RESISTOR, CHIP 560 1/lOW 1608
R182
1-216-818-11
s
RESISTOR, CHIP 560 1/lOW 1608
R184
1-216-830-11
s
RESISTOR, CHIP 5.6K 1/lOW
1608
R185
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R186
1-218-867-11
s
RESISTOR, CHIP 6.8K 1/10W(1608)
R187
1-218-878-11
s
RESISTOR, CHIP 20K 1/lOW
(1608)
R188
1-216-813-11
s
RESISTOR, CHIP 220 1/lOW
1608
R189
1-216-817-11
s
RESISTOR,CHIP
470
1/lOW
1608
R190
1-216-809-11
s
RESISTOR, CHIP
100
1/lOW
1608
R191
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R192
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R193
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R194
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R195
1-216-833-11
s
RESISTOR, CHIP lOK 1/lOW
(1608)
R196
1-218-838-11
s
RESISTOR, CHIP
430
1/lOW
(1608)
R197
1-216-809-11
s
RESISTOR, CHIP 100 1/lOW 1608
R198
1-216-809-11
s
RESISTOR, CHIP
100
1/lOW
1608
R200
1-216-833-11
s
RESISTOR, CHIP lOK 1/lOW
(1608)
R201
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R202
1-216-809-11
s
RESISTOR, CHIP
100
1/lOW
1608
R203
1-216-809-11
s
RESISTOR, CHIP
100
1/lOW
1608
R204
1-216-809-11
s
RESISTOR, CHIP
100
1/lOW
1608
R205
1-216-805-11
s
RESISTOR, CHIP
47
1/lOW
1608
R206
1-216-805-11
s
RESISTOR, CHIP
47
1/lOW
1608
R207
1-216-805-11
s
RESISTOR, CHIP
47
1/lOW
1608
R208
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R209
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R210
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R211
1-216-809-11
s
RESISTOR, CHIP
100
1/lOW
1608
R212
1-216-809-11
s
RESISTOR, CHIP
100
1/lOW
1608
R213
1-216-809-11
s
RESISTOR, CHIP
100
1/lOW
1608
R214
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R215
1-218-870-11
s
RESISTOR, CHIP
9.
IK 1/10W(1608)
R216
1-218-879-11
s
RESISTOR, CHIP 22K 1/lOW
(1608)
R217
1-216-864-11
s
CONDUCTOR, CHIP
(1608)
R218
1-216-833-11
s
RESISTOR, CHIP lOK 1/lOW
(1608)
R219
1-216-837-11
s
RESISTOR, CHIP 22K 1/16W 1608
R220
1-216-839-11
s
RESISTOR, CHIP 33K 1/lOW 1608
R221
1-218-867-11
s
RESISTOR, CHIP 6.8K 1/10W(1608)
R222
1-216-817-11
s
RESISTOR, CHIP
470
1/lOW
1608
(B
BOARD)
Ref. No.
or
Q'ty
Part
No.
SP
Description
R223
1-216-829-11
s
RESISTOR, CHIP 4.7K 1/10W(1608)
R224
1-216-864-11
s
CONDUCTOR, CHIP
(1608)
R225
1-216-814-11
s
RESISTOR, CHIP 270 1/16W 1608
R229
1-216-864-11
s
CONDUCTOR, CHIP
(1608)
R237
1-216-809-11
s
RESISTOR, CHIP
100
1/lOW 1608
R238
1-218-845-11
s
RESISTOR, CHIP
820
1/lOW
(1608)
R239
1-216-809-11
s
RESISTOR, CHIP 100 1/lOW 1608
R240
1-216-833-11
s
RESISTOR, CHIP lOK 1/lOW
(1608)
R241
1-216-836-11
s
RESISTOR, CHIP 18K 1/lOW 1608
R242
1-216-809-11
s
RESISTOR, CHIP
100
1/lOW 1608
R243
1-216-809-11
s
RESISTOR, CHIP
100
1/lOW 1608
R244
1-216-809-11
s
RESISTOR, CHIP
100
1/lOW
1608
R245
1-216-809-11
s
RESISTOR, CHIP
100
1/lOW 1608
R246
1-216-809-11
s
RESISTOR, CHIP 100 1/lOW 1608
R247
1-218-853-11
s
RESISTOR, CHIP 1.8K 1/10W(1608)
R248'
1-218-835-11
s
RESISTOR, CHIP
330
1/lOW
(1608)
R254
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R255
1-216-815-11
s
RESISTOR, CHIP
330
1/lOW 1608
R256
1-216-829-11
s
RESISTOR, CHIP 4.7K 1/10W(1608)
R257
1-216-829-11
s
RESISTOR, CHIP 4.7K 1/10W(1608)
R258
1-216-828-11
s
RESISTOR, CHIP 3.9K 1/lOW 1608
R259
1-216-832-11
s
RESISTOR, CHIP 8.2K 1/16W 1608
R260
1-218-867-11
s
RESISTOR, CHIP 6.8K 1/10W(1608)
R261
1-216-809-11
s
RESISTOR, CHIP
100
1/lOW
1608
R262
1-216-853-11
s
RESISTOR, CHIP 470K 1/16W{1608)
R263
1-216-809-11
s
RESISTOR, CHIP
100
1/lOW
1608
R264
1-218-867-11
s
RESISTOR, CHIP 6.8K 1/10W(1608)
R265
1-216-849-11
s
RESISTOR, CHIP 220K
1/16W
1608
R266
1-216-844-11
s
RESISTOR, CHIP 82K 1/16W 1608
R267
1-216-853-11
s
RESISTOR, CHIP 470K 1/16W(1608)
R268
1-216-864-11
s
CONDUCTOR, CHIP
(1608)
R269
1-216-839-11
s
RESISTOR, CHIP 33K
1/lOW
1608
R270
1-216-851-11
s
RESISTOR, CHIP 330K
1/16W
1608
R271
1-218-917-11
s
RESISTOR, CHIP 820K 1/10W(1608)
R272
1-216-840-11
s
RESISTOR, CHIP 39K
1/lOW
1608
R273
1-216-864-11
s
CONDUCTOR, CHIP
(1608)
R274
1-216-845-11
s
RESISTOR, CHIP lOOK 1/10W(1608)
R275
1-216-838-11
s
RESISTOR
CHIP 27K 1/10W(1608)
R276
1-216-809-11
s
RESISTOR, CHIP
100
1/lOW
1608
R277
1-216-839-11
s
RESISTOR, CHIP 33K
1/lOW
1608
R278
1-216-853-11
s
RESISTOR, CHIP 470K 1/16W(1608)
R279
1-218-883-11
s
RESISTOR, CHIP 33K
1/lOW
(1608)
R280
1-216-839-11
s
RESISTOR, CHIP 33K
1/lOW
1608
R281
1-218-883-11
s
RESISTOR, CHIP 33K
1/lOW
(1608)
R282
1-216-839-11
s
RESISTOR, CHIP 33K
1/lOW
1608
R283
1-218-883-11
s
RESISTOR, CHIP 33K 1/lOW
(1608)
R284
1-216-839-11
s
RESISTOR, CHIP 33K
1/lOW
1608
R286
1-216-828-11
s
RESISTOR, CHIP 3.9K
1/lOW
1608
R287
1-216-828-11
s
RESISTOR, CHIP 3.9K
1/lOW
1608
R288
1-216-828-11
s
RESISTOR, CHIP 3.9K
1/lOW
1608
R291
1-216-809-11
s
RESISTOR, CHIP
100
1/lOW
1608
R292
1-216-833-11
s
RESISTOR, CHIP lOK
1/lOW
(1608)
R293
1-216-841-11
s
RESISTOR, CHIP 47K
1/lOW
1608
R294
1-216-809-11
s
RESISTOR, CHIP
100
1/lOW
1608
R295
1-216-832-11
s
RESISTOR, CHIP 8.2K
1/16W
1608
R296
1-218-885-11
s
RESISTOR, CHIP 39K
1/lOW
(1608)
R297
1-216-839-11
s
RESISTOR, CHIP 33K
1/lOW
1608
R299
1-218-884-11
s
RESISTOR, CHIP 36K
1/lOW
(1608)
R302
1-216-845-11
s
RESISTOR, CHIP lOOK
1/10W(1608)
