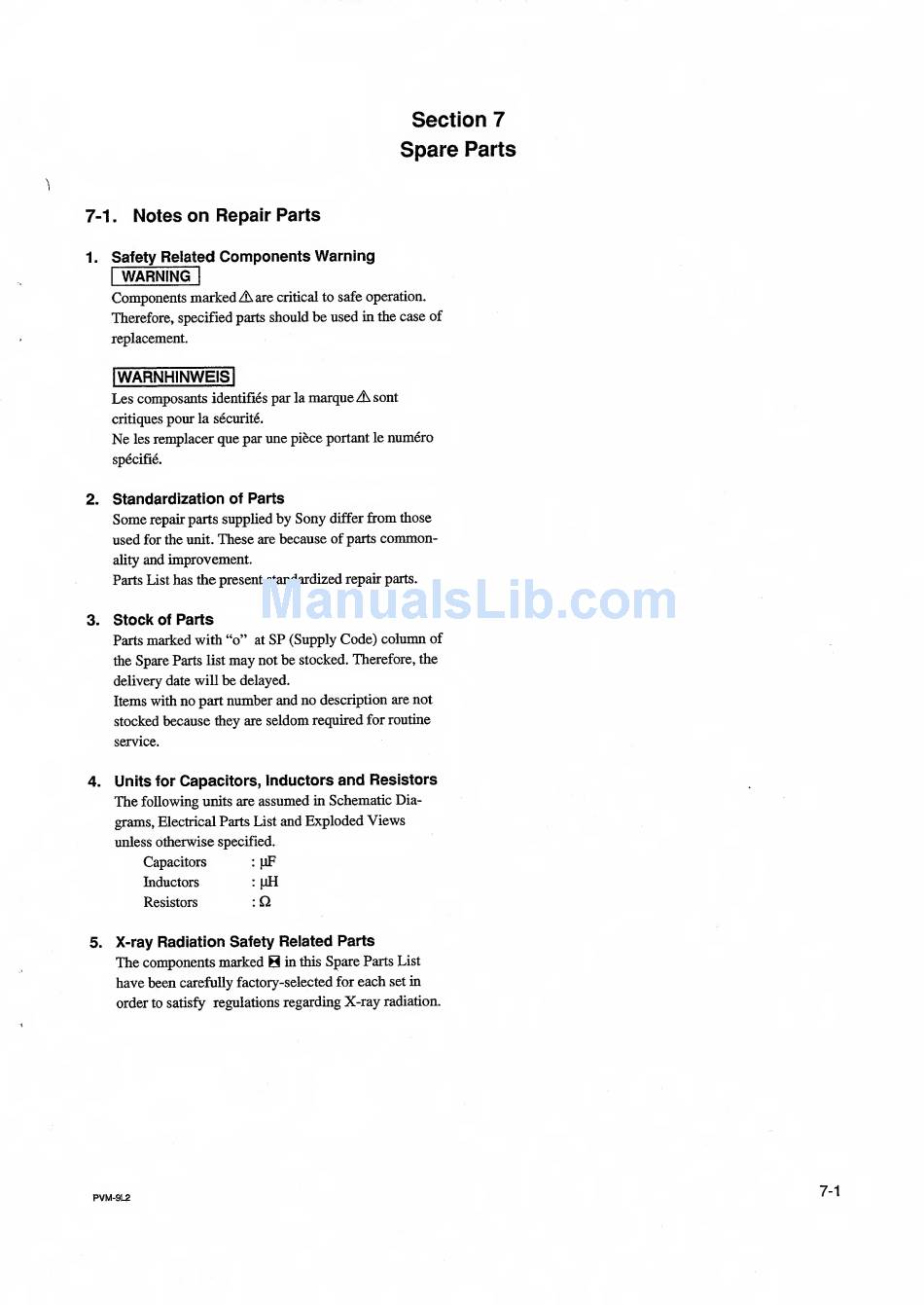

Sony PVM-9L2 Service Manual Page 43

Trinitron color video monitor.
Hide thumbs

Advertisement

Section 7
Spare
Parts
7-1
.
Notes
on
Repair Parts
1
.
Safety Related
Components
Warning
WARNII^
Components marked
A
are
critical
to safe operation.
Therefore, specified
parts
should
be used
in
the case
of
replacement.
WARNHINWEiS
Les composants
identifies
par
la
marque
A
sont
critiques
pour
la securite.
Ne
les
remplacer que par une
piece portant
le
numero
specific.
2.
Standardization
of Parts
Some
repair parts
supplied
by Sony
differ firom
those
used
for
the
unit.
These
are
because
of
parts
common-
ahty
and improvement.
Parts List
has the present standardized
repair
parts.
3.
Stock
of
Parts
Parts
marked
with "o"
at
SP
(Supply
Code) column
of
the
Spare
Parts
list
may
not
be
stocked. Therefore, the
delivery date will
be
delayed.
Items with
no
part
number
and no
description are
not
stocked
because
they
are
seldom
required
for routine
service.
4.
Units
for
Capacitors, Inductors
and
Resistors
The
following
units are
assumed
in
Schematic
Dia-
grams,
Electrical Parts List
and Exploded
Views
imless
otherwise
specified.
Capacitors
:MF
Inductors
:
pH
Resistors
:Q
5.
X-ray Radiation Safety Related Parts
The
components marked
B m
this
Spare
Parts List
have been
carefully factory-selected for
each
set in
order
to satisfy
regulations
regarding
X-ray
radiation.
PVM-9I-2
7-1
