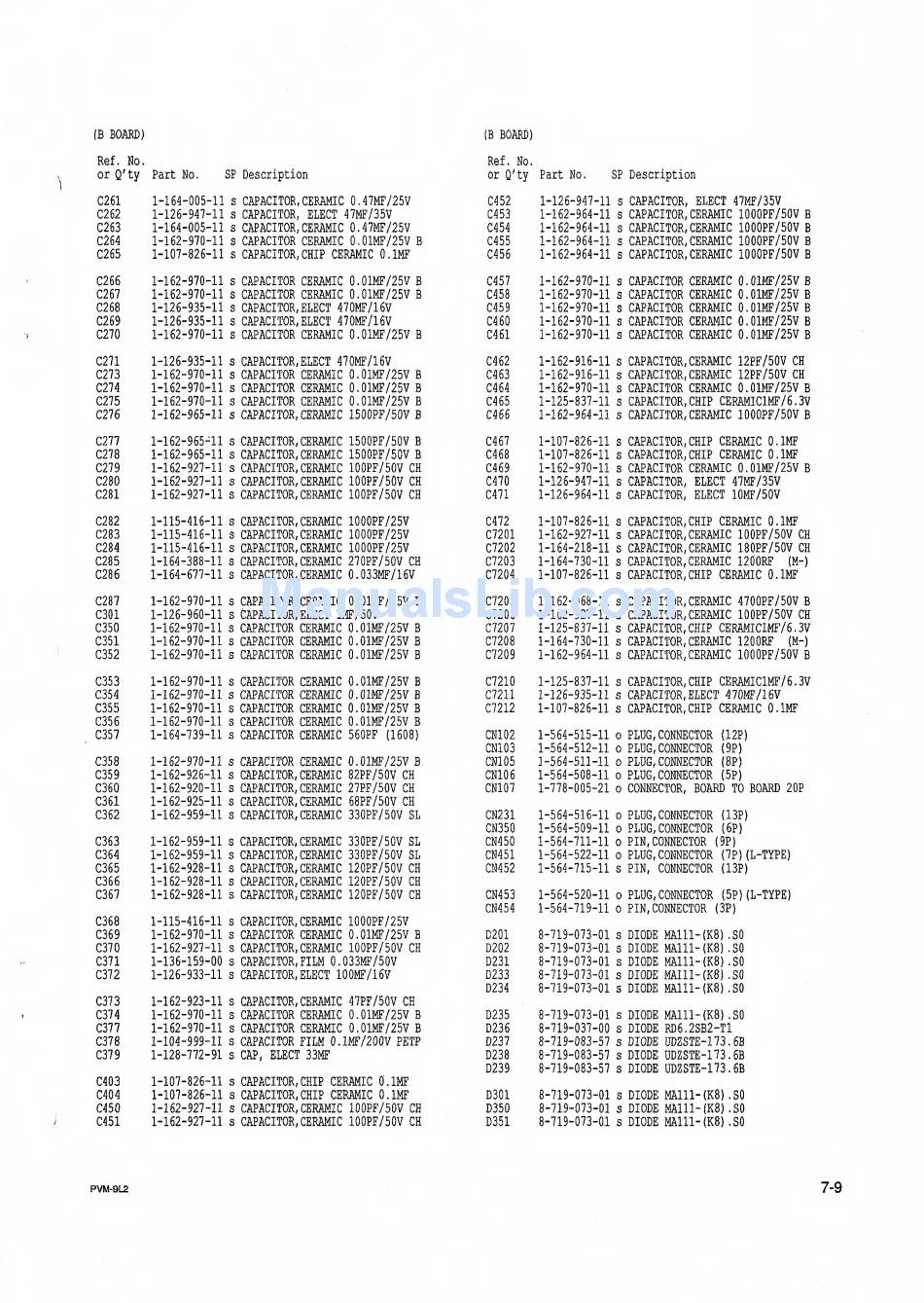

Sony PVM-9L2 Service Manual Page 51

Trinitron color video monitor.
Hide thumbs

Advertisement

(B
BOARD)
(B
BOARD)
Ref. No.
or Q'ty
Part
No.
SP
Description
C261
1-164-005-11
s
CAPACITOR,
CERAMIC 0,47MF/25V
C262
1-126-947-11
s
CAPACITOR, ELECT
47MF/35V
C263
1-164-005-11
s
CAPACITOR, CERAMIC
0.47MF/25V
C264
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C265
1-107-826-11
s
CAPACITOR, CHIP CERAMIC O.IMF
C266
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C267
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C268
1-126-935-11
s
CAPACITOR,
ELECT 470MF/16V
C269
1-126-935-11
S
CAPACITOR,
ELECT 470MF/16V
C270
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C271
1-126-935-11
s
CAPACITOR,
ELECT 470MF/16V
C273
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C274
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C275
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C276
1-162-965-11
s
CAPACITOR, CERAMIC
1500PF/50V
B
C277
1-162-965-11
s
CAPACITOR, CERAMIC
1500PF/50V
B
C278
1-162-965-11
s
CAPACITOR, CERAMIC
1500PF/50V
B
C279
1-162-927-11
s
CAPACITOR, CERAMIC
100PF/50V
CH
C280
1-162-927-11
s
CAPACITOR, CERAMIC
100PF/50V
CH
C281
1-162-927-11
s
CAPACITOR, CERAMIC
100PF/50V
CH
C282
1-115-416-11
s
CAPACITOR, CERAMIC
1000PF/25V
C283
1-115-416-11
s
CAPACITOR,
CERAMIC 1000PF/25V
C284
1-115-416-11
s
CAPACITOR,
CERAMIC 1000PF/25V
C285
1-164-388-11
s
CAPACITOR,
CERAMIC 270PF/50V CH
C286
1-164-677-11
s
CAPACITOR,
CERAMIC 0.033MF/16V
C287
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C301
1-126-960-11
s
CAPACITOR, ELECT
1MF/50V
C350
1-162-970-11
s
CAPACITOR CERAMTC 0.0IMF/25V
B
C351
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C352
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C353
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C354
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C355
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C356
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C357
1-164-739-11
s
CAPACITOR CERAMIC 560PF
(1608)
C358
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C359
1-162-926-11
s
CAPACITOR, CERAMIC
82PF/50V CH
C360
1-162-920-11
s
CAPACITOR,
CERAMIC 27PF/50V
CH
C361
1-162-925-11
s
CAPACITOR,
CERAMIC 68PF/50V
CH
C362
1-162-959-11
s
CAPACITOR, CERAMIC
330PF/50V
SL
C363
1-162-959-11
s
CAPACITOR, CERAMIC
330PF/50V
SL
C364
1-162-959-11
S
CAPACITOR, CERAMIC
330PF/50V
SL
C365
1-162-928-11
s
CAPACITOR, CERAMIC 120PF/50V CH
C366
1-162-928-11
s
CAPACITOR, CERAMIC 120PF/50V CH
C367
1-162-928-11
s
CAPACITOR, CERAMIC
120PF/50V
CH
C368
1-115-416-11
s
CAPACITOR, CERAMIC
1000PF/25V
C369
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C370
1-162-927-11
s
CAPACITOR, CERAMIC
100PF/50V
CH
C371
1-136-159-00
s
CAPACITOR,
FILM 0.033MF/50V
C372
1-126-933-11
s
CAPACITOR,
ELECT 100MF/16y
C373
1-162-923-11
s
CAPACITOR,
CERAMIC 47PF/50V CH
C374
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C377
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C378
1-104-999-11
s
CAPACITOR FILM 0.1MF/200V PETP
C379
1-128-772-91
s
CAP,
ELECT 33MF
C403
1-107-826-11
s
CAPACITOR, CHIP CERAMIC O.IMF
C404
1-107-826-11
s
CAPACITOR, CHIP CERAMIC O.IMF
C450
1-162-927-11
s
CAPACITOR,
CERAMIC 100PF/50V CH
C451
1-162-927-11
s
CAPACITOR, CERAMIC
100PF/50V CH
Ref. No.
or Q'ty
Part
No.
SP
Description
C452
1-126-947-11
s
CAPACITOR, ELECT 47MF/35V
C453
1-162-964-11
s
CAPACITOR, CERAMIC 1000PF/50V B
C454
1-162-964-11
s
CAPACITOR, CERAMIC 1000PF/50V
B
C455
1-162-964-11
s
CAPACITOR, CERAMIC 1000PF/50V B
C456
1-162-964-11
s
CAPACITOR, CERAMIC 1000PF/50V B
C4S7
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V B
C458
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C459
1-162-970-11
s
CAPACITOR CERAMIC 0,01MF/25V
B
C460
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C461
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C462
1-162-916-11
s
CAPACITOR, CERAMIC 12PF/50V CH
C463
1-162-916-11
s
CAPACITOR, CERAMIC 12PF/50V CH
C464
1-162-970-11
s
CAPACITOR CERAMIC 0.C1MF/25V
B
C465
1-125-837-11
s
CAPACITOR, CHIP
CEEAMIC1MF/6.3V
C466
1-162-964-11
s
CAPACITOR, CERAMIC
1000PF/50V
B
C467
1-107-826-11
s
CAPACITOR, CHIP CERAMIC O.IMF
C468
1-107-826-11
s
CAPACITOR, CHIP CERAMIC O.IMF
C469
1-162-970-11
s
CAPACITOR CERAMIC 0.01MF/25V
B
C470
1-126-947-11
s
CAPACITOR,
ELECT 47MF/35V
C471
1-126-964-11
s
CAPACITOR,
ELECT 10MF/50V
C472
1-107-826-11
s
CAPACITOR, CHIP
CERAMIC O.IMF
C7201
1-162-927-11
s
CAPACITOR,
CERAMIC 100PF/50V CH
C7202
1-164-218-11
s
CAPACITOR,
CERAMIC 180PF/50V CH
C7203
1-164-730-11
s
CAPACITOR, CERAMIC 1200RF
(M-)
C7204
1-107-826-11
s
CAPACITOR, CHIP CERAMIC O.IMF
C7205
1-162-968-11
s
CAPACITOR,
CERAMIC 4700PF/50V
B
C7206
1-162-927-11
s
CAPACITOR,
CERAMIC 100PF/50V CH
C7207
1-125-837-11
s
CAPACITOR, CHIP
CERAMIC1MF/6.3V
C7208
1-164-730-11
s
CAPACITOR, CERAMIC 1200RF
(M-)
C7209
1-162-964-11
s
CAPACITOR,
CERAMIC 1000PF/50V
B
C7210
1-125-837-11
s
CAPACITOR, CHIP
CERAMIC1MF/6.3V
C7211
1-126-935-11
s
CAPACITOR,
ELECT 470MF/16V
C7212
1-107-826-11
s
CAPACITOR, CHIP CERAMIC O.IMF
CN102
1-564-515-11
o
PLUG,
CONNECTOR
(12P)
CN103
1-564-512-11
o
PLUG,
CONNECTOR
(9P)
CH105
1-564-511-11
o
PLUG,
CONNECTOR
(8P)
CN106
1-564-508-11
o
PLUG,
CONNECTOR
(5P)
CN107
1-778-005-21
o
CONNECTOR,
BOARD TO BOARD
20P
CN231
1-564-516-11
o
PLUG,
CONNECTOR
(13P)
CN350
1-564-509-11
o
PLUG,
CONNECTOR
(6P)
CN450
1-564-711-11
o PIN,
CONNECTOR
(9P)
CN451
1-564-522-11
0 PLUG,
CONNECTOR
(7P)
(L-TYPE)
CN452
1-564-715-11
s
PIN,
CONNECTOR
(13P)
CN453
1-564-520-11
o
PLUG,
CONNECTOR
(5P)
(L-TYPE)
CN454
1-564-719-11
o PIN,
CONNECTOR
(3P)
D201
8-719-073-01
s
DTODE MA111-(K8)
.SO
D202
8-719-073-01
s
DIODE MA111-(K8)
.SO
D231
8-719-073-01
s
DIODE MA111-(K8)
.SO
D233
8-719-073-01
s
DIODE MA111-(K8)
.SO
D234
8-719-073-01
s
DIODE MA111-(K8)
.SO
D235
8-719-073-01
s
DIODE MA111-(K8)
.SO
D236
8-719-037-00
s
DIODE RD6.2SB2-T1
D237
8-719-083-57
s
DIODE UDESTE-l
73. 6B
D238
8-719-083-57
s
DIODE DDZSTE-173
.
6B
D239
8-719-083-57
s
DIODE UDZSTE-173
.
6B
D301
8-719-073-01
s
DIODE MA111-(K8)
.SO
D3S0
8-719-073-01
s
DIODE MA111-(K8)
.SO
D351
8-719-073-01
s
DIODE MA111-(K8)
.SO
