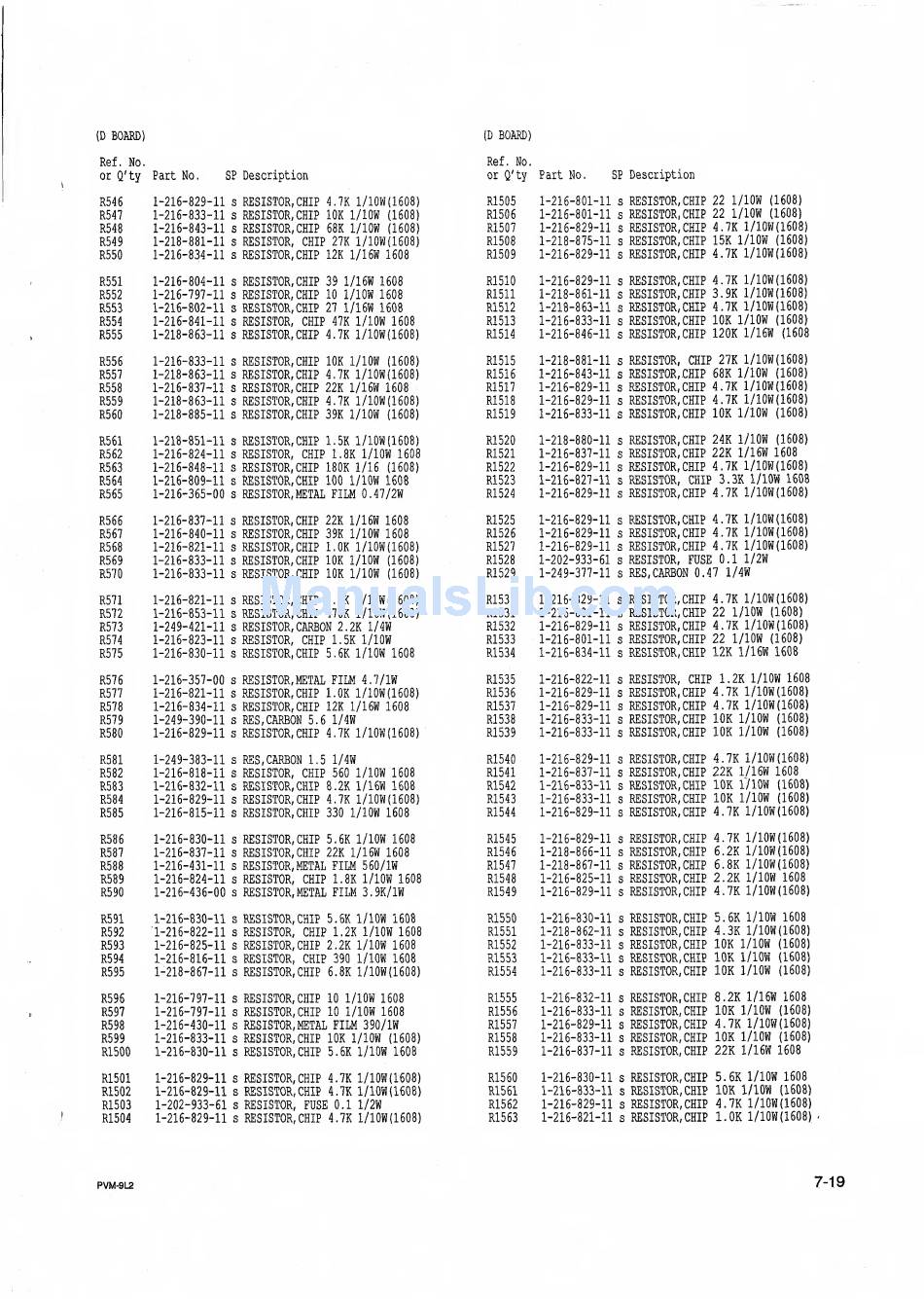

Sony PVM-9L2 Service Manual Page 61

Trinitron color video monitor.

Hide thumbs

Also See for PVM-9L2

Instructions for use manual - 112 pages

Table of Contents

mm)

Ref. No.

Q'ty

Part

No.

Description

R546

1-216-829-11

RESISTOR, CHIP 4.7K 1/10W(1608)

R547

1-216-833-11

RESISTOR, CHIP lOK 1/lOW

(1608)

R548

1-216-843-11

RESISTOR, CHIP 68K 1/lOW

(1608)

R549

1-218-881-11

RESISTOR, CHIP 27K 1/10W(1608)

R550

1-216-834-11

RESISTOR, CHIP 12K 1/16W 1608

R551

1-216-804-11

RESISTOR, CHIP 39 1/16W 1608

R5S2

1-216-797-11

RESISTOR, CHIP

1/lOW

1608

R553

1-216-802-11

RESISTOR, CHIP

1/16W 1608

R554

1-216-841-11

RESISTOR, CHIP 47K

1/lOW

1608

R555

1-218-863-11

RESISTOR, CHIP 4.7K 1/10W(1608)

R556

1-216-833-11

RESISTOR, CHIP lOK 1/lOW

(1608)

R557

1-218-863-11

RESISTOR, CHIP 4.7K 1/10W(1608)

R558

1-216-837-11

RESISTOR, CHIP 22K 1/16W 1608

R559

1-218-863-11

RESISTOR, CHIP 4.7K 1/10W(1608)

R560

1-218-885-11

RESISTOR, CHIP 39K 1/lOW

(1608)

R561

1-218-851-11

RESISTOR, CHIP 1.5K 1/10W(1608)

R562

1-216-824-11

RESISTOR, CHIP 1.8K 1/lOW 1608

R563

1-216-848-11

RESISTOR, CHIP 180K 1/16

(1608)

R564

1-216-809-11

RESISTOR, CHIP 100 1/lOW 1608

R565

1-216-365-00

RESISTOR, METAL

FILM 0.47/2W

R566

1-216-837-11

RESISTOR, CHIP 22K 1/16W 1608

R567

1-216-840-11

RESISTOR,CHIP 39K 1/lOW 1608

R568

1-216-821-11

RESISTOR, CHIP l.OK 1/10W(1608)

R569

1-216-833-11

RESISTOR, CHIP lOK 1/lOW

(1608)

R570

1-216-833-11

RESISTOR, CHIP lOK 1/lOW

(1608)

R571

1-216-821-11

RESISTOR, CHIP l.OK 1/10W(1608)

R572

1-216-853-11

RESISTOR, CHIP 470K 1/16W(1608)

R573

1-249-421-11

RESISTOR, CARBON 2.2K 1/4W

R574

1-216-823-11

RESISTOR, CHIP 1.5K 1/lOW

R575

1-216-830-11

RESISTOR, CHIP

5.6K 1/lOW

1608

R576

1-216-357-00

RESISTOR, METAL FILM

7/lW

R577

1-216-821-11

RESISTOR, CHIP l.OK 1/10W(1608)

R578

1-216-834-11

RESISTOR, CHIP 12K 1/16W 1608

R579

1-249-390-11

RES,

CARBON

5.6 1/4W

R580

1-216-829-11

RESISTOR, CHIP 4.7K 1/10W(1608)

R581

1-249-383-11

RES,

CARBON

1.5

1/4W

R582

1-216-818-11

RESISTOR, CHIP

560

1/lOW

1608

R583

1-216-832-11

RESISTOR, CHIP 8.2K 1/16W 1608

R584

1-216-829-11

RESISTOR, CHIP 4.7K 1/10W(1608)

R585

1-216-815-11

RESISTOR, CHIP 330 1/lOW 1608

R586

1-216-830-11

RESISTOR, CHIP 5.6K 1/lOW 1608

R587

1-216-837-11

RESISTOR, CHIP 22K 1/16W 1608

R588

1-216-431-11

RESISTOR, METAL

FILM 560/lW

R589

1-216-824-11

RESISTOR, CHIP 1.8K 1/lOW 1608

R590

1-216-436-00

RESISTOR, METAL

FILM 3.9K/1W

R591

1-216-830-11

RESISTOR, CHIP 5.6K I/ION 1608

R592

1-216-822-11

RESISTOR, CHIP 1.2K 1/lOW 1608

R593

1-216-825-11

RESISTOR, CHIP 2.2K 1/lOW 1608

R594

1-216-816-11

RESISTOR, CHIP

390

1/lQW 1608

R595

1-218-867-11

RESISTOR, CHIP 6.8K 1/10W(1608)

R596

1-216-797-11

RESISTOR, CHIP

1/lOW

1608

R597

1-216-797-11

RESISTOR, CHIP

1/lOW

1608

R598

1-216-430-11

RESISTOR, METAL

FILM 390/lW

R599

1-216-833-11

RESISTOR, CHIP lOK 1/lOW

(1608)

R1500

1-216-830-11

RESISTOR, CHIP 5.6K 1/lOW 1608

R1501

1-216-829-11

RESISTOR, CHIP 4.7K 1/10W(1608)

R1502

1-216-829-11

RESISTOR, CHIP 4.7K 1/10W(1608)

R1503

1-202-933-61

RESISTOR, FUSE

0.1

1/2W

R1504

1-216-829-11

RESISTOR,CHIP 4.7K 1/10W(1608)

BOARD)

Ref. No.

or Q'ty

Part

No.

Description

R1505

1-216-801-11

RESISTOR, CHIP 22

1/lOW

(1608)

R1506

1-216-801-11

RESISTOR, CHIP 22

1/lOW

(1608)

R1507

1-216-829-11

RESISTOR, CHIP

4.7K

1/10W(1608)

R1508

1-218-875-11

RESISTOR, CHIP

15K 1/lOW

(1608)

R1509

1-216-829-11

RESISTOR, CHIP

4.7K

1/10W(1608)

R1510

1-216-829-11

RESISTOR, CHIP

4.7K

1/10W(1608)

R1511

1-218-861-11

RESISTOR, CHIP

3.9K

1/10W(1608)

R1512

1-218-863-11

RESISTOR, CHIP

4.7K

1/10W(1608)

R1513

1-216-833-11

RESISTOR, CHIP

lOK 1/lOW

(1608)

R1514

1-216-846-11

RESISTOR, CHIP

120K 1/16W

(1608

R1515

1-218-881-11

RESISTOR, CHIP

27K

1/10W(1608)

R1516

1-216-843-11

RESISTOR,CHIP 68K 1/lOW

(1608)

R1517

1-216-829-11

RESISTOR, CHIP

4.7K

1/10W(1608)

R1518

1-216-829-11

RESISTOR, CHIP

4.7K

1/10W(1608)

R1519

1-216-833-11

RESISTOR, CHIP

lOK 1/lOW

(1608)

R1520

1-218-880-11

RESISTOR, CHIP

24K

1/lOW

(1608)

R1521

1-216-837-11

RESISTOR, CHIP

22K

1/16W 1608

R1522

1-216-829-11

RESISTOR, CHIP

4.7K

1/10W(1608)

R1523

1-216-827-11

RESISTOR, CHIP

3.3K l/lOW

1608

R1524

1-216-829-11

RESISTOR, CHIP

4.7K

1/10W{1608)

R1525

1-216-829-11

RESISTOR, CHIP

4.7K

1/10W(1608)

R1526

1-216-829-11

RESISTOR, CHIP

4.7K

1/10W(1608)

R1527

1-216-829-11

RESISTOR, CHIP

4.7K

1/10W(1608)

R1528

1-202-933-61

RESISTOR, FUSE 0.1

1/2W

R1529

1-249-377-11

RES,

CARBON 0.47 1/4W

R1530

1-216-829-11

RESISTOR, CHIP

4.7K

1/10W(1608)

R1531

1-216-801-11

RESISTOR, CHIP 22 1/lOW

(1608)

R1532

1-216-829-11

RESISTOR, CHIP

4.7K

1/10W(1608)

R1533

1-216-801-11

RESISTOR, CHIP

22 1/lOW

(1608)

R1534

1-216-834-11

RESISTOR, CHIP

12K

1/16W 1608

R1535

1-216-822-11

RESISTOR, CHIP

1.2K 1/lOW

1608

R1536

1-216-829-11

RESISTOR, CHIP

4.7K

1/10W(1608)

R1537

1-216-829-11

RESISTOR, CHIP

4.7K

1/10W(1608)

R1538

1-216-833-11

RESISTOR, CHIP

lOK

1/lOW

(1608)

R1539

1-216-833-11

RESISTOR, CHIP

lOK

1/lOW

(1608)

R1540

1-216-829-11

RESISTOR, CHIP

4.7K

1/10W(1608)

R1541

1-216-837-11

RESISTOR, CHIP

22K

1/16W

1608

R1542

1-216-833-11

RESISTOR, CHIP

lOK

1/lOW

(1608)

R1543

1-216-833-11

RESISTOR, CHIP

lOK

1/lOW

(1608)

R1544

1-216-829-11

RESISTOR, CHIP

4.7K

1/10W(1608)

R1545

1-216-829-11

RESISTOR, CHIP

4.7K

1/10W(1608)

R1546

1-218-866-11

RESISTOR, CHIP

6.2K

1/10W(1608)

R1547

1-218-867-11

RESISTOR, CHIP

6.8K

1/10W(1608)

R1548

1-216-825-11

RESISTOR, CHIP

2.2K

1/lOW 1608

R1549

1-216-829-11

RESISTOR, CHIP

4.7K

1/10W(1608)

R1550

1-216-830-11

RESISTOR, CHIP

5.6K

1/lON 1608

R1551

1-218-862-11

RESISTOR, CHIP

4.3K

1/10W(1608)

R1552

1-216-833-11

RESISTOR, CHIP

lOK

1/lOW

(1608)

R1553

1-216-833-11

RESISTOR, CHIP

lOK

1/lOW

(1608)

R1554

1-216-833-11

RESISTOR, CHIP

lOK

1/lOW

(1608)

R1555

1-216-832-11

RESISTOR, CHIP

8.2K

1/16W 1608

R1556

1-216-833-11

RESISTOR, CHIP

lOK

1/lOW

(1608)

R1557

1-216-829-11

RESISTOR, CHIP

4.7K

1/10W(1608)

R1558

1-216-833-11

RESISTOR, CHIP

lOK

1/lOW

(1608)

R1559

1-216-837-11

RESISTOR, CHIP

22K

1/16W 1608

R1560

1-216-830-11

RESISTOR, CHIP

5.6K

1/lOW

1608

R1561

1-216-833-11

RESISTOR, CHIP

lOK

1/1014

(1608)

R1562

1-216-829-11

RESISTOR, CHIP

4.7K

1/10W(1608)

R1563

1-216-821-11

RESISTOR, CHIP

l.OK

1/10W(1608)

PVM-9L2

7-19
