Table of Contents

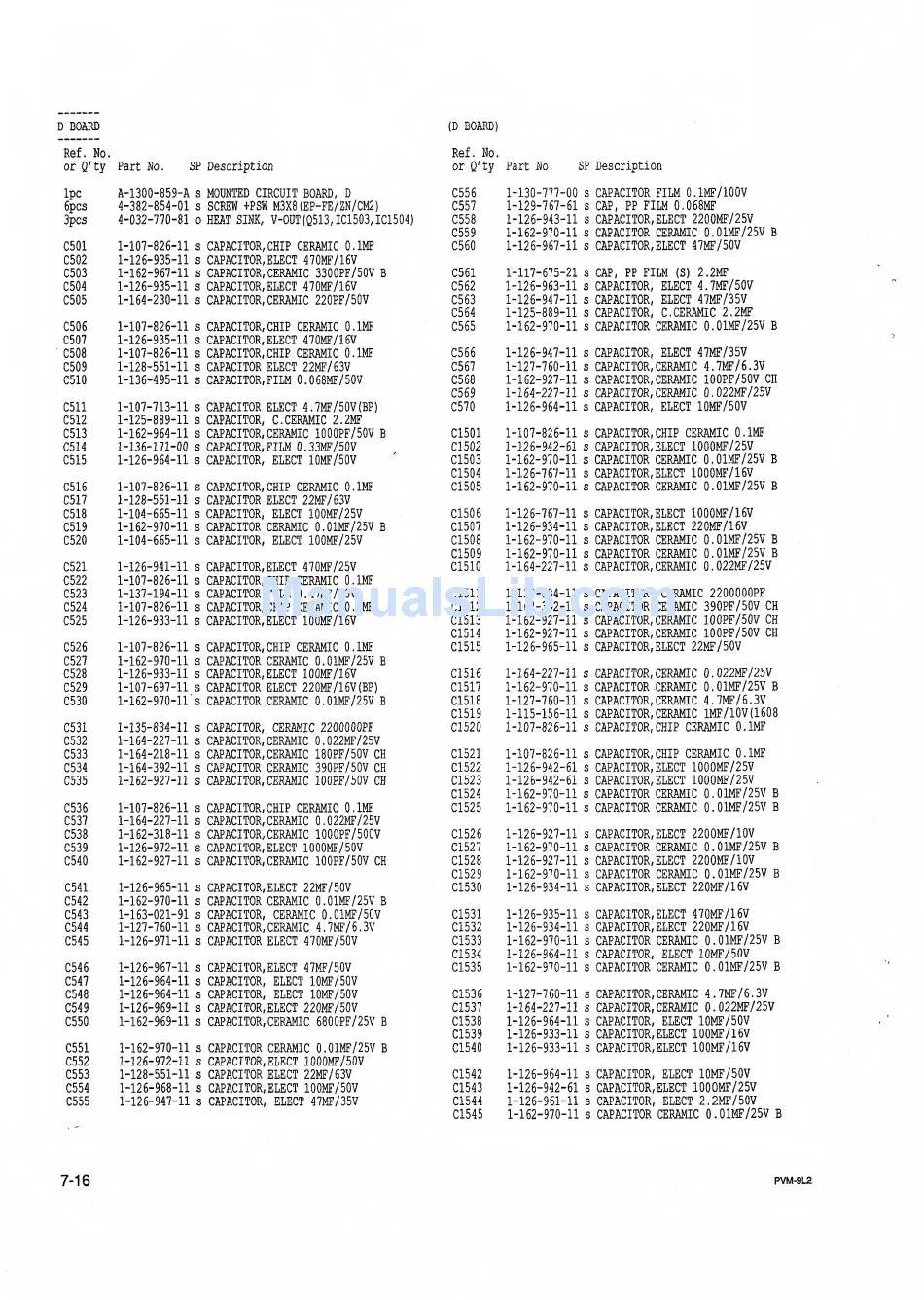

BOARD

Ref. No.

or Q'ty

Part

No.

SP Description

Ipc

A-1300-859-A

MOUNTED CIRCUIT

BOARD,

6pcs

4-382-854-01

SCREW +PSW M3X8(EP-FE/ZN/CM2)

3pcs

4-032-770-81

HEAT

SINK,

V-OUT(Q513,IC1503,IC1504)

C501

1-107-826-11

CAPACITOR, CHIP CERAMIC

IMF

C502

1-126-935-11

CAPACITOR, ELECT 470MF/16V

C503

1-162-967-11

CAPACITOR, CERAMIC 3300PF/50V B

C504

1-126-935-11

CAPACITOR, ELECT 470MF/16V

C5fl5

1-164-230-11

CAPACITOR, CERAMIC 220PF/50V

C506

1-107-826-11

CAPACITOR, CHIP CERAMIC O.IMF

C507

1-126-935-11

CAPACITOR, ELECT 470MF/16V

C508

1-107-826-11

CAPACITOR, CHIP CERAMIC O.IMF

C509

1-128-551-11

CAPACITOR ELECT 22MF/63V

C510

1-136-495-11

CAPACITOR, FILM 0.068MF/50V

C511

1-107-713-11

CAPACITOR ELECT

4.7MF/50V(BP)

C512

1-125-889-11

CAPACITOR,

CERAMIC 2.2MF

C513

1-162-964-11

CAPACITOR, CERAMIC 1000PF/50V B

C514

1-136-171-00

CAPACITOR,

FILM 0.33MF/50V

C515

1-126-964-11

CAPACITOR, ELECT 10MF/50V

C516

1-107-826-11

CAPACITOR, CHIP CERAMIC O.IMF

C517

1-128-551-11

CAPACITOR ELECT 22MF/63V

C518

1-104-665-11

CAPACITOR, ELECT 100MF/25V

C519

1-162-970-11

CAPACITOR CERAMIC 0.01MF/25V

C520

1-104-665-11

CAPACITOR, ELECT 100MF/25V

C521

1-126-941-11

CAPACITOR, ELECT 470MF/25V

C522

1-107-826-11

CAPACITOR, CHIP CERAMIC O.IMF

C523

1-137-194-11

CAPACITOR FILM 0.47MF/50V

C524

1-107-826-11

CAPACITOR, CHIP CERAMIC O.IMF

C525

1-126-933-11

CAPACITOR, ELECT 100MF/16V

C526

1-107-826-11

CAPACITOR, CHIP CERAMIC O.IMF

C527

1-162-970-11

CAPACITOR CERAMIC 0.01MF/25V

C528

1-126-933-11

CAPACITOR,

ELECT

10flMF/16V

C529

1-107-697-11

CAPACITOR ELECT 220MF/16V(BP)

C530

1-162-970-11

CAPACITOR CERAMIC 0.01MF/25V

C531

1-135-834-11

CAPACITOR, CERAMIC 2200000PF

C532

1-164-227-11

CAPACITOR, CERAMIC 0.022MF/25V

C533

1-164-218-11

CAPACITOR, CERAMIC 180PF/50V CH

C534

1-164-392-11

CAPACITOR CERAMIC 390PF/50V

C535

1-162-927-11

CAPACITOR, CERAMIC 100PF/50V CH

C536

1-107-826-11

CAPACITOR, CHIP CERAMIC O.IMF

C537

1-164-227-11

CAPACITOR, CERAMIC 0.022MF/25V

C538

1-162-318-11

CAPACITOR, CERAMIC 1000PFy500V

C539

1-126-972-11

CAPACITOR, ELECT 1000MF/50V

C540

1-162-927-11

CAPACITOR, CERAMIC 100PF/50V CH

C541

1-126-965-11

CAPACITOR, ELECT 22MF/50V

C542

1-162-970-11

CAPACITOR CERAMIC 0.01MF/25V

C543

1-163-021-91

CAPACITOR, CERAMIC 0.01MF/50V

C544

1-127-760-11

CAPACITOR, CERAMIC 4.7MF/6.3V

C545

1-126-971-11

CAPACITOR ELECT 470MF/50V

C546

1-126-967-11

CAPACITOR, ELECT 47MF/50V

C547

1-126-964-11

CAPACITOR, ELECT 10MF/50V

C548

1-126-964-11

CAPACITOR, ELECT 10MF/50V

C549

1-126-969-11

CAPACITOR,

ELECT 220MF/50V

C550

1-162-969-11

CAPACITOR, CERAMIC 6800PF/25V

C551

1-162-970-11

CAPACITOR CERAMIC 0.01MF/25V

C552

1-126-972-11

CAPACITOR,

ELECT 1000MF/50V

C553

1-128-551-11

CAPACITOR ELECT 22MF/63V

C554

1-126-968-11

CAPACITOR,

ELECT 100MF/50V

C555

1-126-947-11

CAPACITOR, ELECT

47MF/35V

BOARD)

Ref. Ho.

or Q'ty

Part

Ho.

Description

C556

1-130-777-00

CAPACITOR FILM O.IMF/IOOV

C557

1-129-767-61

CAP,

PP FILM 0.068MF

C558

1-126-943-11

CAPACITOR, ELECT

2200MF/25V

C559

1-162-970-11

CAPACITOR CERAMIC 0.01MF/25V

C560

1-126-967-11

CAPACITOR, ELECT

47MF/50V

C561

1-117-675-21

CAP,

FILM

(S)

2.2MF

C562

1-126-963-11

CAPACITOR, ELECT

4.7MF/50V

C563

1-126-947-11

CAPACITOR, ELECT

47MF/35V

C564

1-125-889-11

CAPACITOR,

CERAMIC 2.2MF

C565

1-162-970-11

CAPACITOR CERAMIC 0.01MF/25V

C566

1-126-947-11

CAPACITOR, ELECT

47MF/35V

C567

1-127-760-11

CAPACITOR, CERAMIC

4.7MF/6.3V

C568

1-162-927-11

CAPACITOR, CERAMIC

100PF/50V CH

C569

1-164-227-11

CAPACITOR, CERAMIC

0.022MF/25V

C570

1-126-964-11

CAPACITOR, ELECT

10MF/50V

C1501

1-107-826-11

CAPACITOR, CHIP

CERAMIC O.IMF

C1502

1-126-942-61

CAPACITOR, ELECT

1000MF/25V

C1503

1-162-970-11

CAPACITOR CERAMIC 0.01MF/25V

C1504

1-126-767-11

CAPACITOR, ELECT

1000MF/16V

C1505

1-162-970-11

CAPACITOR CERAMIC 0.01MF/25V

C1506

1-126-767-11

CAPACITOR, ELECT

1000MF/16V

C1507

1-126-934-11

CAPACITOR, ELECT

220MF/16V

C1508

1-162-970-11

CAPACITOR CERAMIC 0.01MF/25V

C1509

1-162-970-11

CAPACITOR CERAMIC 0.01MF/25V B

C1510

1-164-227-11

CAPACITOR, CERAMIC

0.022MF/25V

C1511

1-135-834-11

CAPACITOR, CERAMIC

2200000PF

C1512

1-164-392-11

CAPACITOR CERAMIC 390PF/5CV CH

C1513

1-162-927-11

CAPACITOR, CERAMIC

100PF/50V CH

C1514

1-162-927-11

CAPACITOR, CERAMIC

100PF/50V CH

C1515

1-126-965-11

CAPACITOR, ELECT

22MF/50V

C1516

1-164-227-11

CAPACITOR, CERAMIC

0.022MF/25V

C1517

1-162-970-11

CAPACITOR CERAMIC 0.01MF/25V B

C1518

1-127-760-11

CAPACITOR, CERAMIC

4.7MF/6.3V

C1519

1-115-156-11

CAPACITOR, CERAMIC

1MF/10V(1608

C1520

1-107-826-11

CAPACITOR, CHIP

CERAMIC O.IMF

C1521

1-107-826-11

CAPACITOR, CHIP

CERAMIC

O.IMF

C1522

1-126-942-61

CAPACITOR, ELECT

1000MF/25V

C1523

1-126-942-61

CAPACITOR, ELECT

1000MF/25V

C1524

1-162-970-11

CAPACITOR CERAMIC 0.01MF/25V

C1525

1-162-970-11

CAPACITOR CERAMIC 0.01MF/25V B

C1526

1-126-927-11

CAPACITOR, ELECT

2200MF/10V

C1527

1-162-970-11

CAPACITOR CERAMIC 0.01MF/25V B

C1528

1-126-927-11

CAPACITOR, ELECT

2200MF/10V

C1529

1-162-970-11

CAPACITOR CERAMIC 0.01MF/25V

C1530

1-126-934-11

CAPACITOR, ELECT

220MF/16V

C1531

1-126-935-11

CAPACITOR, ELECT

470MF/16V

C1532

1-126-934-11

CAPACITOR, ELECT

220MF/16V

C1533

1-162-970-11

CAPACITOR CERAMIC 0.01MF/25V B

C1534

1-126-964-11

CAPACITOR,

ELECT lOMF/SOV

C1535

1-162-970-11

CAPACITOR CERAMIC 0.01MF/25V

C1536

1-127-760-11

CAPACITOR, CERAMIC

4.7MF/6.3V

C1537

1-164-227-11

CAPACITOR, CERAMIC

0.022MF/25V

C1538

1-126-964-11

CAPACITOR, ELECT

10MF/50V

C1539

1-126-933-11

CAPACITOR, ELECT

100MF/16V

C1540

1-126-933-11

CAPACITOR, ELECT

100MF/16V

C1542

1-126-964-11

CAPACITOR, ELECT

10MF/50V

C1543

1-126-942-61

CAPACITOR, ELECT

1000MF/25V

C1544

1-126-961-11

CAPACITOR, ELECT

2.2MF/50V

C1545

1-162-970-11

CAPACITOR CERAMIC 0.01MF/25V

7-16

PVM-9L2
