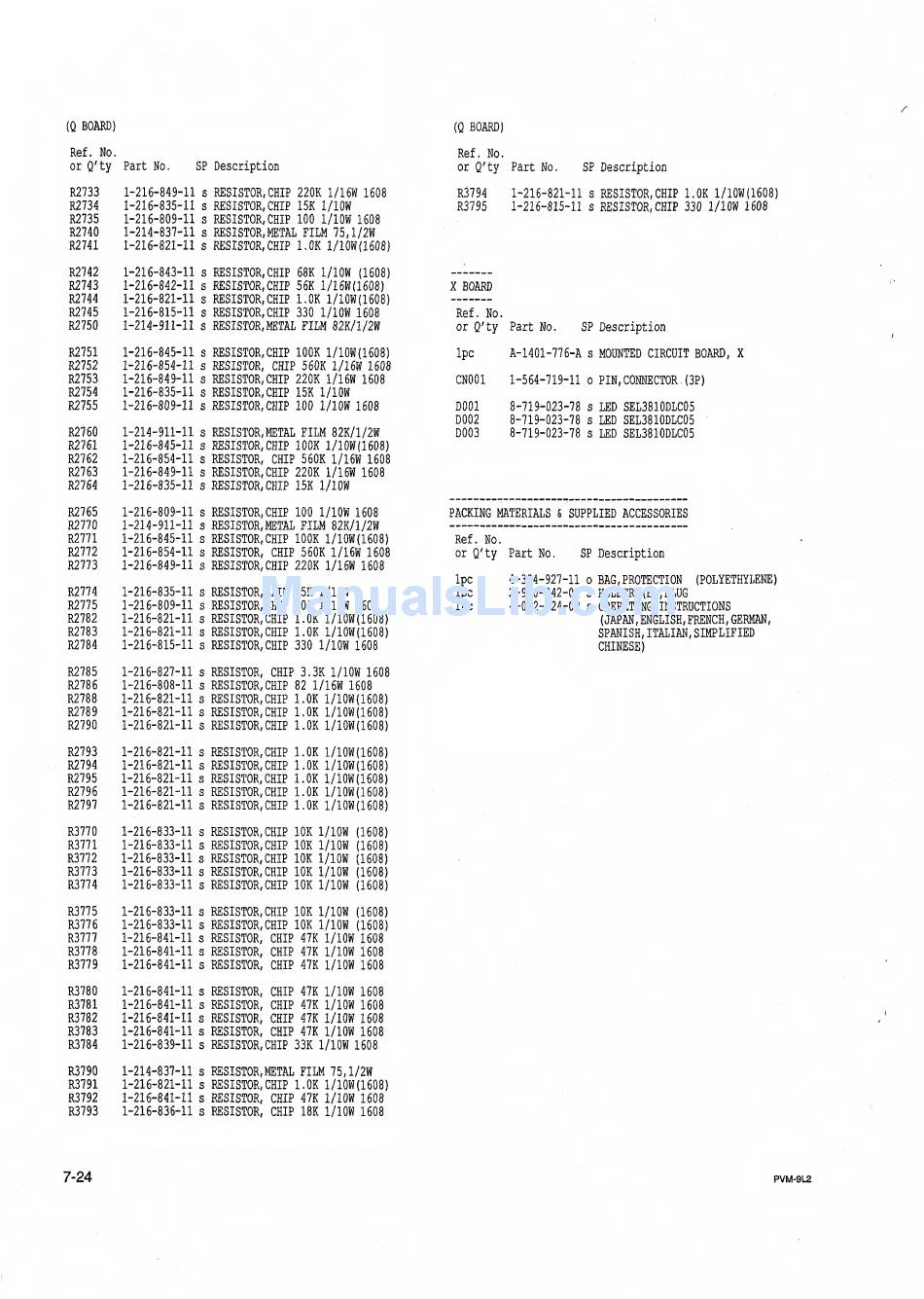

Sony PVM-9L2 Service Manual Page 66

Trinitron color video monitor.
Hide thumbs
  • Contents

Advertisement

(Q
BOARD)
Ref. No.
or Q'ty
Part
No.
SP
Description
R2733
1-216-849-11
s
RESISTOR, CHIP 220K 1/16W 1608
R2734
1-216-835-11
s
RESISTOR, CHIP 15K 1/lOW
R2735
1-216-809-11
s
RESISTOR, CHIP
100
1/lOW
1608
R2740
1-214-837-11
s
RESISTOR, METAL
FILM 75,1/2W
R2741
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W{1608)
R2742
1-216-843-11
s
RESISTOR, CHIP 68K 1/lOW
(1608)
R2743
1-216-842-11
s
RESISTOR, CHIP 56K
1/1617(1608)
R2744
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R2745
1-216-815-11
s
RESISTOR, CHIP 330 1/lOW 1608
R2750
1-214-911-11
s
RESISTOR, METAL
FILM 82K/1/2W
R2751
1-216-845-11
s
RESISTOR, CHIP lOOK 1/10W(1608)
R2752
1-216-854-11
s
RESISTOR, CHIP 560K 1/16W 1608
R2753
1-216-849-11
s
EESISTOR,CHIP 220K 1/16W
1608
R2754
1-216-835-11
s
RESISTOR, CHIP 15K 1/lOW
R2755
1-216-809-11
s
RESISTOR, CHIP 100 l/lOW 1608
R2760
1-214-911-11
s
RESISTOR, METAL
FILM 82K/1/2W
R2761
1-216-845-11
s
RESISTOR, CHIP lOOK 1/10W(1608)
R2762
1-216-854-11
s
RESISTOR, CHIP 560K 1/16W 1608
R2763
1-216-849-11
s
RESISTOR, CHIP
220K 1/16W
1608
R2764
1-216-835-11
s
RESISTOR, CHIP 15K 1/lOW
R2765
1-216-809-11
s
RESISTOR, CHIP 100 1/lOW 1608
R2770
1-214-911-11
s
RESISTOR, METAL
FILM
82K/1/2W
R2771
1-216-845-11
s
RESISTOR, CHIP lOOK 1/10W(1608)
R2772
1-216-854-11
s
RESISTOR, CHIP 560K 1/16W 1608
R2773
1-216-849-11
s
RESISTOR, CHIP 220K 1/16W 1608
R2774
1-216-835-11
s
RESISTOR, CHIP 15K 1/lOW
R2775
1-216-809-11
s
RESISTOR, CHIP 100 1/lOW 1608
R2782
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R2783
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R2784
1-216-815-11
s
RESISTOR, CHIP 330 1/lOW 1608
R2785
1-216-827-11
s
RESISTOR, CHIP 3.3K 1/lOW 1608
R2786
1-216-808-11
s
RESISTOR, CHIP
82
1/16W
1608
R2788
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W{1608)
R2789
1-216-821-11
s
RESISTOR,CHIP l.OK 1/10W(1608)
R2790
1-216-821-11
s
RESISTOR,CHIP l.OK 1/10W(1608)
R2793
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R2794
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R2795
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R2796
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R2797
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R3770
1-216-833-11
s
RESISTOR, CHIP lOK 1/lOW
(1608)
R3771
1-216-833-11
s
RESISTOR, CHIP lOK 1/lOW
(1608)
R3772
1-216-833-11
s
RESISTOR, CHIP lOK 1/lOW
(1608)
R3773
1-216-833-11
s
RESISTOR, CHIP lOK 1/lOW
(1608)
R3774
1-216-833-11
s
RESISTOR, CHIP lOK 1/lOW
(1608)
R3775
1-216-833-11
s
RESISTOR, CHIP lOK 1/lOW
(1608)
R3776
1-216-833-11
s
RESISTOR, CHIP lOK 1/lOW
(1608)
R3777
1-216-841-11
s
RESISTOR, CHIP 47K 1/lOW 1608
R3778
1-216-841-11
s
RESISTOR, CHIP 47K 1/lOW 1608
R3779
1-216-841-11
s
RESISTOR, CHIP 47K 1/lOW 1608
R3780
1-216-841-11
s
RESISTOR, CHIP 47K 1/lOW 1608
R3781
1-216-841-11
s
RESISTOR, CHIP 47K 1/lOW 1608
R3782
1-216-841-11
s
RESISTOR, CHIP 47K
1/lOW
1608
R3783
1-216-841-11
s
RESISTOR, CHIP 47K 1/lOW 1608
R3784
1-216-839-11
s
RESISTOR, CHIP 33K 1/lOW 1608
R3790
1-214-837-11
s
RESISTOR, METAL
FILM 75,1/2W
R3791
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R3792
1-216-841-11
s
RESISTOR, CHIP 47K 1/lOW 1608
R3793
1-216-836-11
s
RESISTOR, CHIP 18K 1/lOW 1608
(Q
BOARD)
Ref. No.
or Q'ty
Part
No.
SP
Description
R3794
1-216-821-11
s
RESISTOR, CHIP l.OK 1/10W(1608)
R3795
1-216-815-11
s
RESISTOR, CHIP 330 1/lOW 1608
X
BOARD
Ref. Ho.
or Q'ty
Part
No.
SP
Description
Ipc
A-1401-776-A
s
MOUNTED CIRCUIT
BOARD, X
CNOOl
1-564-719-11
0
PIN,
CONNECTOR
.
(3P)
DOOl
8-719-023-78
s
LED SEL3810DLC05
D002
8-719-023-78
s
LED SEL3810DLC05
D003
8-719-023-78
s
LED SEL3810DLC05
PACKING MATERIALS
S
SUPPLIED ACCESSORIES
Ref.
No.
or
Q'ty
Part
No.
SP
Description
Ipc
4-384-927-11
o
BAG,
PROTECTION
(POLYETHYLENE)
Ipc
2-990-242-01
s
HOLDER
(B),PLUG
Ipc
4-092-824-02
s
OPERATING INSTRUCTIONS
(JAPAN,
ENGLISH, FRENCH, GERMAN,
SPANISH, ITALIAN,
SIMPLIFIED
CHINESE)
7-24
PVM-9L2
