2. Front Panel

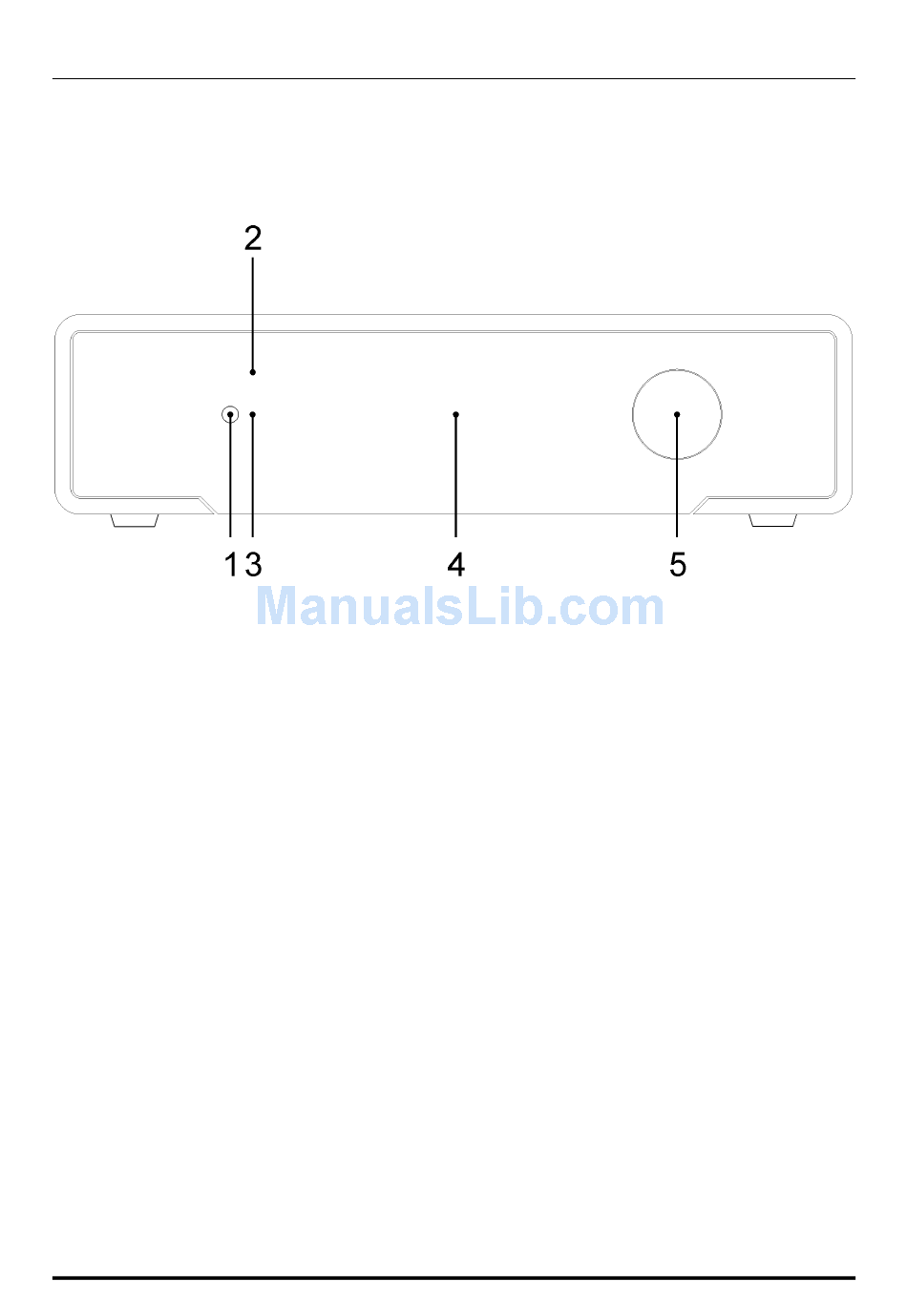

Figure 1
1) Power on/power off/mute/menu exit button. Press this button to switch the YOUNG
MKIII on when it's off. When the YOUNG MKIII is on, a short press will toggle mute, unless
the menu is active: in this case a short press will cause the menu to exit discarding any
configuration change. A more prolonged press while the YOUNG MKIII is on will cause it to
switch off.
2) Standby LED. When the YOUNG MKIII is in standby mode, this LED blinks to indicate to
the user that the device can be switched on by the included remote control. This LED is
steadily lit during the firmware update procedure.
3) IR receiver. Aim the remote control to this point to send commands to the YOUNG MKIII.
4) Display. Multifunction OLED display. During normal operation, it indicates the listening
level, the selected source, the swampling frequency (not for analog), the format (not for
analog) and the status of mute and phase (if set). When the menu is accessed, the display
shows the selected menu item and its current value.
5) Encoder. It allows for accessing and navigating the menu, selecting inputs and setting
the volume. It can be rotated and pushed. Please refer to Chapter 7 for more details.
