The zip file contains two executables, both to be used: one for the installation of the
component for the compatibility with SACD ISO files, plus a proxy file to send DSD to a
compatible audio device provided with an ASIO compliant driver, like the YOUNG MKIII.

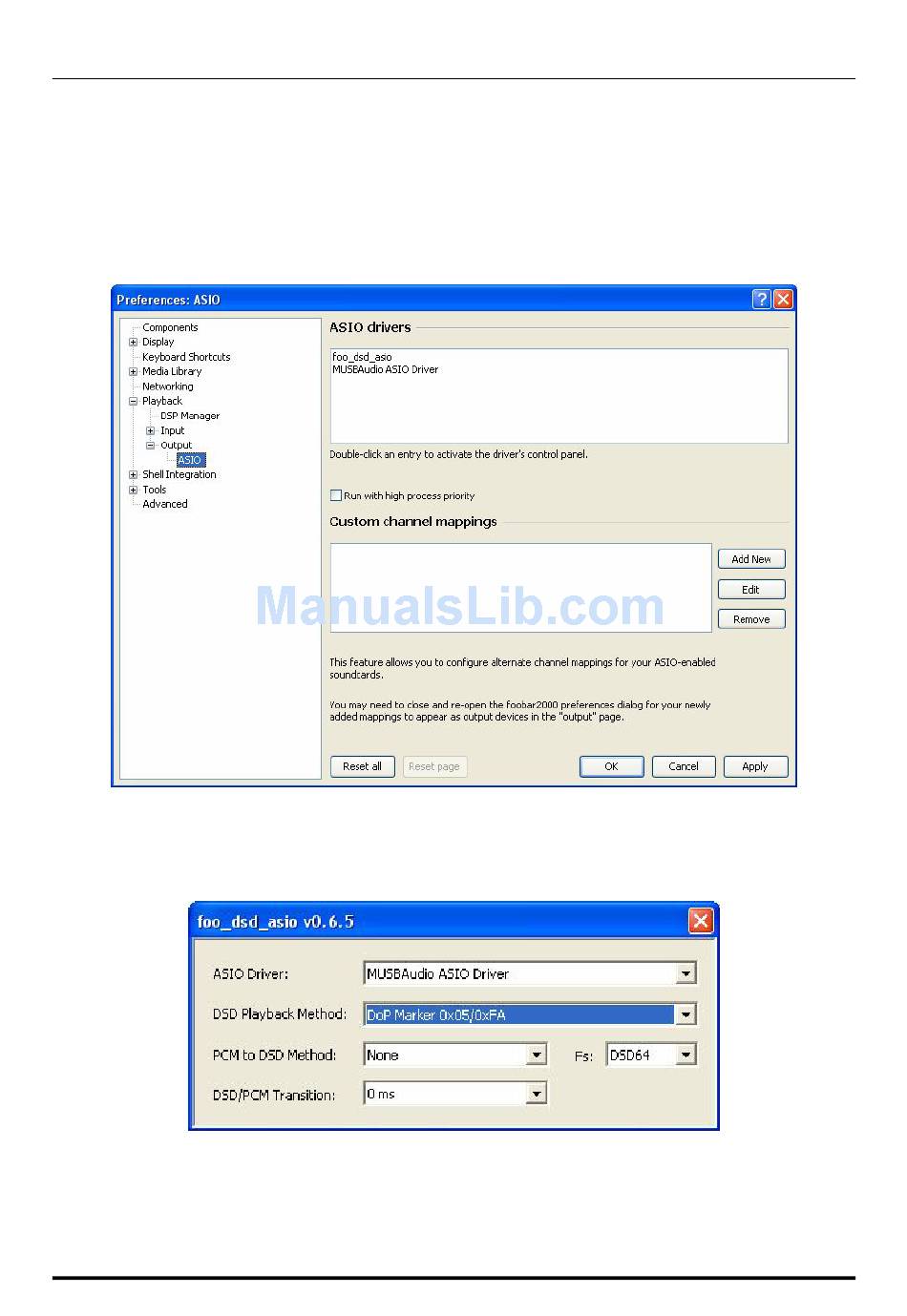

After installing DLL and proxy, in the "ASIO" section of "Output" two ASIO objects will
appear (Fig. 38): the M2Tech driver and the proxy ("foo_dsd_asio").
Double-click on "foo_dsd_asio" to open the configuration window as shown in Fig. 39.
Configure the parameters as in the figure: FooBar is now ready to send DSD streams from
DSD files to the YOUNG MKIII.
Figure 38
Figure 39
