IES205G
Unmanaged Industrial Ethernet Switch
User Manual
Shenzhen 3onedata Technology Co., Ltd.
Add: 3/B, Zone 1, Baiwangxin High Technology Industrial
park, Nanshan District, Shenzhen, 518108 China
Tel: +86-755-26702668
Fax: +86-755-26703485
Website: www.3onedata.com
【Summary】
IES205G switch is a high-performance, cost-effective
unmanaged industrial Ethernet switch. The switch supports
5-channel 10/100/1000Base-T(X) Ethernet ports. The
product features a fanless and industrial design with low
consumption. It offers high reliability and meets various
industrial environment requirements, for example, working
temperature ranges from -40 ℃ to 75 ℃ . This device
provides cost-efficient solutions.
【Packing List】
Please check the packaging and accessories when you first
use the device.
Industrial Ethernet switch × 1
User manual × 1
Qualify certificate × 1
Warranty card × 1
Please contact us or our distributors if your equipment has
been damaged or if any accessories are lost. We will try
our best to satisfy you.
【Feature】
Support 5-Port 10/100/1000Base-T(X) (RJ45)
Support MAC address automatic learning, automatic
aging
Support 1-channel 12~48VDC power input with 3-pin
terminal block, reverse protection
Working temperature -40~75℃, storage temperature
-40~85℃
DIN-Rail mounting
Fanless design
IP40 grade protection, corrugated high-strength metal
case

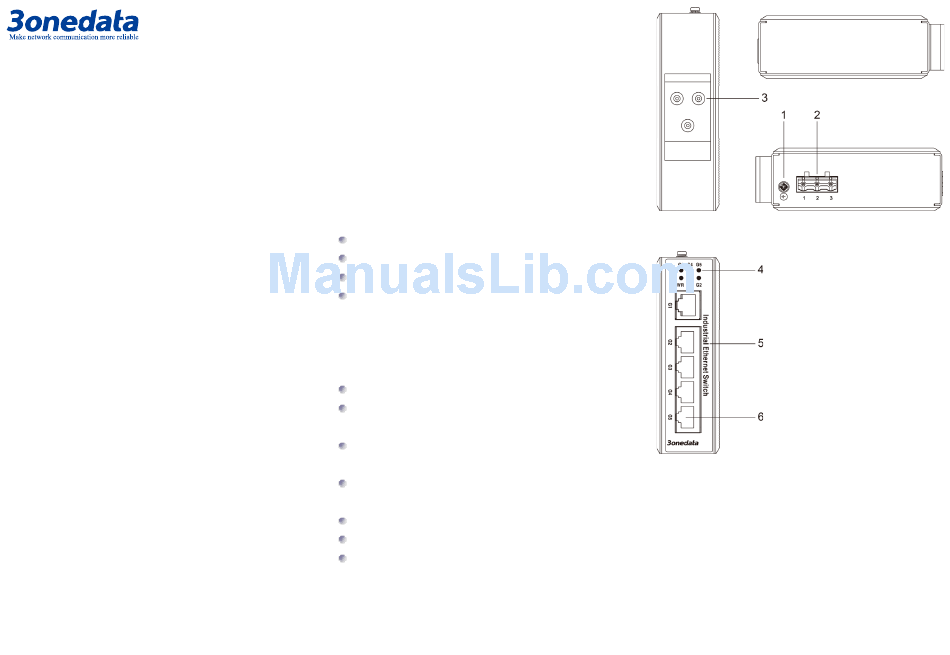

【Panel Layout】
IES205G
- 1 -
Rear panel
Top and bottom panels
Front panel
1. Ground screw
2. Terminal block for power input
3. DIN-Rail kit
4. Equipment status indicators
5. Product identification
6. 10/100/1000Base-T(X) Ethernet ports
