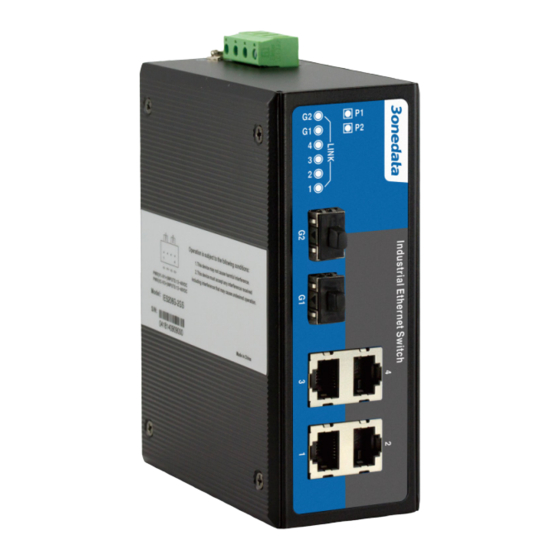

IES206G-2GS
Industrial Ethernet switch
User manual
Shenzhen 3onedata Technology Co., Ltd.
Tel: +86-755-26702668 Fax: +86-755-26703485
www.3onedata.com
【Summarize】
IES206G-2GS-P (12/48VDC) is a kind of industrial, unmanaged,
gigabit Ethernet switch. It supports 4 port 10Base-T/100Base-TX
/1000 Base-TX Ethernet port and 2 port 1000Base-X SFP fiber
port, no fan, low consumption design, working function more
steadily. It accorded with FCC, CE standard, industrial design
requirement, it can work steadily in -40 ℃ ~75 ℃ working
temperature, it can provide reliable and quickly solution for your
Ethernet device.
【Packing list】
The industrial Ethernet switch is shipped with the following items.
If any of these items are missing or damaged, please contact your
customer service representative for assistance.
Industrial Ethernet switch ⅹ 1
User manual ⅹ 1
DIN-Rail mounting kit ⅹ 1
Warranty card ⅹ 1
【Features】
Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z,
IEEE802.3ab store and forward
Support 4 port 10Base-T/100Base-TX/1000Base-TX and 2
port 1000Base-X SFP Gigabit port
Ethernet port support full/half duplex mode, MDI/MDI-X
Support 12~48VDC power input, power supply support
non-polarity
Working temperature:-40℃~75℃
No fan, low consumption, Industrial design standard
IP40 protect grade, high strength iron shell, DIN-rail
mounting
【Panel layout】

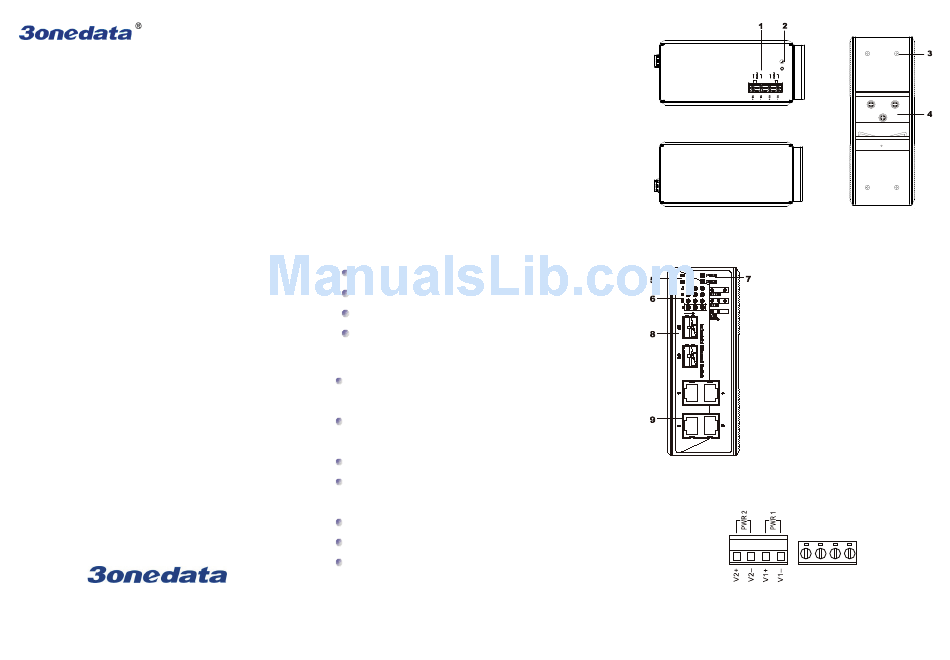

Vertical view and bottom view
- 1 -
Front panel view
【Power supply input】
The switch support redundant DC power input, which provides
two terminal blocks for PWR1 and PWR2 input. Voltage input
Rear view
1. Power input terminal block
2. Ground screw
3. Screw holes for Wall Mounting Kit
4. DIN-Rail mounting kit
5. SFP port G1 and G2 connection
indicator
6. Ethernet port connection indicator
and rate state display
7. Power indicator
8. 1000Base-FX SFP port
9. 10Base-T/100Base-TX/1000Base-
TX (RJ45) ports
