IES2010-2GS Series
Industrial Ethernet Switch
User Manual
Shenzhen 3onedata Technology Co., Ltd.
Tel: +86-755-26702668 Fax: +86-755-26703485
www.3onedata.com
【Summarize】

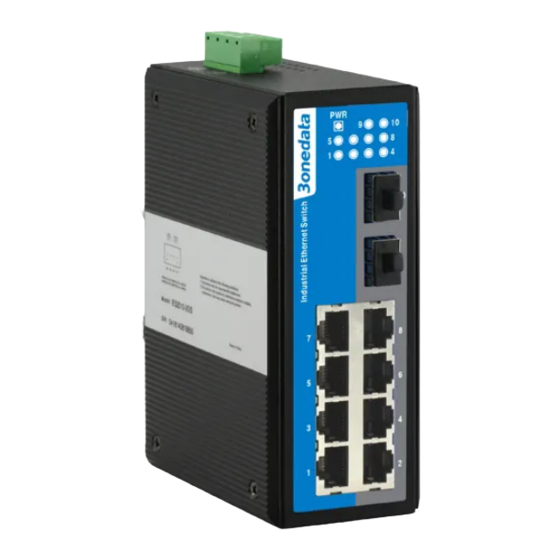

IES2010-2GS series switch is a type of plug-and-play industrial
unmanaged redundant Ethernet switch, which supports 8 Fast
Ethernet ports, and 2 Gigabit Ethernet ports (SFP slots). No fan,
low consumption and industrial grade design. More steadily work
capability. To satisfy applications in different industrial
environments, the switch can also provide wide temperature type in
accommodation with limit temperature (-40 ~ 75°C) and we have
got CE, FCC approvals.
【Packing list】
The industrial Ethernet switch is shipped with the following items.
If any of these items are missing or damaged, please contact your
customer service representative for assistance.
Industrial Ethernet switch ⅹ 1
User manual ⅹ 1
DIN-Rail mounting kit ⅹ 1
Warranty card ⅹ 1
【Feature】
Support 8 Fast Ethernet ports, and 2 Gigabit Ethernet ports
(SFP slots)
Support IEEE802.3/802.3u /802.3x/802.3z
Support 10/100M, half/full duplex, MDI/MDI-X
Support broadcast storm shield
DC12～48V Power input
Support industrial grade level
IP30 protection, metal shell, DIN Rail

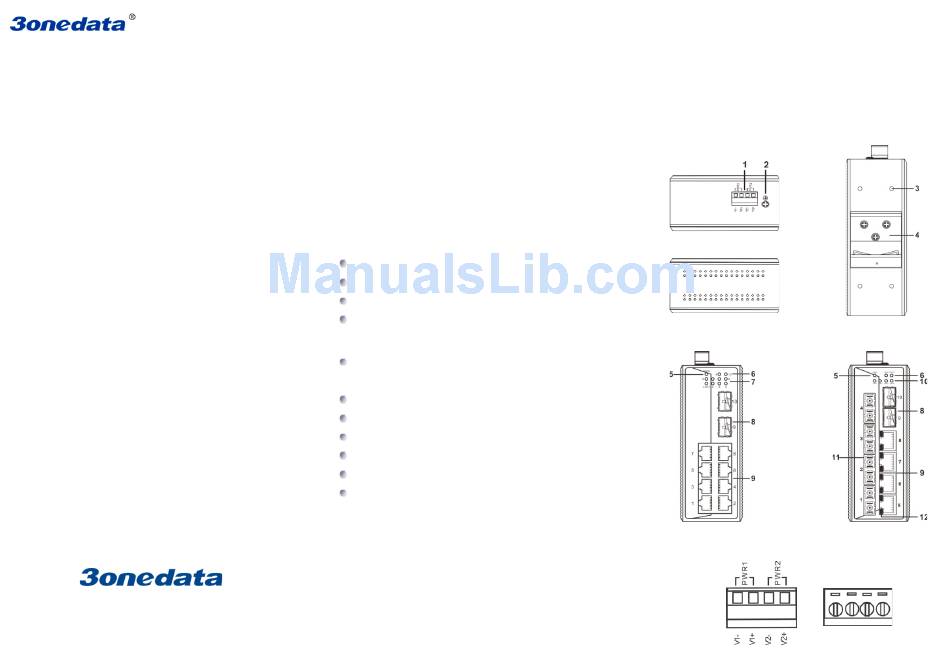

【Panel layout】
1. Power input terminal block
2. Ground screw
3. Screw holes for Wall Mounting Kit
4. DIN-Rail mounting kit
5. Power indicator
6. SFP port connection indicator
- 1 -
7. 10/100Base-T(X) (RJ45) port connection indicator
8. 1000Base-FX SFP port
9. 10/100Base-T(X) (RJ45) port
10. 100Base-FX fiber port connection indicator
11. 100Base-FX fiber port
12. RJ45 port connection indicator and rate state display
Vertical view and bottom view
Front panel view
【Power supply input】
Rear view
