IES3020-4GS Series
Industrial Ethernet Switch

User manual

Shenzhen 3onedata Technology Co., Ltd.
Tel: +86-755-26702668 Fax: +86-755-26703485
www.3onedata.com
【Summarize】

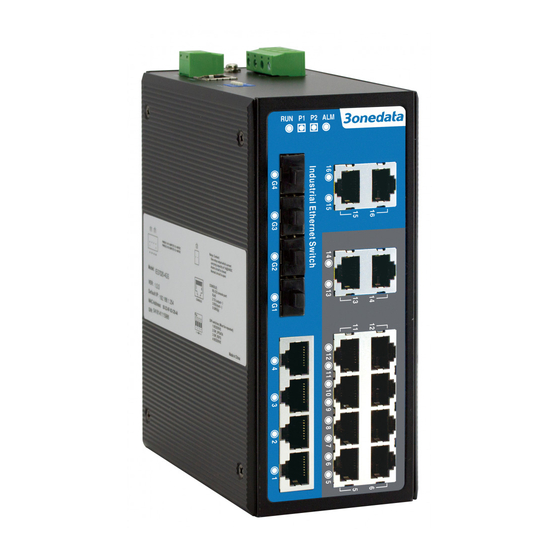

IES3020-4GS series is a Plug-and-play unmanaged
industrial Ethernet switch. The IES3020-4GS-P (12-48VDC)
industrial Ethernet switches consists of 16 Ethernet ports
and
4
Gigabit
SFP
ports.
The
(12-48VDC) consists of 14 Ethernet ports, 2 Fiber ports and
4 Gigabit SFP ports. The IES3020-4GS-4F-P (12-48VDC)
consists of 12 Ethernet ports, 4 Fiber ports and 4 Gigabit
SFP ports that provide an economical solution for your
industrial Ethernet connection. It supports auto flow control,
full/half duplex mode and MDI/MDI-X self-adaption. It built in
standard industry design, all components are based on
Industry grade, no fan, low consumption, can satisfied some
kinds of requirements of industry field, to achieve high
reliability.

【Packing list】

The industrial Ethernet switch is shipped with the following
items. If any of these items are missing or damaged, please
contact your customer service representative for assistance.
Industrial Ethernet switch × 1
User manual × 1
DIN-Rail mounting kit × 1
Warranty card × 1
【Feature】
High performance network exchange technology
Support
IEEE802.3,
IEEE802.3u,
IEEE802.3z
Support MAC address auto-learning, auto-aging
Support flow control
Support Broadcast storm suppression
Support power relay alarm output
Support 8K MAC address
Support 12.8Gbps backboard bandwidth
Support
redundancy
power
supply(12 ~ 48VDC),
non-polarity
Reliable Industrial grade design
Industrial grade design, -40~75℃ work temperature
- 1 -
No fan deign
IP40 protection grade
DIN rail

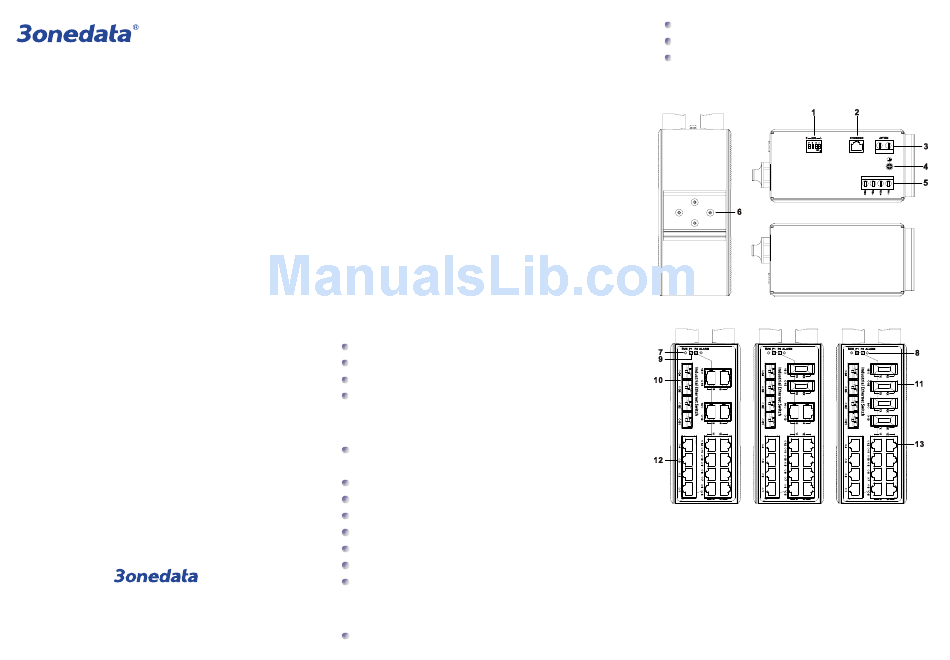

【Panel layout】

IES3020-4GS-2F-P
Rear view
Front panel view
IEEE802.3x,
IES3020-4GS
1.
DIP switches
2.
Console port
3.
2-pin terminal block for relay output
4.
Ground screw
5.
Power input terminal block
6.
DIN-Rail mounting kit
7.
System running LED
Vertical view and bottom view
IES3020-4GS-2F
IES3020-4GS-4F
