IES3016G
Industrial Ethernet Switch
User manual
Shenzhen 3onedata Technology Co., Ltd.
Tel: +86-755-26702668 Fax: +86-755-26703485
www.3onedata.com
【Summarize】
IES3016G is an industrial grade and unmanaged Ethernet switch
which supports 16 Gigabit Ethernet Ports. Standard Industry
design can satisfied every requirement of the industry scene. All
components used industry grade, it takes products high reliability.
It provided wide voltage power supply input. The switch accorded
to CE, FCC standard and Industry grade 4 design requirement,
support 2 channel DC power input and -40~75℃ working
temperature, can meet all kinds of Industrial environment
requirement and provide the solution of the economy.

【Packing list】

The industrial Ethernet switch is shipped with the following items.
If any of these items are missing or damaged, please contact your
customer service representative for assistance.
Industrial Ethernet switch ⅹ 1
User manual ⅹ 1
DIN-Rail mounting kit ⅹ 1
Warranty card ⅹ 1
【Feature】
Support IEEE802.3, IEEE802.3u, IEEE 802.3x, IEEE802.3ab
Support 16 10/100/1000Base-T(x) RJ45 Ethernet ports
Support MAC address auto-learning, auto-aging
Support 10K MAC address
Support 56Gbps backboard bandwidth
Support redundancy DC power supply(12~48VDC)
Industrial grade 4 design, -40-75℃ work temperature
IP40 protection grade, DIN-Rail mounting

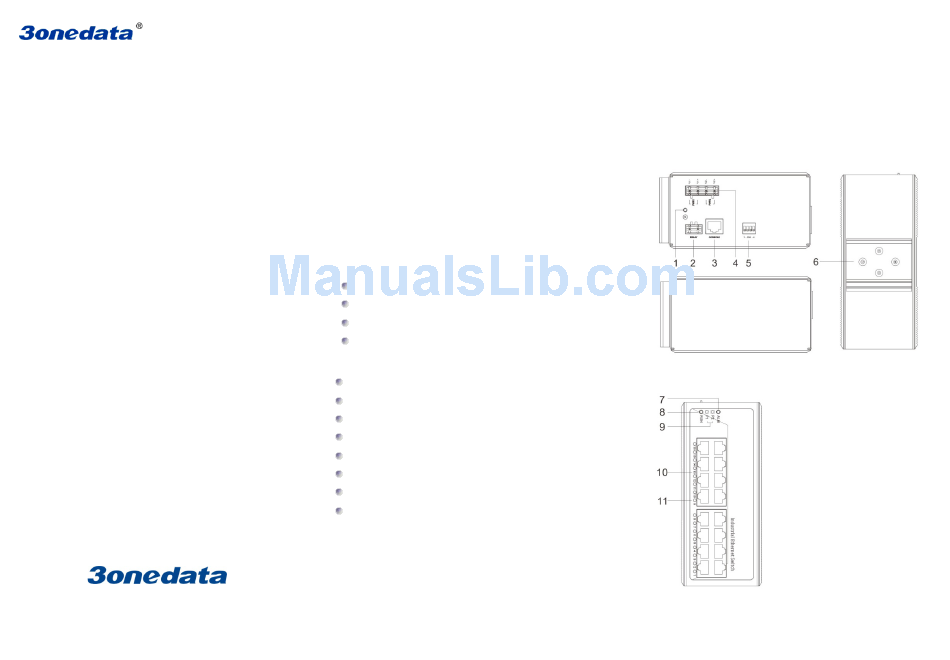

【Panel layout】

1. Ground screw
2. Console port
3. 2-pin terminal block for relay output
4. Power input terminal block
5. DIP switches
- 1 -
6. DIN-Rail mounting kit
7. Relay alarm LED
8. System running LED
9. Power indicator
10. 10Base-T/100Base-TX/ 1000Base-TX Ethernet port
11. Link/ACT LEDs
Vertical view and bottom view
Front panel view
【Power supply input】
Rear view
