Operation

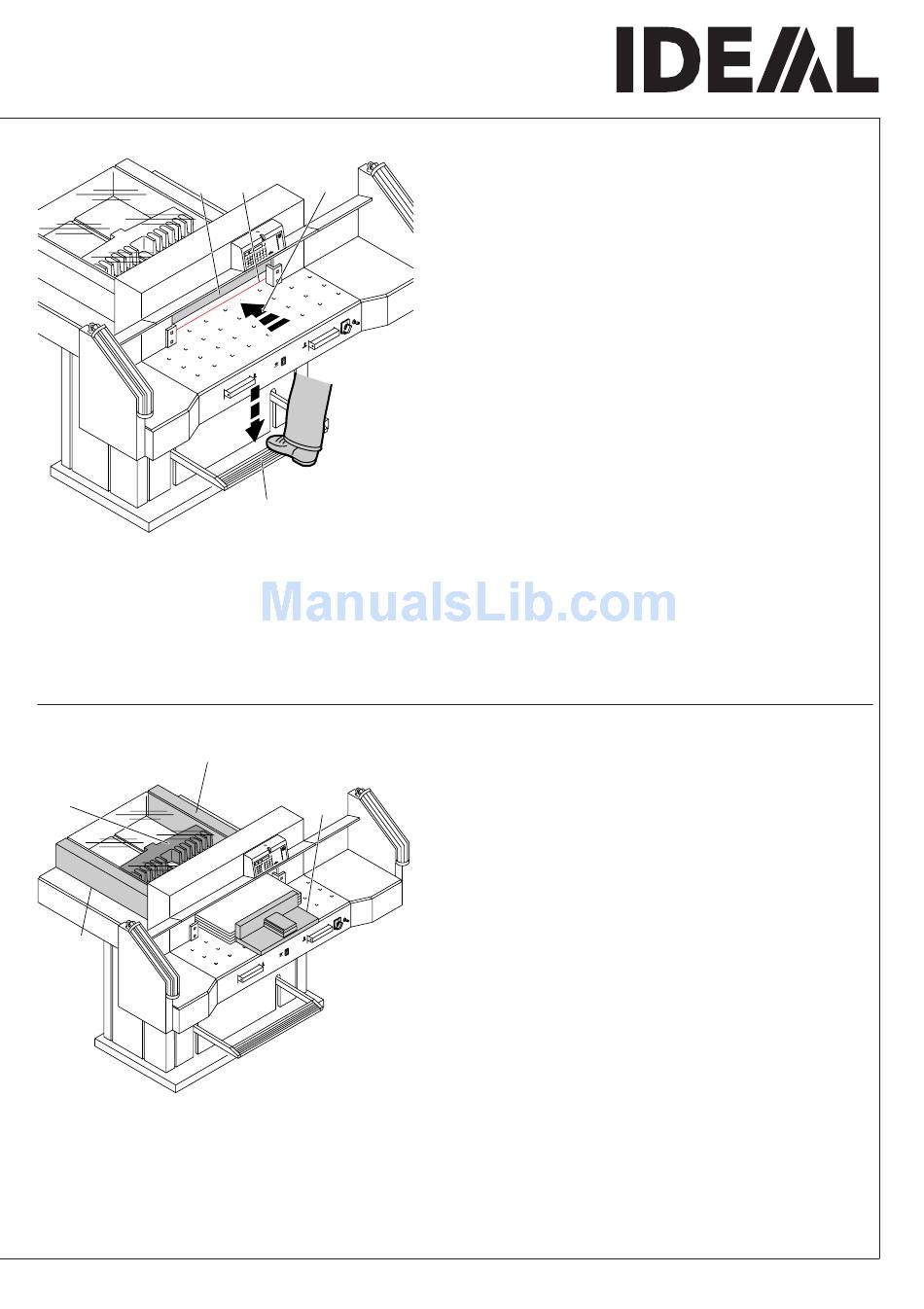

Optical cutting line indicator:
C A B
Optical cutting red line (A), indicates the
position of the cut. Blade cuts on the front
edge (B) of the light beam.
Mechanical cutting line indicator:
The clamp (C) can be used as cutting line
indicator for cutting. Pre-clamping can be
performed using the foot pedal (D).
Only use the optical cutting line indicator and
mechanical cutting line indicator when no
exact cut is required.
D
Position the paper on the backgauge (A) and
B
side lays left or right (B).
To move paper stacks, please use the paper
A
C
knock-up block (C) provided.
(Run backgauge to the front for turning the
paper stack).
B
