Rear Projection Outdoor Movie Screen
Note:
1.
The Ring-Stakes, Curved-Stakes & Guy Rope should always be installed for Stability.
2.
Use of this product is not recommended in gusty winds over 20mph.
Maintenance:
1. Soft cloth with mild soap &water may be used to clean the screen's surface.
2. To prolong the lifespan of this product, store it in its carry case when not in use.

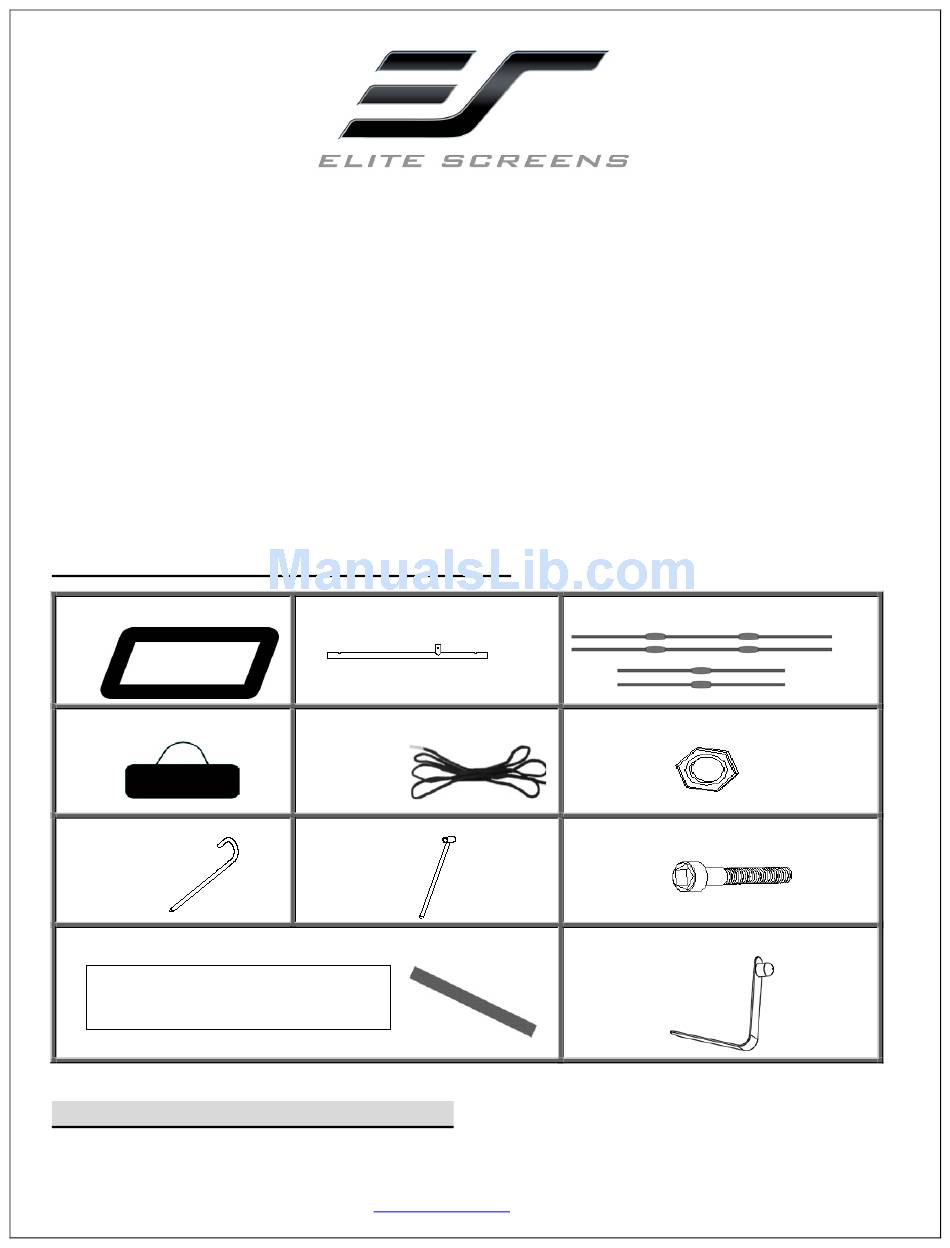

Parts checklist (Model: OMS103HR/OMS123HR)
A. Screen material x1
D. Carrying bag x1
G. Curved stake x4
J. Velcro band x24
14 Top/Bottom sections - 15cm bands
10 Left/Right sections - 13cm bands
A. Main Support Metal Frame Assembly
1. Assemble the steel tube frame by connecting the letters on the ends of the tubes together as shown in the
picture. For example, A to A, B to B etc.
042117DR
Yard Master Series
User's Guide (v. 2)
B. Steel tube x12-14
E. Guy-ropes x4
H. Ring stake x4
www.elitescreens.com
C. Fiber glass pole x4
F. M6hex nuts x2
I. M6x43mm hex screw x2
K. Lock Pins (Spare parts) x 5
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Elite Screens OMS103HR
Summary of Contents for Elite Screens OMS103HR
- Page 1 1. Soft cloth with mild soap &water may be used to clean the screen’s surface. 2. To prolong the lifespan of this product, store it in its carry case when not in use. Parts checklist (Model: OMS103HR/OMS123HR) A. Screen material x1 B.
- Page 2 2. A and J are attached and secured with the provided Hexagonal Screws (G). This will be the last step. 3. After the frame has been built, lay it on a clean scratch-free area. Step 2:Screen Material Frame Assembly (Fiber glass poles) 1.
- Page 3 (Shown below in Fig. 2) Repeat for other side. Fig. 2 4. Keeping the frame laid flat, place and center the screen material (Elite Screens logo facing up) inside the metal frame. Front of Screen material 5. Attach the screen material by the exposed areas of the vertical and horizontal support rods onto the metal frame wrapping the velcro bands around the rod and frame.
- Page 4 1. With one person at the top of the frame and the other at the bottom, begin by attaching the material with the velcro bands, starting at the 3 middle sections keeping the material centered and evenly tensioned. 2. Next, with one person at each side, attach the left and right sides of the material with the velcro bands, starting with the 3 middle sections.
- Page 5 4. Lastly, tightly attach the corner sections of the material with the velcro bands. Your screen should look like the figure shown (to the left). Note: After all velcro bands are attached, check each individual band for equal tension. If needed, tighten the bands until desired tensioning is achieved.
-
Page 6: Warning Instructions
2. Always be cautious of strong windy conditions. We don’t recommend using over 20mph. 3. A soft terry cloth with mild soap and water may be used to clean the screen surface. For a local Elite Screens contact or Technical Support, please visit www.elitescreens.com 042117DR www.elitescreens.com...
