Elite Screens Yard Master Series User Manual

Yard Master Series

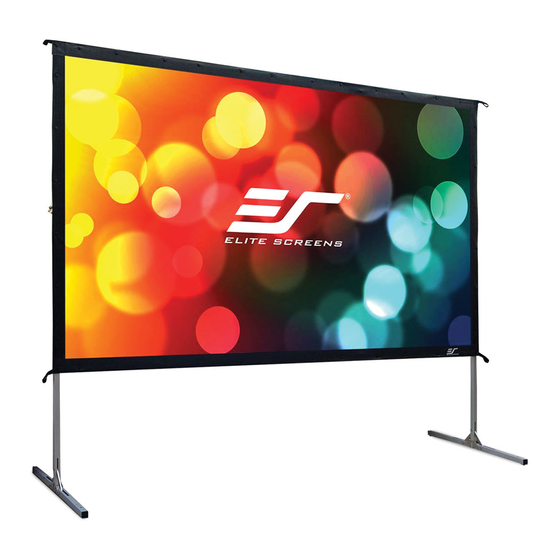

Rear Projection Outdoor Movie Screen

Note:

1. The Ring-Stakes, Curved-Stakes & Guy Rope should always be installed for Stability.
2. Use of this product is not recommended in gusty winds over 20mph.

Maintenance:

1. Soft cloth with mild soap &water may be used to clean the screen's surface.
2. To prolong the lifespan of this product, store it in its carry case when not in use.
Parts c hecklist ( Model: O MS100HR/OMS120HR)
A. S creen m aterial x 1
D. C arrying b ag x 1
G. C urved s take x 4
J. V elcro b and x 20-­‐30pcs
Length 1 5CM
A. Main Support Metal Frame Assembly
1. Assemble the steel tube frame by connecting the letters on the ends of the tubes together as shown in
the picture. For example, A to A, B to B etc.
2. A and J are attached and secured with the provided Hexagonal Screws (G). This will be the last step.
User's G uide
B. S teel t ube x 12-­‐14
E. G uy-­‐ropes x 4
H. R ing s take x 4
C. F iber g lass p ole x 4
F. M 6 h ex n uts x 2
I. M 6x43mm h ex s crew x 2
