Osprey Tension Dual Series Limit Switch Adjustment Instructions
Caution: The screen's Top Black Drop is already set to its maximum drop distance. There is NO
extra black top drop in the roller. Attempting to increase the drop will damage the motor and VOID
your warranty with Elite Screens. DO NOT use these instructions to try and get more out of your
standard black masking drop. Please contact Elite Screens before making any adjustments.

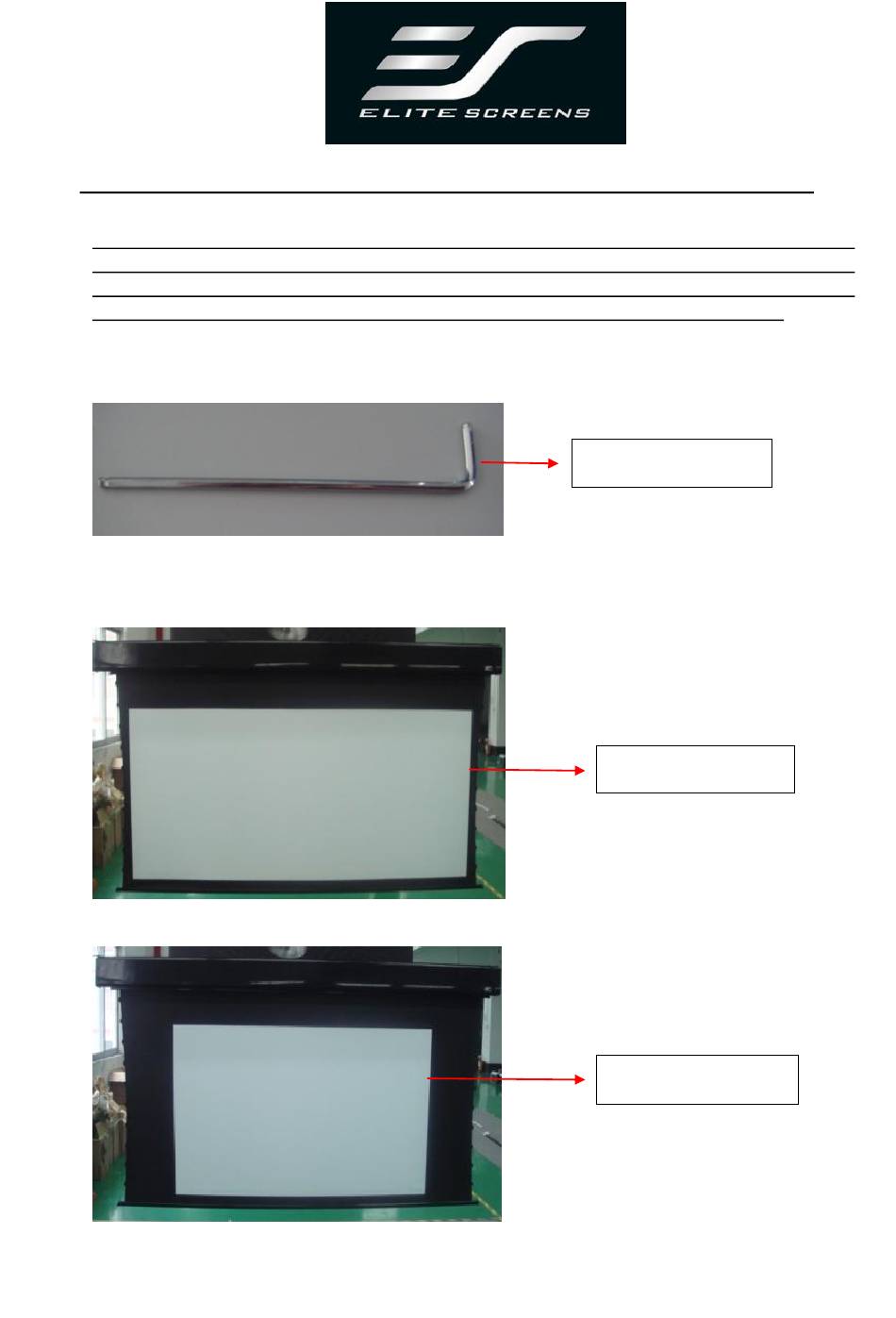

1. Allen Wrench
2. Screens
5/32" Allen wrench
First screen (2.35:1)
Second screen (16:9)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Osprey Tension Dual Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elite Screens Osprey Tension Dual Series

Summary of Contents for Elite Screens Osprey Tension Dual Series

  • Page 1 Attempting to increase the drop will damage the motor and VOID your warranty with Elite Screens. DO NOT use these instructions to try and get more out of your standard black masking drop. Please contact Elite Screens before making any adjustments.
  • Page 2 3. Limit Switch Adjustment Locations Up adjustment switch for the second screen (16:9) UP adjustment switch Down adjustment switch for the second screen (16:9) Up adjustment switch for the first screen (2.35:1) Down adjustment switch for the first screen (2.35:1) Note: Inside of case (NOTE: When turning the limit switches, bear in mind that a full‐circle turn in either direction will create a one inch adjustment)
  • Page 3 Use your allen-wrench to turn the UP switch counter-clockwise. When you turn the UP switch, the screen will retract correspondingly. Stop rotating the switch once the weight bar lines up with the casing. (WARNING: If you continue to rotate the switch once the weight bar fits flush with the casing, the screen will attempt to retract further, causing damage to the unit.
  • Page 4 If you need to increase the amount of top black masking, refer to the following steps. Use your remote control to fully lower the screen by pressing the 16:9 button. Use your allen-wrench to turn the DOWN switch counter-clockwise. When you turn the DOWN switch, the screen will lower correspondingly.
  • Page 5 If the screen lowers too much, simply rotate the DOWN adjustment switch clockwise, the screen will retract into its casing. (NOTE: Please avoid over-turning the switch.) 6. Adjusting the Retract Position for the first screen (2.35:1) If the first screen will not retract completely (as shown in Fig.3), use the following steps.
  • Page 6 When you turn the UP switch, the screen will retract correspondingly. Stop rotating the switch once the weight bar lines up with the casing. (WARNING: If you continue to rotate the switch once the weight bar fits flush with the casing, the screen will attempt to retract further, causing damage to the unit.
  • Page 7 DOWN adjustment switch clockwise, the screen will retract into its casing. (NOTE: Please avoid over-turning the switch.) Note: As a rule, Elite Screens does not recommend making any unnecessary adjustments to the screen, as improper adjustments will damage the unit.
