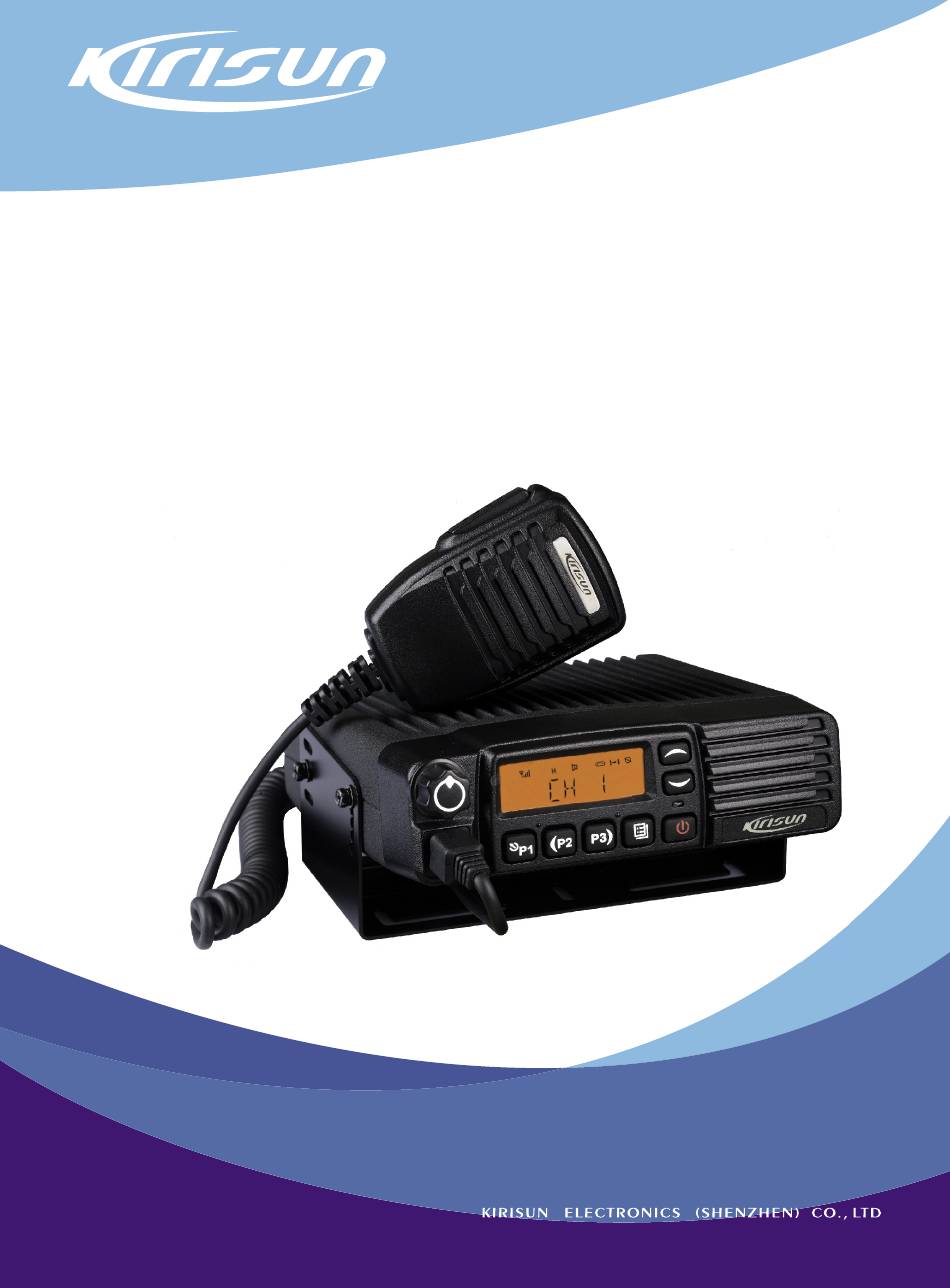

  • Page 1 PT8200 SERVICE MANUAL VHF /UHF MOBILE RADIO V070828...

  • Page 2: Table Of Contents

    It's better to avoid putting it in rain or snow, or any other liquid to ensure its life and performance. STATEMENT Kirisun Electronic (Shenzhen) Co., Ltd owns the copyright of KSP8200 software. Unauthorized Duplication of KSP8200 software is strictly prohibited.

  • Page 3: Chapter 1 Introduction

    Introduction the following table before using. Any articles are found lost or damaged, This manual applies to the service and maintenance of PT8200 series of please contact the distributor without delay. FM mobile radio, and is designed for the engineers and professional technicians that have been trained by our company.

  • Page 4: Chapter 2 Radio Overview

    PT8200 SERVICE MANUAL conductor to the positive terminal of the accumulator and the black con- 2.2 Display Screen -ductor to the negative terminal. At last, ring the remained conductor and fix it. Note: Please maintain the sufficient relaxation of the power cable to make it convenient to dismantle the radio in the state of power connection.

  • Page 5: Chapter 3 Mode Combinations

    PT8200 SERVICE MANUAL Buttons Function Description Buttons Function Description Press this button to make selection among the 9.Power level 26.Call Button 1 Sends the DTMF/2Tone code assigned to call high, medium and low transmission power, and Selection 1 key. will be shown on the LCD 27.Call Button 2...

  • Page 6: Chapter 4 Disassembly For Repair

    6 Emergency alarm PT7200 coding switch nut 203-007200-R08 7 Personality template PT8200 static protection film 204-008200-R08A 8 Scanning function PT8200 dustproof screen for horn 204-008200-R07A 9 Channel data Horn 121-100000-R19 Please refer to the Help document of KSP8200 for details.
  • Page 7 PT8200 SERVICE MANUAL . Instruction for disassembly of the station for maintenance 1 RF-PCB Disassembly .Release the 9 screws (M3x25) for the upper and lower covers, open the aluminum alloy lower cover (see the left figure below).

  • Page 8: Chapter 5 Circuit Description

    PT8200 SERVICE MANUAL After the disassembly above, you can carry out corresponding repara- .Release the 4 (M2.5x5) screws of the baffle and the 2 fixing screws -tion and adjustment according to the actual malfunction. of the 15PIN DB socket, remove the metal baffle, the plastic buckle and the horn hole plug (see the right figure above).
  • Page 9 PT8200 SERVICE MANUAL 1st High frequency amplifier PIN3 PIN 5 Signals entering the antenna enters RF amplifier (Q26) via the trans- IF demodulation TA31136 -mitting/receiving switching circuit (D30/D31) and the band-pass filter (L48, L38 and variodes: D50, D26). After being amplified, the signals...

  • Page 10: Chapter 6 Semiconductor Data

    PT8200 SERVICE MANUAL -cted and the red LED (D12) is on, Led D1 to D4 provide the LCD back- Transmitting system -light, which is on when operating the radio. The LCD is in the Block diagram shape and can display up to 8 digits or letters.

  • Page 11: Chapter 7 Description Of Components

    PT8200 SERVICE MANUAL Pin Port Name In/Out Function Pin Port Name In/Out Function BSHIFT Clock selection control KEY BLC Front panel keypad backlight control EXT SPK External SPK conversion output RESET CPU reset input P4 key XOUT CPU clock output...
  • Page 12 ISV305 Receive band pass varicap RD01MUS1 RD07MVS1 2SK18 24 HT7150- 1 DA221 Mark: B1 M: K RDA0002 PT8200 mainboard BOM / 136-174MHz Material Serial No. Name/Spec. Quantity Installation Positon PT8200PCB ,PT8200V-080430.PCB,ROHS 101-08200V-R04 Frequency demultiplier/ UPB1509GV ROHS U405 102-1509GV-R01 Memory IC / AT24CL256AN...
  • Page 13 PT8200 SERVICE MANUAL No Material Serial No. Name/Spec. Quty Installation Positon U304 102-FP3502-R01 Regulator IC / XC62FP3502PR,SOT-89,ROHS U803 102-HT9172-R01 DTMF decode IC/ HT9172,sop, ROHS U401 102-M3062L-R01 CPU / M16C-M3062LFGPGP,FLASH,100P6Q-A,ROHS U301, U303, U333 102-M78L05-R01 Regulator IC / NJM78L05UA ROHS D839 103-00DZ18-R01 Chip regulator diode / 02DZ18(X.Y),ROHS...
  • Page 14 PT8200 SERVICE MANUAL No Material Serial No. Name/Spec. Quty Installation Positon R46, R290, R869, R235, R117, R843, R7 63 109-060103-R01 R216, R60, R243, R251, R293, R414, R418,R309, R34,R39, Chip resistor / 0603,10K 5%,ROHS R419, R812, R816, R877, R392, R600, R101, R106, R727,...
  • Page 15 PT8200 SERVICE MANUAL No Material Serial No. Name/Spec. Quty Installation Positon 109-200471-R01 Chip resistor / 2010,470R 5%,ROHS R262 111-010000-R01 Plug-in voltage-dependent resistor / 10D220 ROHS 111-030000-R01 F841 Chip Fuse / 433003,3A/32V,1206 ROHS 112-063100-R01 Chip capacitor / 0603,10P 5%,50V,C0G,ROHS C75, C170, C150, C253, C742...
  • Page 16 PT8200 SERVICE MANUAL No Material Serial No. Name/Spec. Quty Installation Positon C299, C318, C328, C371, C372, C373, C380, C381, C382, C383, C431, C621, C672, C837, C850, C871, C766, C322 112-063472-R01 Chip capacitor / 0603,4700P 10%,50V,X7R,ROHS C552, C555 112-063473-R01 Chip capacitor / 0603,0.047uF...
  • Page 17 124-050000-R14 3.5mm Plug-in Speaker-Mic socket ,ROHS 124-090000-R01 2PIN Plug-in Speaker socket / WCPW20-02,,ROHS CN601, CN606 124-110000-R08 15PIN Plug-in socket / 2DS-D112-P12(3*5PIN),ROHS Cn402 PT8200 mainboard BOM / 400-470MHz No Material Serial No. Name/Spec. Quty Installation Positon PT8200PCB ,PT8200U-081022.PCB,ROHS 101-08200U-R03 U405 102-1509GV-R01...
  • Page 18 PT8200 SERVICE MANUAL No Material Serial No. Name/Spec. Quty Installation Positon 103-SM3MA1-R01 Chipdiode / DSM3MA1,ROHS D838 104-A123JE-R01 Chip triode / DTA123JE(ROHM),ROHS 104-A144EE-R01 Chip triode / DTA144EE(ROHM),ROHS 104-C114EE-R01 Chip triode / DTC114EE(ROHM),ROHS Q402, Q482, Q682, Q472 104-C144EE-R01 Chip triode / DTC144EE(ROHM),ROHS...
  • Page 19 PT8200 SERVICE MANUAL No Material Serial No. Name/Spec. Quty Installation Positon 109-060204-R01 Chip resistor / 0603,200K 5%,ROHS R319, R320 109-060220-R01 Chip resistor / 0603,22R 5%,ROHS R300 109-060221-R01 Chip resistor / 0603,220R 5%,ROHS R98, R317, R153 109-060222-R01 Chip resistor / 0603,2.2K...
  • Page 20 PT8200 SERVICE MANUAL No Material Serial No. Name/Spec. Quty Installation Positon 112-063103-R01 Chip capacitor / 0603,0.01uF 10%,50V,X7R,ROHS C576, C577, C881, C882, C618, C638, C242, C21, C33, C925, C556, C557, 112-063104-R01 Chip capacitor / 0603,0.1uF 10%,50V,X7R,ROHS C71, C88, C271, C275, C286, C314, C329,...
  • Page 21 PT8200 SERVICE MANUAL No Material Serial No. Name/Spec. Quty Installation Positon 112-063R50-R01 Chip capacitor / 0603,0.5P 0.1P,50V,C0G,ROHS C104, C105, C291, C312, C292, C313 112-063R75-R01 Chip capacitor / 0603,0.75P 0.25P,50V,C0G,ROHS 112-072105-R01 Chip Ta capacitor / TP MODEL,SIZE P,1uF 20%,10V,ROHS C603, C604 112-072155-R01 Chip Ta capacitor / TP MODEL,SIZE P,1.5uF 20%,10V,ROHS...
  • Page 22 PT8200 SERVICE MANUAL Material Serial No. Name/Spec. Quty Installation Positon 124-010000-001 4PIN Plug-in GPS socket / 1020042008,4PIN,1.27mm,,ROHS CN609 124-020000-R08 FFC/FPC Connector / 34PIN,P=0.5mm,Horizontal lower contact with lock ROHS CN401 124-050000-R14 3.5mm Plug-in Speaker-Mic socket ,ROHS 124-090000-R01 2PIN Plug-in Speaker socket / WCPW20-02,,ROHS...

  • Page 23: Chapter 8 Adjustment

    PT8200 SERVICE MANUAL Chapter 8 Adjustment 8.1 Adjusting explanation Table 8.1 Voltage controlled oscillator adjust Instrumentation requirement Item Test condition Test point Adjustment parts remarks Setting Power supply voltage DC Power supply teriminal:13.8V 0.8V 0.3V Digital review Transmitting lock CH: transmit low frequency point 5.5V 0.3V...
  • Page 24 CH: Medium Frequency Point frequency deviator Antenna PC Tuning mode 0.75kHz: Wide 50Hz CH: High Frequency Point /Integration Tester 0.35kHz: Narrow PT8200-01 Testing frequency point Transmitting Receiving Testing frequency point Center point 155.1MHz 155.05MHz Low Frequency Point 136.1MHz 136.05MHz High Frequency Point 173.9MHz...

  • Page 25: Chapter 9 Pcb Diagram

    PT8200 SERVICE MANUAL Chapter 9 PCB Diagram PT8200-01 TOP Numerical Chart PCB...
  • Page 26 PT8200 SERVICE MANUAL PT8200-01 TOP Item Chart PCB...
  • Page 27 PT8200 SERVICE MANUAL PT8200-01 BOTT Numerical Chart PC...
  • Page 28 PT8200 SERVICE MANUAL PT8200-01 BOTT Item Chart PCB...
  • Page 29 PT8200 SERVICE MANUAL MAINBOARD TOP UNIT MAINBOARD BOTTOM UNIT...
