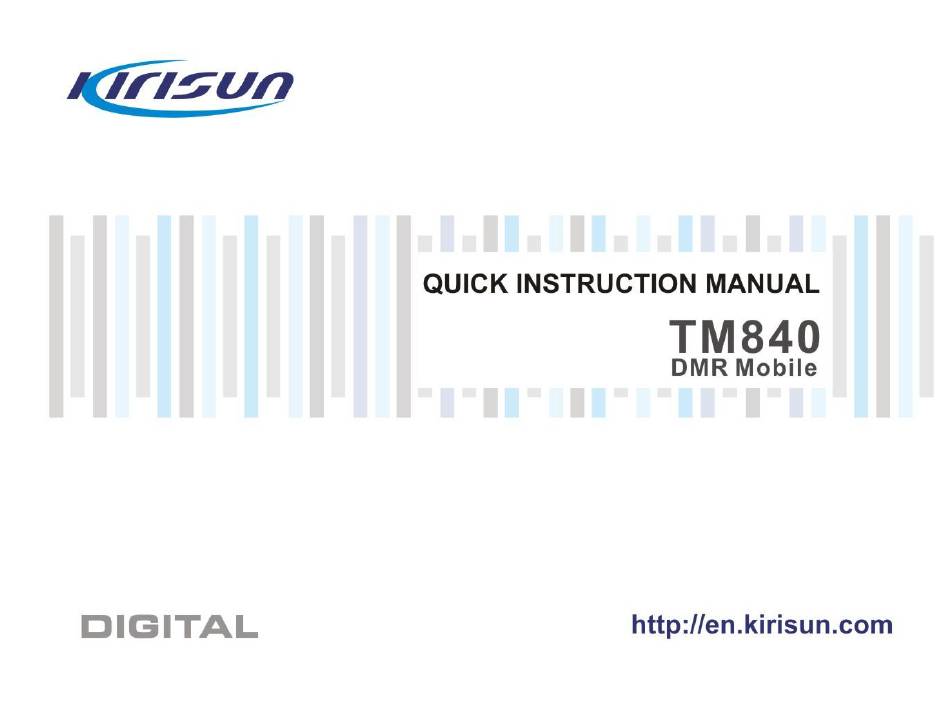

- Page 1 TM840 DMR Mobile RadioQuick User Guide...
- Page 2 We believe KIRISUN DMR Mobile Radio, which always incorporates the latest technology, can bring great convenience to your life and work. We also believe that the quality and function of KIRISUN DMR Mobile Radio can meet your demands for reliable communication.
-
Page 3: Safety Information
TM840 DMR Mobile RadioQuick User Guide 1 Safety Information The government bans on operation the radio transmitter without permission in the jurisdiction scope. Illegal operation will punished with fine or arrest. This product can only be maintained by the professional technicians. ... -
Page 4: First Use
TM840 DMR Mobile Radio Quick User Guide 2 First Use 2.1 Unpacking and Checking Please unpack carefully and check all the items listed in the following table before discarding the packing material. If any damage or loss occurs during shipment, please contact your dealer. 2.1.1 Standard Accessories Material Quantity... - Page 5 TM840 DMR Mobile RadioQuick User Guide Plastic handle screw, contain matching flat washer and spring washer ST4.8*20 Self-tapping screws Certificate of Approval Quick User Guide...
- Page 6 TM840 DMR Mobile Radio Quick User Guide...
- Page 7 TM840 DMR Mobile RadioQuick User Guide 2.2 Preparing Your Mobile for Use 2.2.1 Installing your Mobile 1）Using six ST4.8*20 self-tapping self-drilling screws to fasten the bracket at the suitable place inside the vehicle. 2）Using two Plastic handle screw to fasten the mobile on the bracket. 3）...
- Page 8 TM840 DMR Mobile Radio Quick User Guide 5）Connect the hand Microphones Install hand microphone Put the direction indicative plane of the hand microphone plug on the top and insert it into the microphone interface of the mobile. Then clockwise rotate the self-lock cover on the microphone plug until the self-lock cover against the card slot.
-
Page 9: Product Overview
TM840 DMR Mobile RadioQuick User Guide 3 Product Overview 3.1 Control Parts Introduction... - Page 10 TM840 DMR Mobile Radio Quick User Guide Part Name Part Name Volume Control Knob PTT Key(Hand Microphone) Microphone/Programming Cable Interface Emergency Button The Menu/Ok Button Hook off Key Up Key Dial Key Down Key P1~P4 (Programmable Keys) Return Button LCD Display On/Off Button Antenna Connector LED Indicator...
- Page 11 TM840 DMR Mobile RadioQuick User Guide 3.2 Programmable Buttons For the convenience of users to operate the radio according to their own habits, the following buttons can be programmed as short cuts to radio functions by dealer. P1 to P4 can be programmed to “long press” and short press. Note：...
- Page 12 TM840 DMR Mobile Radio Quick User Guide when receiving carrier. Squelch Off To always unmute the speaker no matter whether carrier is present or not. (Analog mode). Squelch Level Adjust the signal stress required for the radio to unmute. Scan Toggles scan on or off.
- Page 13 TM840 DMR Mobile RadioQuick User Guide Call log Selects the call log menu. Only valid in digital mode. Monitor Channel On/off monitor channel. Exit monitor channel function when pressing PTT. On/off permanent monitor channel. Don’t exit monitor channel Permanent Monitor Channel function when pressing PTT.
-
Page 14: Basic Operation
TM840 DMR Mobile Radio Quick User Guide external alarm device (light or speaker) connected to GPIO to alarm. 4 Basic Operation 4.1 Powering On/Off the Radio In the power off status, long press the Radio On-Off button to power on the mobile. The power on screen will be shown, backlight will light and the power on alert will be heard. - Page 15 TM840 DMR Mobile RadioQuick User Guide 1）Press key to enter the main menu in home screen. 2) Access to zone item by , then press to select. 3) All the zones are listed here. The current zone is indicated by 4) Press key to required zone and press to select.
-
Page 16: Receiving And Answering The Call
TM840 DMR Mobile Radio Quick User Guide When a call is initiated, the red LED lights on. The call type (private call icon , group call icon alias or ID and outgoing call icon is displayed on the LCD 4.5.1 Initiate a Call to the Default Contact In the home screen, hold down the PTT key to initiate a call to the default contact which has be set for the current channel in CPS software. - Page 17 TM840 DMR Mobile RadioQuick User Guide When a call is received in the standby mode: Green LED indicator lights on. The call type (private call icon , group call icon ), alias or ID and incoming call icon is displayed on the LCD. You can hold down PTT to call back to current contact within the hang time duration.
- Page 18 TM840 DMR Mobile Radio Quick User Guide 5 Menu Bar...
-
Page 19: Status Indicator
TM840 DMR Mobile RadioQuick User Guide 6 Status Indicator 6.1 LCD Icon Icon Name Icon Radio Status No signal Signal Strength The number of bars indicates the received signal strength. Indication Four bars are the strongest. There is new message/unread message. Message Message inbox is full. - Page 20 TM840 DMR Mobile Radio Quick User Guide Monitoring Talk-around mode is active for repeater mode; or the current Talk Around channel is direct mode. Emergency Alarm Emergency alarm mode GPS feature is available and the radio is receiving valid GPS data.
- Page 21 TM840 DMR Mobile RadioQuick User Guide 6.2 LED Indicator LED Indicator Radio Work Status Red LED lights on Radio is transmitting. Radio is receiving (voice, short message, or data) or there is an Green LED lights on activity on the channel. The radio is in the call hang time period, you can press PTT to talk Orange LED lights on back while the orange LED lights on.
-
Page 22: Maintenance And Cleaning
TM840 DMR Mobile Radio Quick User Guide 7 Maintenance and Cleaning In order to derive optimum performance and long service life from this product, please read the following maintenance and cleaning information carefully for better daily care and clean. 7.1 Maintenance Please do not puncture or scratch the mobile with hard objects. -
Page 23: Fcc Statement
TM840 DMR Mobile RadioQuick User Guide alcohol, spray or oil preparations and so on. After cleaning, must ensure that the vehicle terminal completely dry, otherwise don’t use it. Note: Please turn off the power supply of the vehicle terminal before your cleaning. FCC Statement This device complies with part 15 of the FCC Rules. - Page 24 TM840 DMR Mobile Radio Quick User Guide FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for a controlled environment. This equipment should be installed and operated with minimum distance 0.7m between the radiator antenna & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
- Page 25 TM840 DMR Mobile RadioQuick User Guide —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. IC RSS warning This device complies with Industry Canada licence-exempt RSS standard (s).
- Page 26 TM840 DMR Mobile Radio Quick User Guide Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that, the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
- Page 27 TM840 DMR Mobile RadioQuick User Guide This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.This equipment should be installed and operated with minimum distance 0.7m between the radiator & your body. IC exposition aux radiations: Cet équipement est conforme avec IC les limites d'exposition aux rayonnements définies pour contrôlé...
- Page 28 TM840 DMR Mobile Radio Quick User Guide at a location such that during radio transmission, any person or persons can come closer than the above indicated minimum safe distance to the antenna, i.e. 70cm(27.6 inches), 50% duty Cycle. To comply with current FCC RF Exposure limits, the antenna must be installed at or exceeding the minimum safe distance shown above, and in accordance with the requirements of the antenna manufacturer or supplier.
- Page 29 TM840 DMR Mobile RadioQuick User Guide transmit only when person(s) are at least the minimum distance from the properly installed, externally mounted antenna. Transmit only when people outside the vehicle are at least the recommended minimum lateral distance away from the antenna/vehicle.
