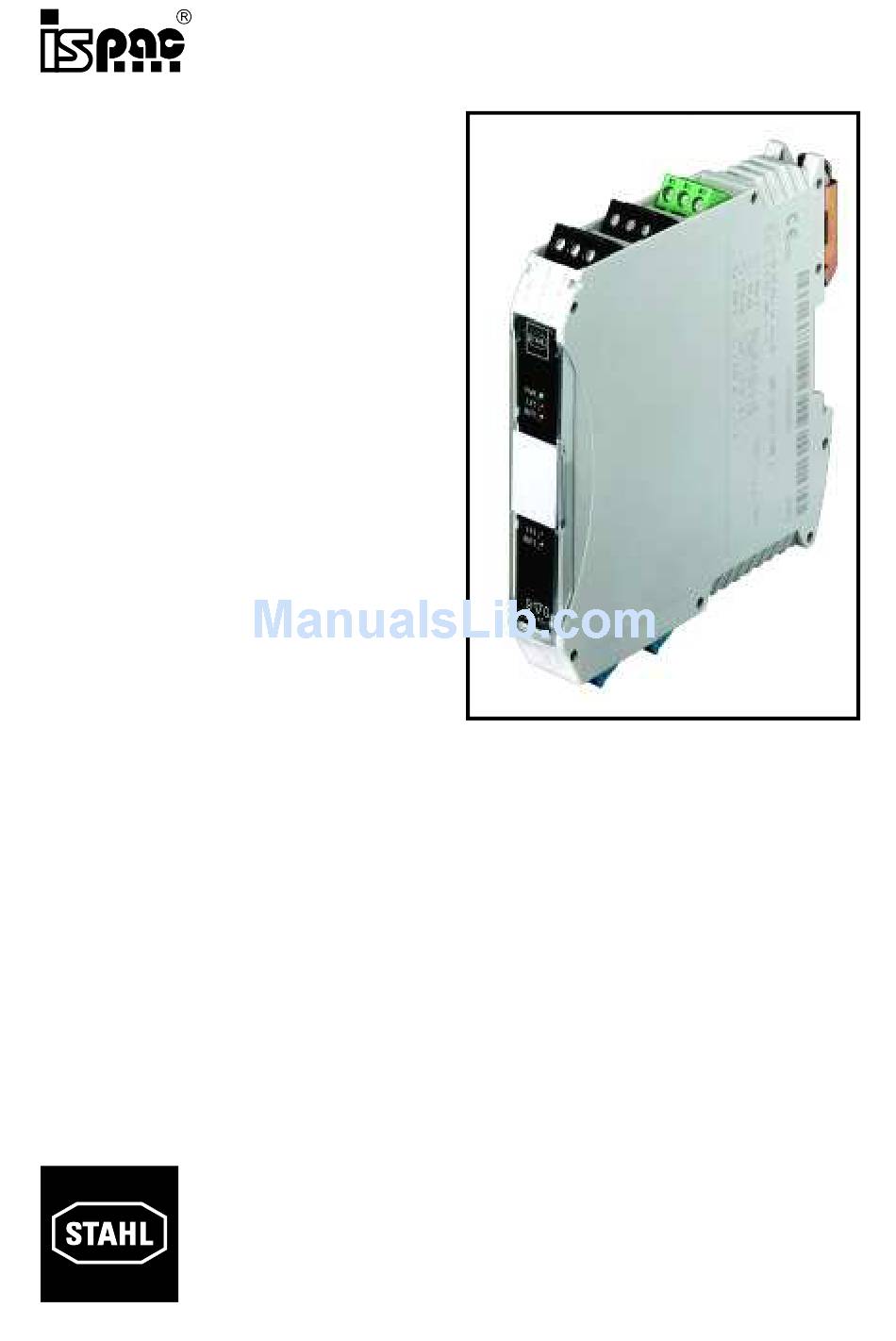

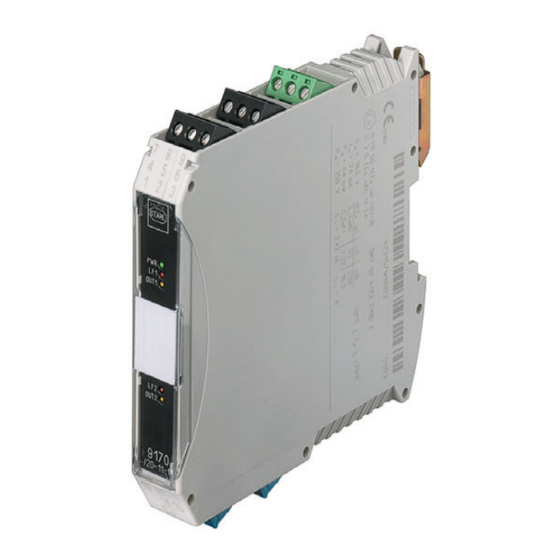

- Page 1 Type 9170 Type 9170/*2 Switching Repeater Switching Repeater 1.1.1 Operating Instructions...
-
Page 2: Table Of Contents
Content Safety instructions ....................... 3 Conformity to standards ....................3 Function ........................4 Marking and technical data ..................4 Engineering ......................... 5 Max. ambient temperatures .................. 5 Power dissipation ....................5 Engineering of the power dissipation in cabinets ..........6 Arrangement and fitting .................... -
Page 3: Safety Instructions
english Operating Instructions Safety instructions The most important safety instructions are summarised in this chapter. It is intended to supplement the relevant regulations which must be studied by the personnel responsible. When working in hazardous areas, the safety of personnel and plant depends on complying with all relevant safety regulations. -
Page 4: Function
Switching repeaters are used for intrinsically safe operation of contacts, proximity switches as defined by EN 60947-5-6 (NAMUR), optocoupler outputs, etc.Output variants equipped with power relays have been provided to meet varying requirements. Marking and technical data Manufacturer R. STAHL Type designation 9170/*2-12-*3 CE marking 0102... -
Page 5: Engineering
Ventilation: Without ventilation Installation: Single unit DIN-rail Orientation: any vertical horizontal Type 9170/12-12-13 149 ° F 149 ° F 158 ° F 9170/12-12-23 149 ° F 158 ° F 9170/22-12-13 131 ° F 149 °... -
Page 6: Engineering Of The Power Dissipation In Cabinets
Operating Instructions english Engineering of the power dissipation in cabinets When electronic devices are integrated in cabinets free air movement is restricted and the temperature rises. To minimise the temperature rise it is important to optimise the power dissipation as well as the elimination of the produced heat inside a cabinet. a) Natural Convection in closed cabinets •... -
Page 7: Arrangement And Fitting
english Operating Instructions Operating Instructions Arrangement and fitting Dimensions Dimension X Screw terminals Screw terminals 108 mm Installation The switching repeater is to be installed outside of hazardous areas. Mounting and dismounting a) Detachable terminals All devices are provided with detachable terminals. A screwdriver is needed to All devices are provided with detachable terminals. -
Page 8: Commissioning
Operating Instructions english Commissioning Connections Hazardous location Safe area Types 9170/*2-12-13 (24 V DC power supply) Types 9170/*2-12-23 (120 V AC power supply) Engineering a) Mode of connection for line fault identification (volt-free contacts k Ω at the input) 22 k Ω Open circuit identification: 22 kΩ... -
Page 9: Settings
english Operating Instructions Settings Line fault detection (LF) Line of action inverted (INV) deactivated *) activated OFF *) Channel 1 INV1 INV1 INV1 INV1 Channel 2 INV2 INV2 INV2 INV2 *) Default factory setting Operation and operational states Output state for “line of action inverted”... -
Page 10: Maintenance And Repair
Operating Instructions english Maintenance and repair It is recommended that all repairs to our devices be carried out by R. STAHL. In exceptional cases, repair may be performed by approved third-parties. The devices are maintenance-free. Troubleshooting chart: Error detection Malfunction cause(s) Corrective action “PWR”... -
Page 11: Ec-Declaration Of Conformity
EC-Declaration of Conformity... -
Page 12: Ec-Type Examination Certificate
EC-Type Examination Certificate... - Page 16 R. STAHL Schaltgeräte GmbH Am Bahnhof 30 74638 Waldenburg (Württ.) – Germany www.stahl.de ID-Nr. 9170611310 S-BA-9170/.2-001-en- 06/2009...
