Page 1: Operating Instructions

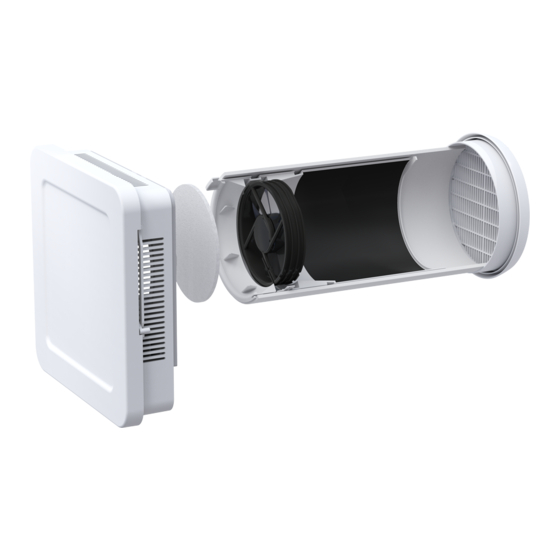

INSTALLATION AND OPERATING INSTRUCTIONS AERO AEROTUBE DD 110 AEROTUBE DD 150 Wall-mounted ventilator with sound absorption. Window systems Door systems Comfort systems... -
Page 2: Table Of Contents
AEROTUBE Installation and operating instructions Contents Target group of this documentation ..............................3 Correct use ...................................... 3 Scope of delivery / device types ..............................4 Installation ....................................... 5 Operation ......................................14 Care and maintenance .................................14 Dimensions ....................................16 Technical specifications ................................17 Accessories ....................................17 Information concerning product liability ............................18 Feedback on documentation ................................18 10.2016... -
Page 3: Target Group Of This Documentation
• Do not use the AEROTUBE in environments with corrosive or explosive atmospheres (dust, vapour or gas). • Use the AEROTUBE only with genuine accessories from SIEGENIA. • Use the AEROTUBE only when it is in a technically sound condition. Do not modify the unit's components in any way. -
Page 4: Scope Of Delivery / Device Types
AEROTUBE DD 150 Wind pressure barrier ― (only for AEROTUBE DD 150, type standard) Weather grille Pipe adapter (only for AEROTUBE DD 110, types FL, SFL, FUB, SFUB) Reducer Fixing angle (2x) Vent duct UFD Horizontal elbow joint Vent duct UF... -
Page 5: Installation
Attention! A pipe adapter is used additionally for (WDVS), the flat duct for insulation is > 5 mm. Due to AEROTUBE DD 110 types FL, SFL, FUB and SFUB. this, the dimension X is extended accordingly. Hence the X dimension must be calculated as shown below:... - Page 6 AEROTUBE Installation and operating instructions Insert sound absorption pipe, insulate (according to requirement) and seal (device types without pipe adapter) Insulate (according to requirement) Outside: Inside: Free-air seal Airtight seal 10.2016...
- Page 7 Installation and operating instructions AEROTUBE Insert sound absorption pipe with pipe adapter*, insulate (according to requirement) and seal (device types with pipe adapter) Insulate (according to requirement) Outside: Inside: Free-air seal Airtight seal Note: Ensure that you push the reducer onto the pipe adapter from the outside. Please allow an appropriate gap when sealing.
- Page 8 AEROTUBE Installation and operating instructions Mount inside cover with filter casing 10.2016...
- Page 9 Installation and operating instructions AEROTUBE Mounting the weather grille - Type Standard Position the weather grille, screw into place and seal (according to version) AEROTUBE DD 150 AEROTUBE DD 110 10.2016...
- Page 10 AEROTUBE Installation and operating instructions Installation of vent duct UFD - type FL Reducer 2°— 5° 10.2016...
- Page 11 Installation and operating instructions AEROTUBE Installation of vent duct UFD - type SFL Reducer 10.2016...
- Page 12 AEROTUBE Installation and operating instructions Installation of vent duct UFD - type FUB 10.2016...
- Page 13 Installation and operating instructions AEROTUBE Installation of vent duct UFD - type SFUB 10.2016...
-
Page 14: Operation
• Clean the AEROTUBE with a cloth moistened with a mild soap solution or cleaning agent. • The filter should be replaced every 12 months, at the latest (according to equipment). • Only use genuine filters from SIEGENIA. You can purchase replacement filters from SIEGENIA or from specialist retailers (see accessories page 16). - Page 15 Installation and operating instructions AEROTUBE Filter replacement (according to equipment) 1. Remove front panel 2. Remove filter 3. Dispose of the old filter 4. Insert new filter 5. Clip front panel into place Attention! The cable outlet in the front panel must be on the slider side.
-
Page 16: Dimensions
AEROTUBE Installation and operating instructions Dimensions Casing Sound absorption pipe Material: ASA AEROTUBE DD 110; Material: PVC AEROTUBE DD 150; Material: PVC Wind pressure barrier Weather grille only AEROTUBE DD 150 (Standard) only AEROTUBE DD 110 (Standard) only AEROTUBE DD 150 (Standard) -
Page 17: Technical Specifications
Installation and operating instructions AEROTUBE Technical specifications AEROTUBE, Type Standard AEROTUBE DD 110 AEROTUBE DD 150 Material description L = 500 mm 50 dB Sound absorption D L = 500 mm 46 dB L = 400 mm 48 dB n,e,w 11 m³/h at 2 Pa 14 m³/h at 2 Pa... -
Page 18: Information Concerning Product Liability
Any use of this product that is not in accordance with its correct use, or any adaptation of or modification to the product and its associated components for which the express consent of SIEGENIA has not been obtained, is strictly prohibited. SIEGENIA accepts no liability whatsoever for any material losses or injury to people caused by failure to comply with this stipulation. - Page 20 Phone: + Industriestraße Telefax: + Wilnsdorf info@sie enia.com GERMANY www.sie enia.com Hun ary Phone: + SIEGENIA worldwide: Austria Phone: + Italy Phone: + Belarus Phone: + Poland Phone: + Benelux Phone: + Russia Phone: + China Phone: + South Korea Phone: +...
