2.3.7 PEL-1 Electric Latch and PS-1 Stopper

1. Stopper:
1). Before installing the stopper, please make sure the gates are in close positions and the surface to be installed is flat.
2). Place the stopper on the ground using the bottom as reference, and mark the 3 drilling points.

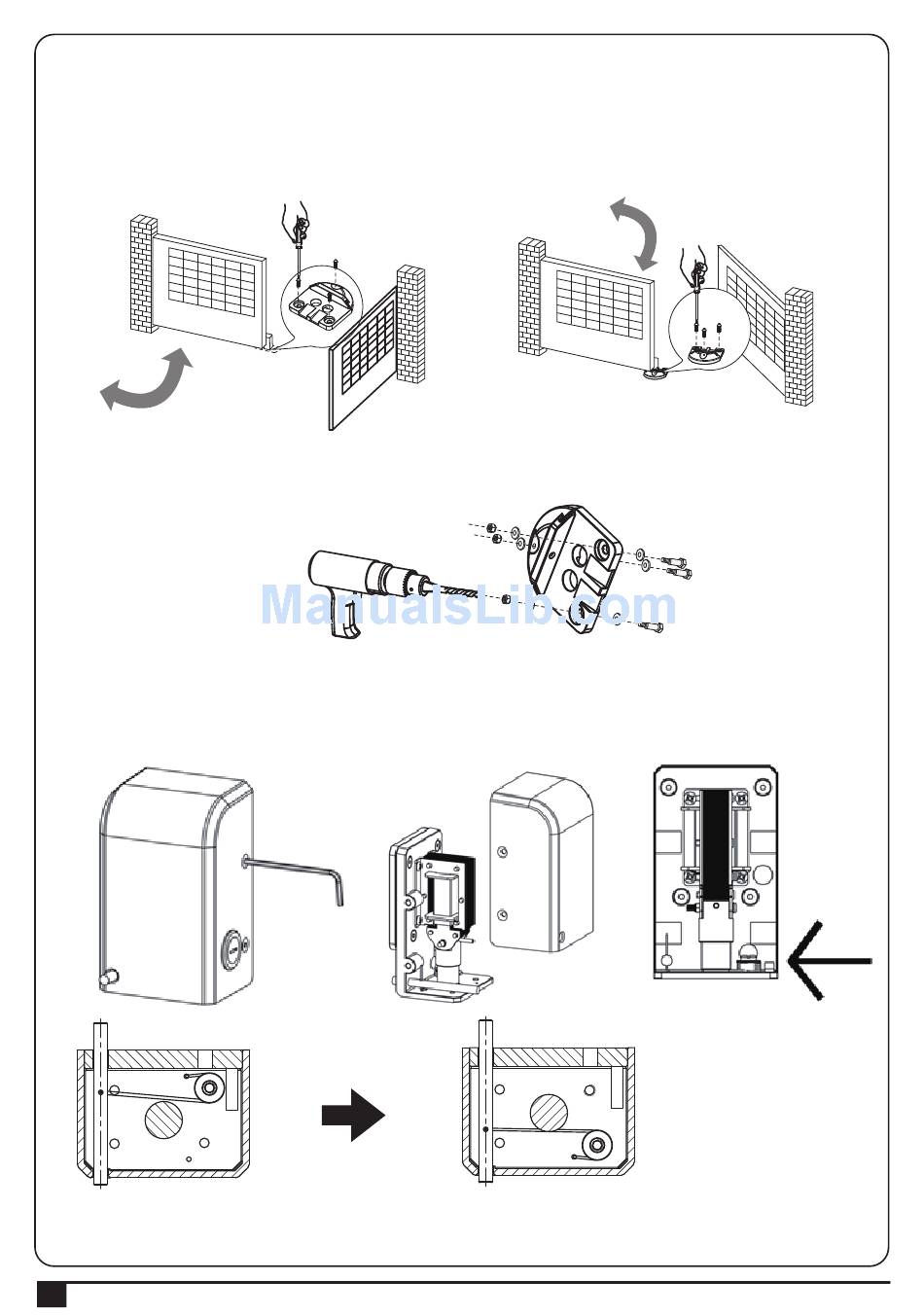

See Figure 2.3.7 (1) For the gate opened inward.
See Figure 2.3.7 (2) For the gate opened outward.
Note: If the gate is opened outward, place the stopper in opposite direction.
3). Drill the 3 marked points, and then securely attach the stopper to the ground with screws and washers.
See Figure 2.3.7 (3)
2. Electric Latch:
(If the gate is opened outward)
1). If the gate is opened outward, please change the spring inside and screw it in the different place.
See Figure 2.3.7 (4), Figure 2.3.7 (5), Figure 2.3.7 (6) & Figure 2.3.7 (7)
Figure2.3.7(4) Unscrew the screws.
Figure2.3.7(7)
Change the spring and screw it in the different place.
14
INSTRUCTIONS PW320/PW330
Figure2.3.7(5) Take the casing off.
(Installation)
Figure2.3.7(6)
The location of the spring.
