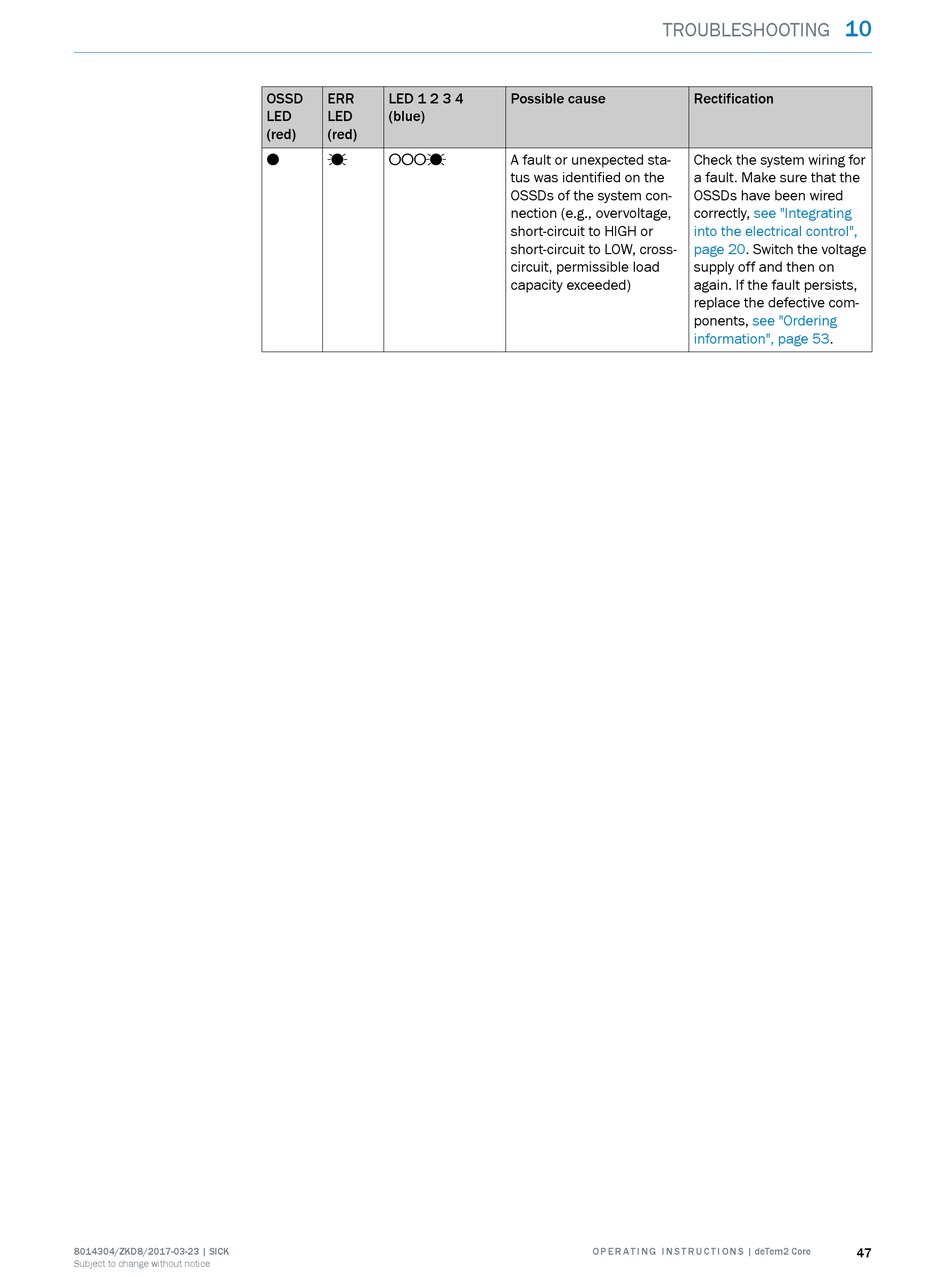

SICK deTem2 Core Operating Instructions Manual page 47

8014304/ZKD8/2017-03-23 | SICK
Subject to change without notice
OSSD ERR LED 1 2 3 4
LED LED (blue)
(red) (red)
O Ö oooÖ
TROUBLESHOOTING
Possible cause
A fault or unexpected sta‐
tus was identified on the
OSSDs of the system con‐
nection (e.g., overvoltage,
short-circuit to HIGH or
short-circuit to LOW, cross-
circuit, permissible load
capacity exceeded)
O P E R A T I N G I N S T R U C T I O N S | deTem2 Core
10
Rectification
Check the system wiring for
a fault. Make sure that the
OSSDs have been wired
correctly, see "Integrating
into the electrical control",
page 20. Switch the voltage
supply off and then on
again. If the fault persists,
replace the defective com‐
ponents, see "Ordering
information", page 53.
