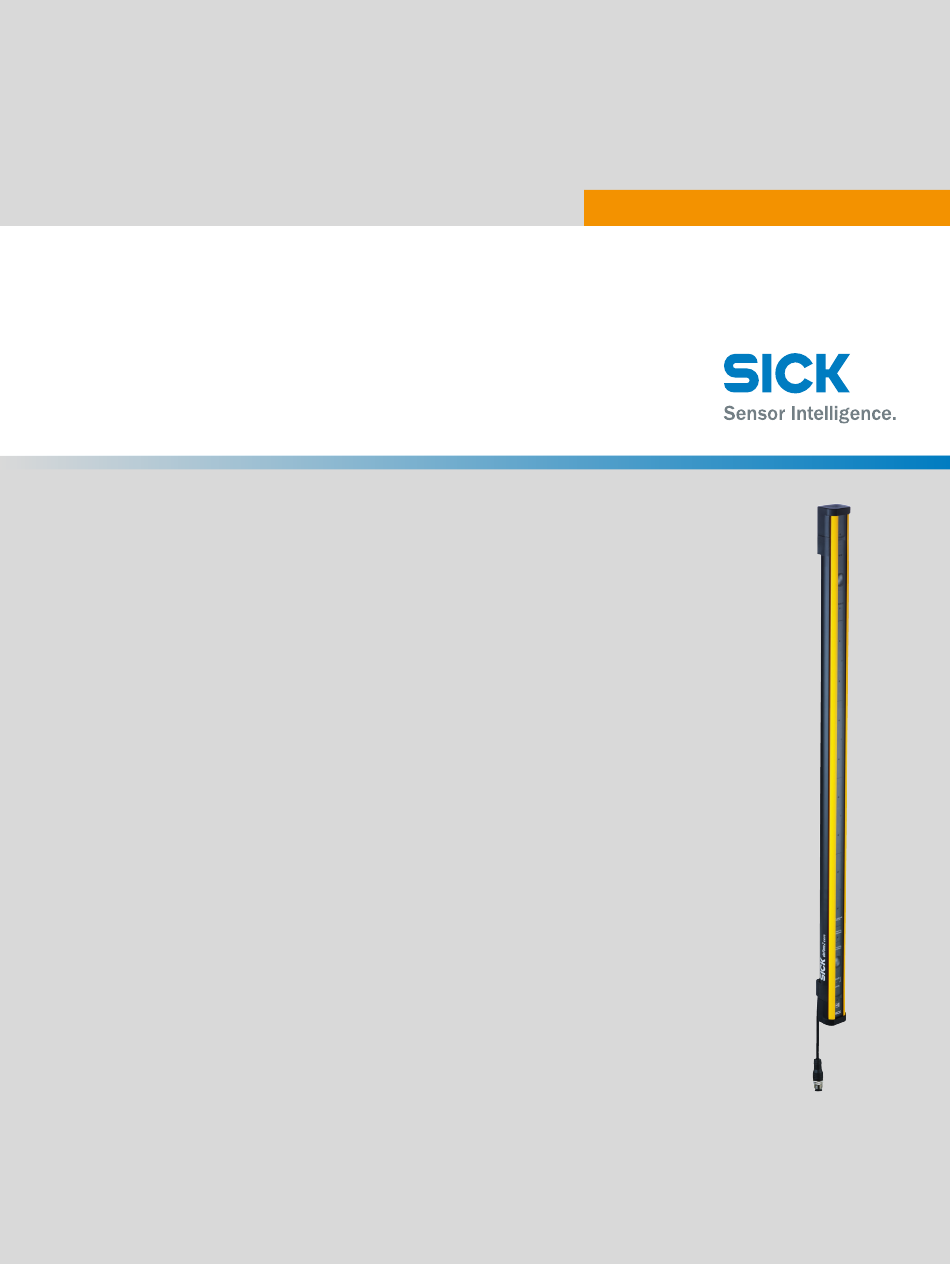

  • Page 1 O P E R A T I N G I N S T R U C T I O N S deTem2 Core Multiple light beam safety device...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    5.3.3 Mounting the replacement bracket........Electrical installation................ 36 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...
  • Page 4 14.2 Mounting accessories................14.3 Weld spark guard..................14.4 Connectivity....................O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK Subject to change without notice...
  • Page 5 List of figures..................67 List of tables..................68 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 6: About This Document

    • Guide for Safe Machinery Six steps to a safe machine O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK Subject to change without notice...

  • Page 7: Symbols And Document Conventions

    The symbol indicates the sender. The symbol indicates the receiver. 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 8: Safety Information

    O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK...
  • Page 9 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 10: Product Description

    "Deflector mirrors", page 61 • "Weld spark guard", page 59 O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK Subject to change without notice...

  • Page 11: Product Characteristics

    Two light emitting diodes on the sender indicate the operational status: 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 12: Receiver Indicators

    ERR LED also denote faults. Further topics • "Diagnostic LEDs", page 49 O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK Subject to change without notice...

  • Page 13: Example Applications

    Figure 4: Single-sided access protection Figure 5: Multi-sided access protection 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 14: Project Planning

    Overview This chapter contains important information about the design. O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK Subject to change without notice...

  • Page 15: Minimum Distance From The Hazardous Point

    Laws: Code of Federal Regulations, Title 29 (CFR29) Part 1910.217 b) Standards: ANSI B11.19 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...
  • Page 16 850 mm: C ≥ 850 mm and C ≥ C The reach/approach speed is already included in the formula. O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK...

  • Page 17: Minimum Distance From Reflective Surfaces

    The minimum distance (a) depends on the distance (D) between sender and receiver. 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 18: Minimum Distance From Reflective Surfaces

    = tan (5°) × 1,000 mm/m × D = 87.49 × 1 mm/m × D O P E R A T I N G I N S T R U C T I O N S | deTem2 Core...

  • Page 19: Protection Against Interference From Systems In Close Proximity To Each Other

    Information about the individual steps for electrical installation of the device: see "Elec‐ trical installation", page 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 20: Dual-Channel And Isolated Connection Of Ossd1 And Ossd2

    0 V con‐ nections of the loads and those of the corresponding protective device. O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK...

  • Page 21: No Potential Difference Between Load And Protective Device

    (SELV/PELV). Suitable power supply units are available as accessories from SICK, see "Accessories", page 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 22: Restart Interlock

    OSSDs are switched off. O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK...

  • Page 23: Connection Diagrams

    8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 24: Test Rod Check

    O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK...
  • Page 25 The OSSD LED on the receiver lights up red. Enable the light beam. 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 26: Visual Check Of The Machine And The Protective Device

    O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK...

  • Page 27: Mounting

    Please contact your respective SICK subsidiary should you have any complaints. 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 28: Mounting

    Notes on mounting Mount the sender and receiver on a level surface (!). O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK...
  • Page 29 2.5 Nm … 3 Nm ($). Higher torques can damage the bracket, while 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...
  • Page 30 • "Alignment with the FlexFix bracket or with the upgrade bracket", page 43 O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK...

  • Page 31: Mounting The Quickfix Bracket

    A screw nut or threaded hole is required on the machine or profile frame ($). 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 32: Mounting The Flexfix Bracket

    The FlexFix mounting kit (part number 2073543) contains 2 FlexFix brackets, one align‐ ment tool, and the required screws, sliding nuts, and washers. O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK...

  • Page 33: Mount Flexfix Bracket To A Profile Frame

    Use an M5 screw to secure the position of the sender and receiver in the FlexFix bracket. (§) 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 34: Inserting The Multiple Light Beam Safety Device In The Flexfix Brackets

    Use an M5 screw to secure the position of the sender and receiver in the FlexFix bracket. O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK...

  • Page 35: Mounting The Replacement Bracket

    8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 36: Electrical Installation

    • Mounting has been completed correctly. O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK Subject to change without notice...

  • Page 37: System Connection (M12, 5-Pin)

    Figure 22: System connection (male connector, M12, 5-pin) 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 38: System Connection Via Connection Cable (M12, 5-Pin To 8-Pin)

    M2000 multiple light beam safety device with a deTem2 Core multiple light beam safety device, without having to route new cables. O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK...

  • Page 39: Commissioning

    • "Minimum distance from reflective surfaces", page 17 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 40: Overview

    "Indication of the alignment quality", page 44 • "Diagnostic LEDs", page 49 O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK Subject to change without notice...

  • Page 41: Aligning The Sender And Receiver

    8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 42: Alignment With The Quickfix Bracket

    The QuickFix bracket offers you the following adjustment options for aligning the sender and receiver with each other: O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK...

  • Page 43: Alignment With The Flexfix Bracket Or With The Upgrade Bracket

    • Shift vertically • Rotation (± 15°) 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 44: Indication Of The Alignment Quality

    Alignment is insufficient or a light beam is Blue Blue interrupted at least partially. O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK Subject to change without notice...

  • Page 45: Check During Commissioning And Modifications

    Carry out the checks according to the instructions from the manufacturer of the machine and from the operating entity. 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 46: Operation

    Carry out the checks according to the instructions from the manufacturer of the machine and from the operating entity. O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK...

  • Page 47: Maintenance

    Make sure that no dispersive media (e.g., dust, fog, or smoke) are within the calcu‐ lated minimum distance from the light beams. 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 48: Regular Thorough Check

    Carry out the checks according to the instructions from the manufacturer of the machine and from the operating entity. O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK...

  • Page 49: Troubleshooting

    Position of LEDs: see "Sender indicators", page 11 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 50: Fault Indicator On The Sender

    If the fault persists, replace the defective components, "Ordering information", page O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK Subject to change without notice...
  • Page 51 LED off. Ö LED flashes. O LED illuminates. 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 52: Decommissioning

    SICK will be glad to help you dispose of these devices on request. O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK...

  • Page 53: Technical Data

    Direction of movement and axis of the test rod perpendicular to the light beam. 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 54: Technical Data For Sender

    Male connector, M12, 5-pin Length of cable 50 m O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK Subject to change without notice...

  • Page 55: Table Of Weights

    Sender r Receiver Tolerance: ± 50 g 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 56: Dimensional Drawings

    Beam separation, dimension Length (L) S in mm 1072 O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK Subject to change without notice...

  • Page 57: Ordering Information

    1085566 M2C-SA0340HA10 1085567 M2C-EA03400A10 1085569 M2C-SA0430HA10 1085570 M2C-EA04300A10 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 58: Accessories

    40,2 Figure 26: Dimensional drawing of the QuickFix bracket (2066048) O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK Subject to change without notice...

  • Page 59: Mounting Accessories

    Table 19: Weld spark guard ordering information Part Part number Weld spark guard 2069268 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 60: Connectivity

    Ambient operating temperature: Down to −30° C with fixed installation. O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK Subject to change without notice...

  • Page 61: Alignment Aid

    Ambient operating temperature: Down to –30 °C with fixed installation 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 62: Change In Scanning Range Using Deflector Mirrors

    Observe the information on deflector mirrors, particularly on changing the scanning range. O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK Subject to change without notice...

  • Page 63: Device Columns

    Test rod 30 mm 2022602 Test rod holder 2052249 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 64: Annex

    (part number: see the type label entry in the “Ident. no.” field). O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK...

  • Page 65: Note On Specified Standards

    ISO 13849-1 GB/T 16855.1 ISO 13855 GB/T 19876 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 66: Checklist For Initial Commissioning And Commissioning

    O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK...

  • Page 67: List Of Figures

    27. Dimensional drawing of the FlexFix bracket (2066614)..........59 28. Mounting the weld spark guard................. 60 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...

  • Page 68: List Of Tables

    31. Ordering information, test rods..................63 32. Note on specified standards..................65 O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK Subject to change without notice...
  • Page 69 LIST OF TABLES 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...
  • Page 70 LIST OF TABLES O P E R A T I N G I N S T R U C T I O N S | deTem2 Core 8014304/14Q7/2020-04-27 | SICK Subject to change without notice...
  • Page 71 LIST OF TABLES 8014304/14Q7/2020-04-27 | SICK O P E R A T I N G I N S T R U C T I O N S | deTem2 Core Subject to change without notice...
  • Page 72 E-Mail office@sick.com.gr E-Mail info@sick.ru Vietnam Hong Kong Singapore Phone +65 6744 3732 Phone +852 2153 6300 Phone +65 6744 3732 E-Mail sales.gsg@sick.com E-Mail ghk@sick.com.hk E-Mail sales.gsg@sick.com Detailed addresses and further locations at www.sick.com SICK AG | Waldkirch | Germany | www.sick.com...
