- Page 1 END USER INSTRUCTIONS Transmitters: T21-03, T21-04, T21-06, T21-08, T21-10 safe smart strong T 2 1 ED-PN-TX105-EN-v02 Language: English (original)
- Page 2 ©Tele Radio AB Datavägen 21 SE-436 32 Askim Sweden Phone: +46 (0)31 748 54 60...
-
Page 3: Table Of Contents
CHAPTER 1: INTRODUCTION 1.1 About this document 1.2 About T21 transmitters CHAPTER 2: SAFETY 2.1 Warnings & restrictions CHAPTER 3: TECHNICAL DATA 3.1 Transmitter specifications 3.2 Radio frequency band CHAPTER 4: PRODUCT GENERAL DESCRIPTION 4.1 Transmitter front 4.2 Transmitter back 4.3 Top LED status indication CHAPTER 5: ERROR INDICATIONS AND CODE MESSAGES CHAPTER 6: OPERATION 6.1 General information 6.2 Radio mode... -
Page 4: Chapter 1: Introduction
The End user instructions may be withdrawn or revised by Tele Radio AB at any time and without further notice. Corrections and updates will be added to the latest version of the manual. Always download the End user instructions from our website, www.tele-radio.com, for the latest available version. - Page 5 Tele Radio AB products are covered by a warranty against material, construction, or manufacturing faults. See "Chapter 8: Warranty, service, repairs, and maintenance". ED-PN-TX105-EN-v02...
-
Page 6: About This Document
1 .1 A b o u t t h is do c u m en t Before installing or operating the product, read the corresponding documentation carefully. Tele Radio AB's product range is composed of transmitters, receivers, and accessories intended for use together as a system. These End user instructions cover general safety issues, main technical specifications, standard operating instructions and battery information. -
Page 7: About T21 Transmitters
1 .2 A b o u t T 2 1 t ran s m it t ers Tele Radio AB's remote control systems are suitable for a wide variety of applications for e.g. stationary or mobile equipments, hydraulic machines, construction, forestry or agriculture equipments and more. -
Page 8: Chapter 2: Safety
IMPORTANT! Tele Radio AB remote controls are often built into wider applications. These systems should be equipped with: • a wired emergency stop where necessary ... - Page 9 Always follow operating and maintenance instructions as well as all applicable safety procedures and requirements. Do not open the receiver encapsulation unless you are qualified. You must satisfy the age requirements in your country for operating the equipment. ...
- Page 10 Check the encapsulation, foils and cable for damages every day. If you use the product although the encapsulation or foil is damaged, moisture can cause serious damage to the electronics. ED-PN-TX105-EN-v02...
-
Page 11: Chapter 3: Technical Data
CHAP TER 3: TECHNICAL DATA 3 .1 T ran s m it t er s p ec if ic at io n s T21-03 T21-04 T21-06 T21-08 T21-10 Number of buttons 3 x 1-step 4 x 1-step... -
Page 12: Radio Frequency Band
3 .2 Radio f requ en c y b an d For radio systems operating on frequency band 2.4 GHz, the frequency band is divided into 16 channels (11 to 26). Once the channel has been selected on the transmitter, the receiver will automatically detect and switch to the same channel. -
Page 13: Chapter 4: Product General Description

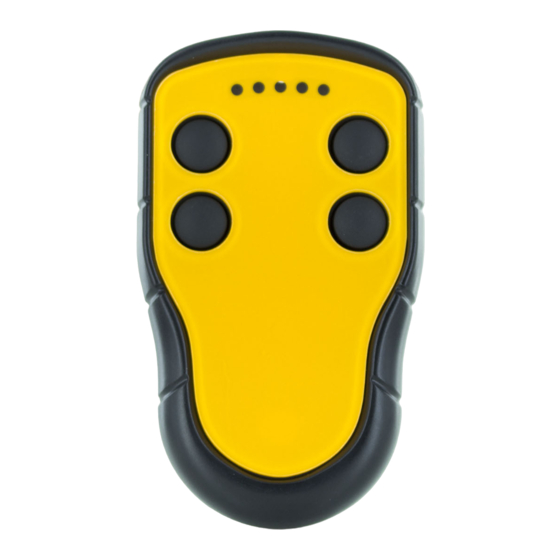

CHAP TER 4: P RO D UCT G ENERAL D ESCRIP TIO N The pictures shown in this chapter are for illustrative purposes only. 4.1 T ran s m it t er f ro n t T21-03 T21-04 T21-06... -
Page 14: Transmitter Back
4.2 T ran s m it t er b ac k 1. I/O switch 2. Clip 3. Product label 4 . 2 . 1 I / O S W I T C H The I/O switch on the back of the transmitter interrupts the power supply from the battery. -
Page 15: Chapter 5: Error Indications And Code Messages
CHAP TER 5: ERRO R IND ICATIO NS AND CO DE M ESSAG ES Each error is identified by a code indicated by a LED combination including the top LED (LED 0) and LEDs 1–4. ˜: LED is lit (red). ™: LED is off ž: LED is blinking green/red. -
Page 16: Chapter 6: Operation
CHAP TER 6 : O P ERATIO N 6.1 G en eral in f o rm at io n 6 . 1 . 1 RE C E I V E RS W I T H L O G I N / L O G O UT F UN C T I O N A C T I V A T E D To control a receiver, the transmitter must be registered and logged in to the receiver. -
Page 17: Radio Mode
6.2 Radio m o de NOTE: To establish a radio link between the transmitter and the receiver, both units must be set to the same radio mode. NOTE: The radio mode cannot be changed from the transmitter. Contact your representative for assistance. -
Page 18: Functionality Test
6.5 F u n c t io n al it y t es t NOTE: This list is intended for use as a support for the manufacturer of the equipment where Tele Radio AB remote control systems are installed. Before operating the radio system, follow the procedure below. -
Page 19: Start The Transmitter In Discontinuous Mode
6.6 S t art t h e t ran s m it t er in dis c o n t in u o u s m o de To control a receiver, the transmitter must be registered in the receiver. If no transmitter is controlling the receiver, the first registered transmitter to be started will automatically take control of the receiver. -
Page 20: Chapter 7: Battery
CHAP TER 7 : BATTERY 7 .1 Bat t ery p rec au t io n s Carefully read the following safety instructions and warnings before using, charging or disposing of the batteries. Batteries contain flammable substances such as lithium or other organic solvents, which may result in overheating, rupture or combustion. - Page 21 7 . 1 . 2 D I S P O S A L When discarding batteries, insulate the + and - terminals of batteries with insulating/ masking tape. Do not place multiple batteries in the same plastic bag. Do not incinerate or dispose of batteries in fire.
-
Page 22: Battery Information
NOTE: Only batteries approved by Tele Radio AB should be used in T21 transmitters. NOTE: When approximately 10 % of the battery capacity remains, the Top LED will light red. -
Page 23: Chapter 8: Warranty, Service, Repairs, And Maintenance
Tele Radio AB products are covered by a warranty against material, construction and manufacturing faults. During the warranty period, Tele Radio AB may replace the product or faulty parts. Work under warranty must be performed by Tele Radio AB or by an authorized service center specified by Tele Radio AB. -
Page 24: Chapter 9: Regulatory Information
T21-03, T21-04, T21-06, T21-08, T21-10 9 . 1 . 1 C E M A RK I N G Hereby, Tele Radio AB, declares that the radio equipment type(s) listed above is/ are in compliance with the Radio Equipment Directive 2014/53/EU. -
Page 25: North America
9.2 No rt h A m eric a Applies to: T21-03, T21-04, T21-06, T21-08, T21-10 9 . 2 . 1 F C C S T A T E M E N T This device complies with part 15 of the FCC Rules. Operation is subject to the... -
Page 26: Aec
9.3 A E C Applies to: T21-03, T21-04, T21-06, T21-08, T21-10 9 . 3 . 1 A E C S T A T E M E N T ( Д Е К Л А Р А Ц И Я Е А С ) This product is declared as compliant within Eurasian Economic Union (EAC). -
Page 27: Annex A: Index
ANNEX A: IND EX AEC Statement Automatic shutdown Battery Battery information Change batteries Battery precautions Handling Storage Dimensions Disposal EIRP FCC statement FCC/IC labels Frequency band Functionality test IC Statement Inactivity timeout IP code Load select mode ED-PN-TX105-EN-v02... - Page 28 Log out Maintenance Number of channels Operating temperature Operating time Power supply Radio communication Radio frequency band 2.4 GHz Frequency channels Radio frequency output power Radio mode Start the transmitter in discontinuous mode Top LED Transmitter back Transmitter front views Warnings &...
- Page 29 Operation WEEE directive Weight ED-PN-TX105-EN-v02...
- Page 30 safe smart strong These End user instructions are subject to change without prior notice. Download the latest End user instructions from www.tele-radio.com .
