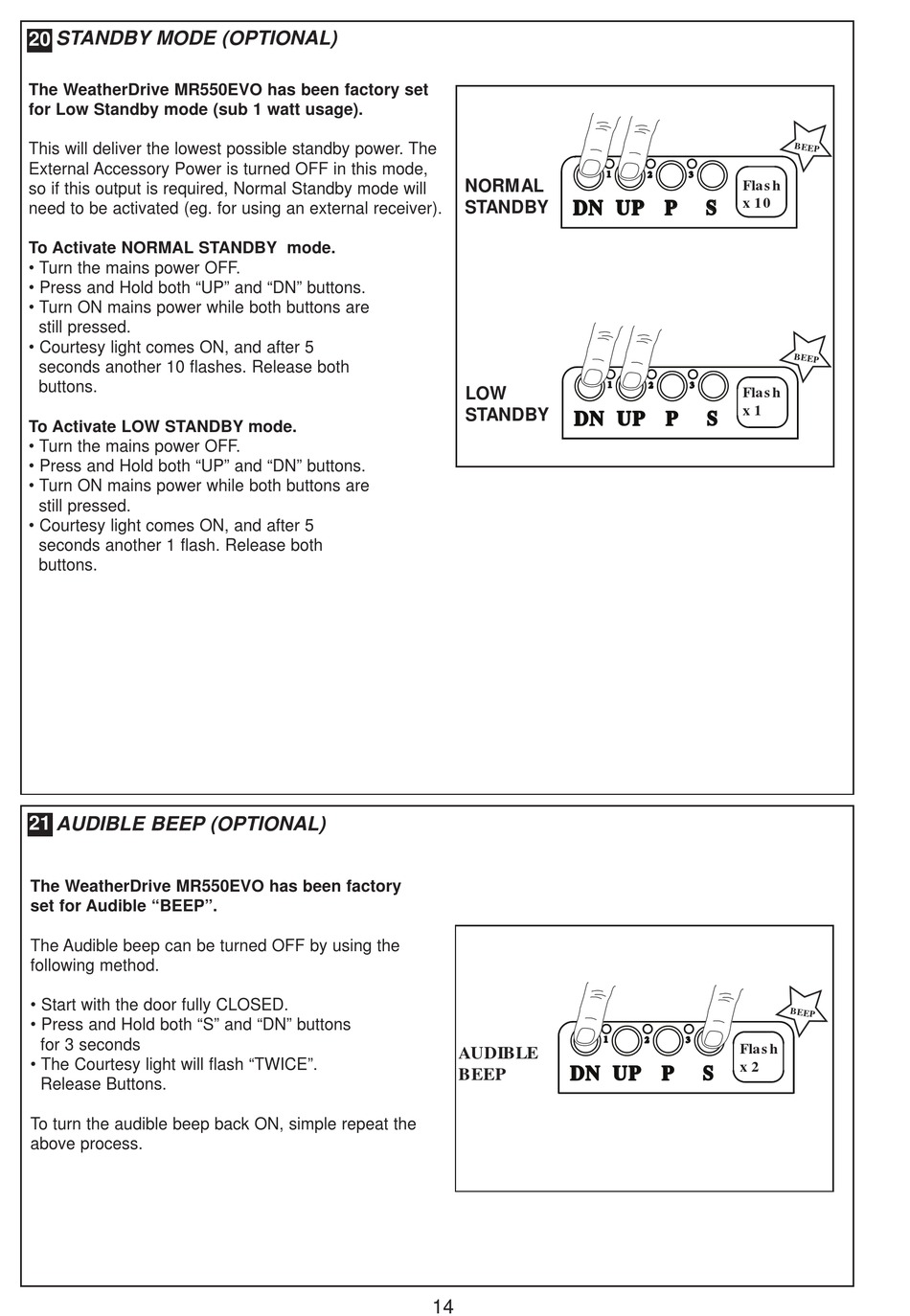

STANDBY MODE (OPTIONAL)
20
The WeatherDrive MR550EVO has been factory set
for Low Standby mode (sub 1 watt usage).
This will deliver the lowest possible standby power. The
External Accessory Power is turned OFF in this mode,
so if this output is required, Normal Standby mode will
need to be activated (eg. for using an external receiver).
To Activate NORMAL STANDBY mode.
• Turn the mains power OFF.
• Press and Hold both "UP" and "DN" buttons.
• Turn ON mains power while both buttons are
still pressed.
• Courtesy light comes ON, and after 5
seconds another 10 flashes. Release both
buttons.
To Activate LOW STANDBY mode.
• Turn the mains power OFF.
• Press and Hold both "UP" and "DN" buttons.
• Turn ON mains power while both buttons are
still pressed.
• Courtesy light comes ON, and after 5
seconds another 1 flash. Release both
buttons.
21
AUDIBLE BEEP (OPTIONAL)
The WeatherDrive MR550EVO has been factory
set for Audible "BEEP".
The Audible beep can be turned OFF by using the
following method.
• Start with the door fully CLOSED.
• Press and Hold both "S" and "DN" buttons
for 3 seconds
• The Courtesy light will flash "TWICE".
Release Buttons.
To turn the audible beep back ON, simple repeat the
above process.
NORMAL DN UP DN
STANDBY
132A2940
LOW
DN UP DN
STANDBY
132A2940
AUDIBLE
DN UP DN
BEEP
132A2940
14
1 1 2 2 3 3
Flash
UP P P S S
x 10
Flash
1 1 2 2 3 3
UP P P S S
x 1
1 1
2 2 3 3 Flash
UP P P S S
x 2
