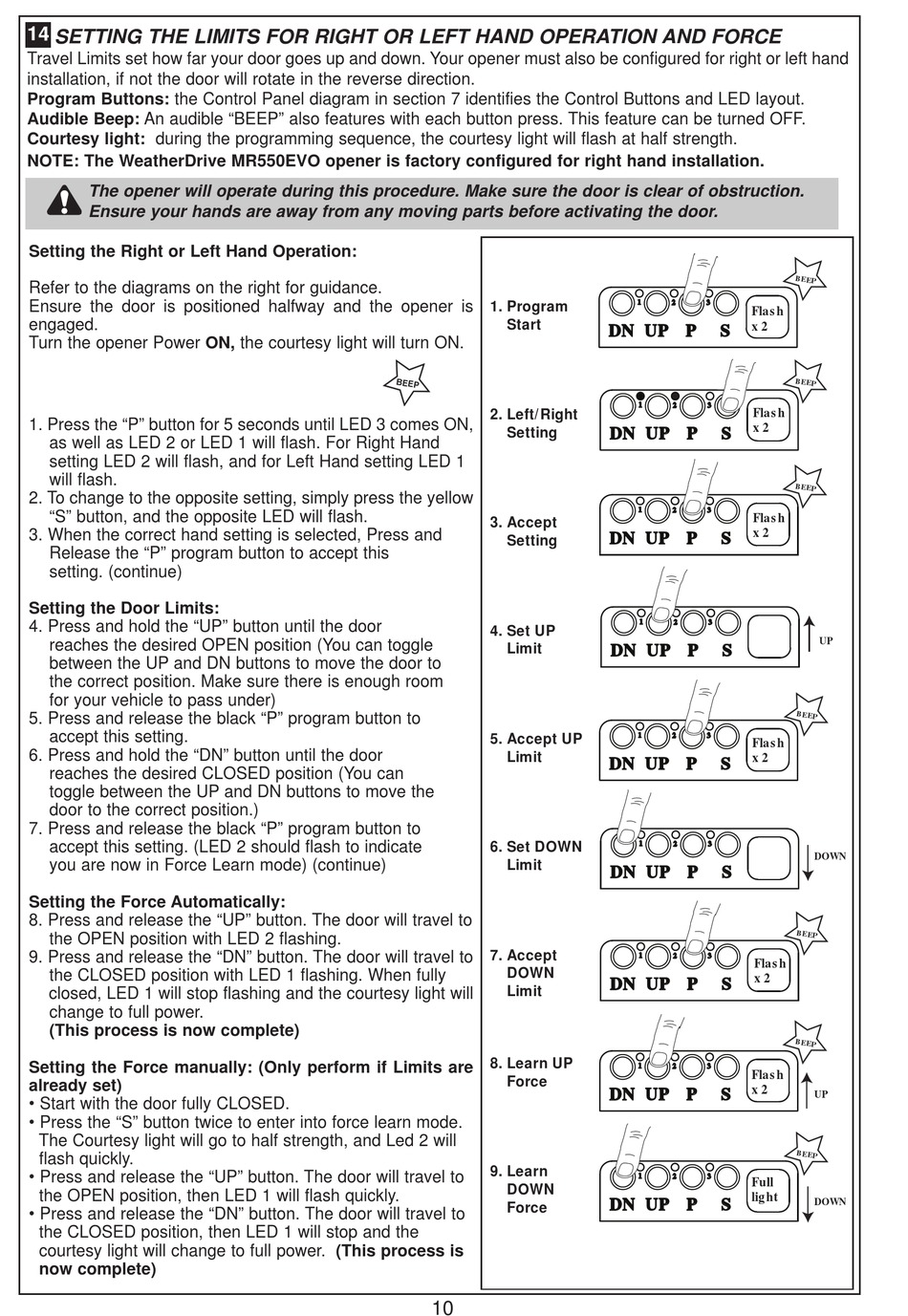

SETTING THE LIMITS FOR RIGHT OR LEFT HAND OPERATION AND FORCE
Travel Limits set how far your door goes up and down. Your opener must also be configured for right or left hand
installation, if not the door will rotate in the reverse direction.
Program Buttons: the Control Panel diagram in section 7 identifies the Control Buttons and LED layout.
Audible Beep: An audible "BEEP" also features with each button press. This feature can be turned OFF.
Courtesy light: during the programming sequence, the courtesy light will flash at half strength.
NOTE: The WeatherDrive MR550EVO opener is factory configured for right hand installation.
The opener will operate during this procedure. Make sure the door is clear of obstruction.
Ensure your hands are away from any moving parts before activating the door.
Setting the Right or Left Hand Operation:
Refer to the diagrams on the right for guidance.
Ensure the door is positioned halfway and the opener is
engaged.
Turn the opener Power ON, the courtesy light will turn ON.
1. Press the "P" button for 5 seconds until LED 3 comes ON,
as well as LED 2 or LED 1 will flash. For Right Hand
setting LED 2 will flash, and for Left Hand setting LED 1
will flash.
2. To change to the opposite setting, simply press the yellow
"S" button, and the opposite LED will flash.
3. When the correct hand setting is selected, Press and
Release the "P" program button to accept this
setting. (continue)
Setting the Door Limits:
4. Press and hold the "UP" button until the door
reaches the desired OPEN position (You can toggle
between the UP and DN buttons to move the door to
the correct position. Make sure there is enough room
for your vehicle to pass under)
5. Press and release the black "P" program button to
accept this setting.
6. Press and hold the "DN" button until the door
reaches the desired CLOSED position (You can
toggle between the UP and DN buttons to move the
door to the correct position.)
7. Press and release the black "P" program button to
accept this setting. (LED 2 should flash to indicate
you are now in Force Learn mode) (continue)
Setting the Force Automatically:
8. Press and release the "UP" button. The door will travel to
the OPEN position with LED 2 flashing.
9. Press and release the "DN" button. The door will travel to
the CLOSED position with LED 1 flashing. When fully
closed, LED 1 will stop flashing and the courtesy light will
change to full power.
(This process is now complete)
Setting the Force manually: (Only perform if Limits are
already set)
• Start with the door fully CLOSED.
• Press the "S" button twice to enter into force learn mode.
The Courtesy light will go to half strength, and Led 2 will
flash quickly.
• Press and release the "UP" button. The door will travel to
the OPEN position, then LED 1 will flash quickly.
• Press and release the "DN" button. The door will travel to
the CLOSED position, then LED 1 will stop and the
courtesy light will change to full power. (This process is
now complete)
1. Program
Start
132A2940
2. Left/Right
Setting
132A2940
3. Accept
Setting
132A2940
4. Set UP
Limit
132A2940
5. Accept UP
Limit
132A2940
6. Set DOWN
Limit
132A2940
7. Accept
DOWN
Limit
132A2940
8. Learn UP
Force
132A2940
9. Learn
DOWN
Force
132A2940
10
1 1 2 2 3 3
Flash
DN DN UP UP P P S S
x 2
1 1 2 2 3 3
Flash
DN UP DN UP P P S S
x 2
1 1 2 2 3 3
Flash
DN UP DN UP P P S S
x 2
1 1
2 2 3 3
DN DN UP UP P P S S
1 1
2 2 3 3 Flash
DN UP DN UP P P S S
x 2
1 1 2 2 3 3
DN DN UP UP P P S S
1 1
2 2 3 3 Flash
DN UP DN UP P P S S
x 2
1 1 2 2 3 3
Flash
DN DN UP UP P P S S
x 2
1 1 Full
2 2 3 3
DN UP DN UP P P S S
light
UP
DOWN
UP
DOWN
