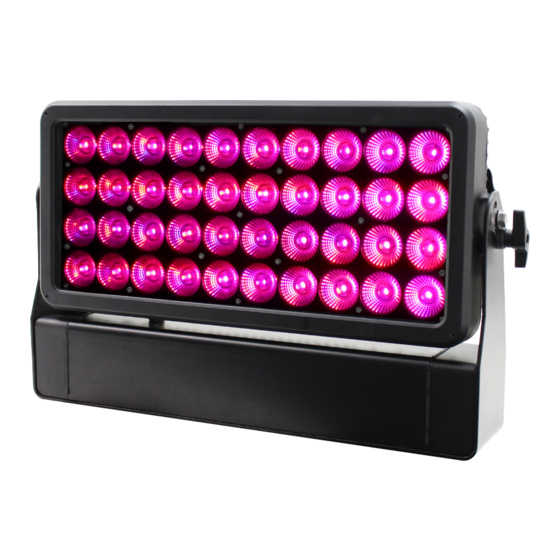

- Page 1 Spectra Flood Q40 Exterior Fixture User Manual Order code: LEDJ284 - 40° Version LEDJ284N - 15° Version...
-
Page 2: Safety Advice
• Always disconnect the power from the mains when product must be installed by a qualified technician in equipment is not in use or before cleaning! Only handle accordance with local territory regulations. The safety of the power-cable by the plug. Never pull out the plug by the installation is the responsibility of the installer. The pulling the power-cable. fixture presents risks of severe injury or death due to fire • Make sure that the available mains supply voltage is hazards, electric shock and falls. between 100~240V AC, 50/60Hz. • Warning! Risk Group 2 LED product according to • Make sure that the power cable is never crimped or EN 62471. Do not view the light output with optical damaged. Check the equipment and the power cable instruments or any device that may concentrate the beam. periodically. • WARRANTY: One year from date of purchase. • If the equipment is dropped or damaged, disconnect the mains power supply immediately and have a qualified engineer inspect the equipment before operating again. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Spectra Flood Q40 User Manual... - Page 3 2730 1750 Specifications Spectra Flood Q40 76600 19100 8505 4790 3060 17400 4340 1930 1090 Power consumption 410W 117000 29300 13000 7310 4680 Power supply 100~240V, 50/60Hz Dimensions 340 x 540 x 190mm 15° Weight 12kg Order codes LEDJ284 - 40° Version LEDJ284N - 15° Version 540mm 190mm www.prolight.co.uk Spectra Flood Q40 User Manual...
-
Page 4: Technical Specifications
Technical specifications 01 - Bracket tightening knobs 08 - IP rated 3-Pin XLR - Neutrik HD trailing output 02 - LCD display 09 - Fans 03 - Function buttons 04 - Wireless DMX antenna In the box: 1 x fixture, 05 - PowerCON TRUE1 input 1 x power cable & 06 - PowerCON TRUE1 output 1 x user manual 07 - IP rated 3-Pin XLR - Neutrik HD trailing input Underside mounting points: www.prolight.co.uk Spectra Flood Q40 User Manual... -
Page 5: Operating Instructions
Flash [00-99] Program Show Built-in Programs Speed [001-100] 02-14 Flash [00-99] Linear Square Law Curves Inv Square Law Curve Setting Dimming Curves Setting S-Curve Fast Dimmer Speed Smooth Settings Backlight-T Backlight Time Backlight-L 01-10 Backlight Brightness Factory Reset Factory Reset DMX Fail DMX Signal Failure Setting Hold Temperature Fixture Temperature Information Software Software Version www.prolight.co.uk Spectra Flood Q40 User Manual... - Page 6 The green LED will go off to confirm W-DMX has been disabled. To exit out of any of the above options, press the “MENU” button. 4 channel mode: 6 channel mode: Channel Value Function Channel Value Function 000-255 Red (0-100%) 000-255 Master dimmer (0-100%) 000-255 Green (0-100%) 000-255 Red (0-100%) 000-255 Blue (0-100%) 000-255 Green (0-100%) 000-255 White (0-100%) 000-255 Blue (0-100%) 000-255 White (0-100%) 000-255 Strobe (slow-fast) www.prolight.co.uk Spectra Flood Q40 User Manual...
- Page 7 137-142 Full CT Blue 143-148 State Blue 149-154 Double CT Blue 155-160 Medium Blue 161-166 Just Blue 167-172 Deep Blue 173-178 Blue 179-184 Congo Blue 185-190 Surprise Pink 191-196 Fuchsuia Pink 197-202 Follies Pink 203-208 Special Rose Pink 209-214 Pink 215-220 Moroccan Pink 221-226 Warm White 227-232 Cold White 233-255 White www.prolight.co.uk Spectra Flood Q40 User Manual...
- Page 8 076-094 Program 5 095-113 Program 6 114-132 Program 7 Master Red Green Blue White Strobe 133-151 dimmer Program 8 Speed (slow-fast) (0-255) (0-255) (0-255) (0-255) (0-255) (0-255) 152-170 Program 9 171-189 Program 10 190-208 Program 11 209-227 Program 12 228-246 Program 13 247-255 Program 14 www.prolight.co.uk Spectra Flood Q40 User Manual...
-
Page 9: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Spectra Flood Q40 User Manual... - Page 10 5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Spectra Flood Q40 User Manual...
-
